PHONE
SPECIAL
EDITION
FP104
Operating Guide
Loud Adjustable
Earpiece Volume
FP104

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FP104 and is the answer not in the manual?

Questions and answers

Related Manuals for Uniden FP104

Summary of Contents for Uniden FP104

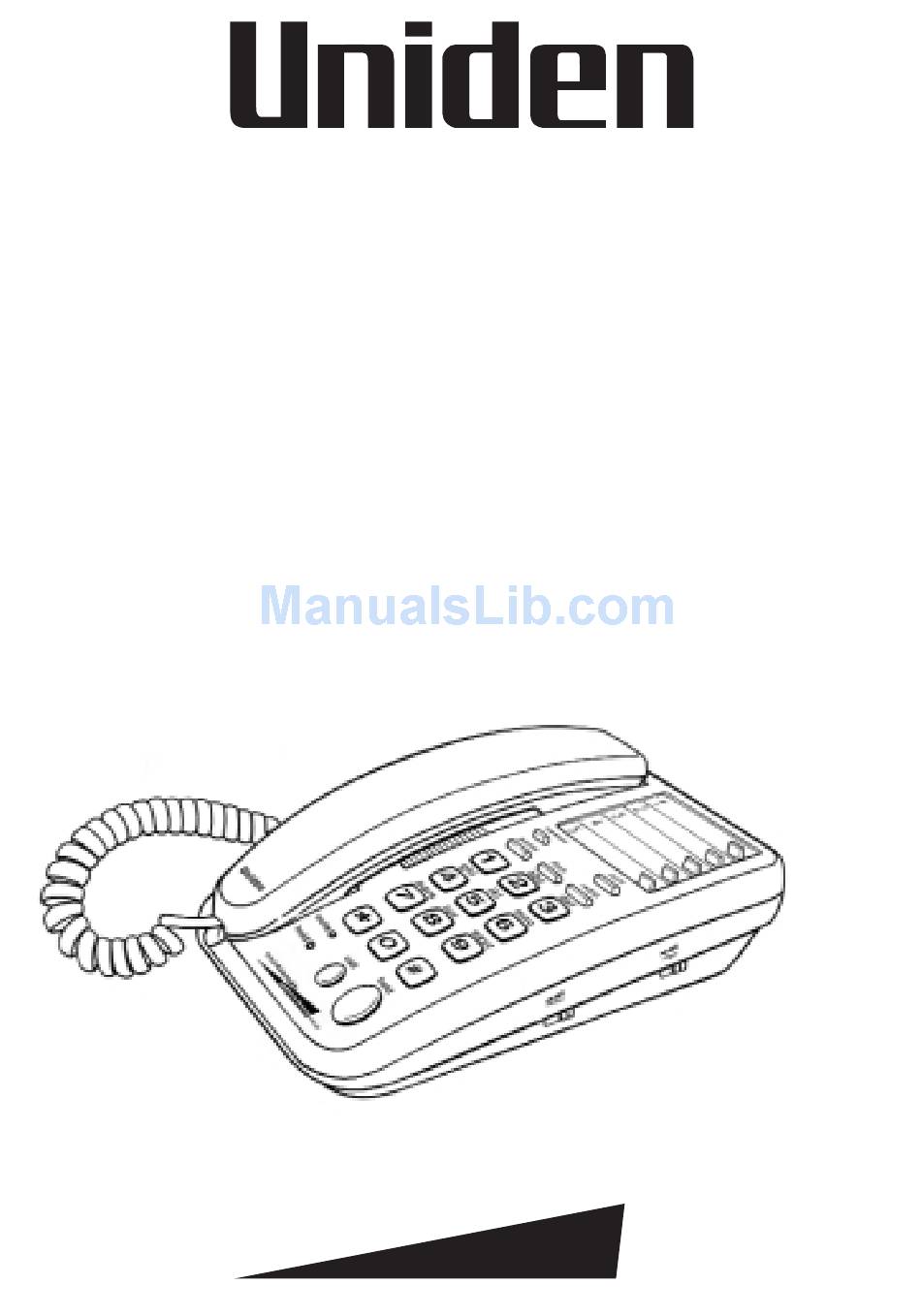

  • Page 1 PHONE SPECIAL EDITION FP104 Operating Guide Loud Adjustable Earpiece Volume FP104...

  • Page 3: Table Of Contents

    CONTENTS Precautions Important Safety Instructions ..1 Caring for Your Telephone ..1 Important Notes ....2 Introduction Welcome .

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, these basic safety precautions should always be followed to reduced the risk of fire, electrical shock, and injury to persons: 1. Read and understand all instructions. 2. Do not use the telephone during an electrical storm to reduce the risk of electric shock.

  • Page 5: Important Notes

    CARING FOR YOUR TELEPHONE • Clean your telephone using a soft damp cloth. • Do Not use solvents, detergents, sprays, abrasive pads, scouring powder or other products that may damage your telephone. • Do Not place the telephone in direct sunlight. •...

  • Page 6: Welcome

    WELCOME Congratulations on the purchase of your Uniden FP104 Telephone. The FP104 has been designed and engineered to exacting standards for reliability, long life and outstanding performance. To obtain the full benefit from your new telephone, please read this Operating Guide thoroughly. For your future reference, please fill in the panel below and attach your Purchase Receipt/Sales docket.

  • Page 7: Included In Your Package

    INCLUDED IN YOUR PACKAGE To get the most from your phone, please read this owner’s manual Base Unit Handset thoroughly. Be sure to complete and mail the product registration form. Telephone Line Cord Curly Cord Plug included in Australian models only) If any of these items are missing or damaged, contact...

  • Page 8: Installation

    INSTALLATION 1. Plug one end of the Handset Cord (curly) into the Handset and the other end into the jack on the side of the telephone. 2. Plug one end of the line cord (straight) into the telephone line jack on the back of the telephone and the other end into the wall outlet.

  • Page 9: Wall Mounting

    WALL MOUNTING You can mount your phone directly on a wall. Before mounting your phone, consider the following: • Select a location away from electrical cables, pipes or other items Be careful not to insert the mounting behind the mounting location that could cause a hazard when screws inserting screws into the wall.

  • Page 10: Controls And Functions

    CONTROLS & FUNCTIONS Ring Tone Selector Telephone Line Jack Flash On-Hook/ Button 5 One-Touch Off-Hook Switch Memories Memory Button Handset Retainer Mute Pause Button Button Redial Mute Button Indicator Ringer Volume Control Handset Volume Control Hold Indicator KEYPAD Ring/Incoming Hold Button Call Indicator...

  • Page 11: Using Your Fp104

    USING YOUR FP104 Adjusting the ringer volume While the phone is ringing, you can adjust the ringer volume of your telephone by moving the ringer switch to the desired low/medium/high position. Adjusting the ringer tone While the phone is ringing, you can adjust the Ringer Tone of your telephone by moving the tone switch to the desired tone.

  • Page 12: Placing A Telephone Call

    PLACING A TELEPHONE CALL 1. Lift the handset from the Base. 2. Press the keypad buttons to dial the phone number you want. 3. After you have completed the phone call, place the Handset back on the Base. RECEIVING A TELEPHONE CALL When the phone rings, pickup the Handset from the Base and begin the conversation.

  • Page 13: Placing A Call On Mute

    PLACING A CALL ON MUTE Press and hold down button to turn off mute the Handset microphone, allowing private and confidential conversations in the same room without the calling party hearing. The Mute LED lights up each time Mute is on. Release Mute again to resume the conversation memory mute...

  • Page 14: Storing One-Touch Memories

    Storing One-Touch Memories To program One-Touch Memories (1-5). 1. Pickup the Handset. 2. Press button. memory 3. Enter telephone number that you want to program. memory mute 4. Press the button. memory pause flash redial 5. Press the desired speed dial button (1-5).

  • Page 15: Troubleshooting

    (point facing up) and the Handset is the wall mount placed firmly into the Base. position. If you are still unable to resolve the problems, contact Uniden Customer Service for assistance. Australia: 1800 632 789 New Zealand:...

  • Page 16: Specifications

    SPECIFICATIONS FOR AUSTRALIAN MODEL Compliance TS001, TS002, TS004, AS/NZS3548, TS008 Size: 150mm (W) x 225mm(D) x 70mm(H) Weight: Approx. 536g Specifications, Features and availability of Optional Accessories shown are typical and subject to change without notice. SPECIFICATIONS FOR NEW ZEALAND MODEL Compliance PTC200 Size:...

  • Page 17: Warranty

    Uniden New Zealand Limited ELEMENTS OF WARRANTY: Uniden warrants to the original retail owner for the duration of this warranty its FP104 (here in after referred to as the Product), to be free from defects in materials and craftsmanship with only the limitations or exclusions set out below.
  • Page 20 A Clear Signal of What’s Ahead © 1999 Uniden Australia Pty Limited © 1999 Uniden New Zealand Limited...
