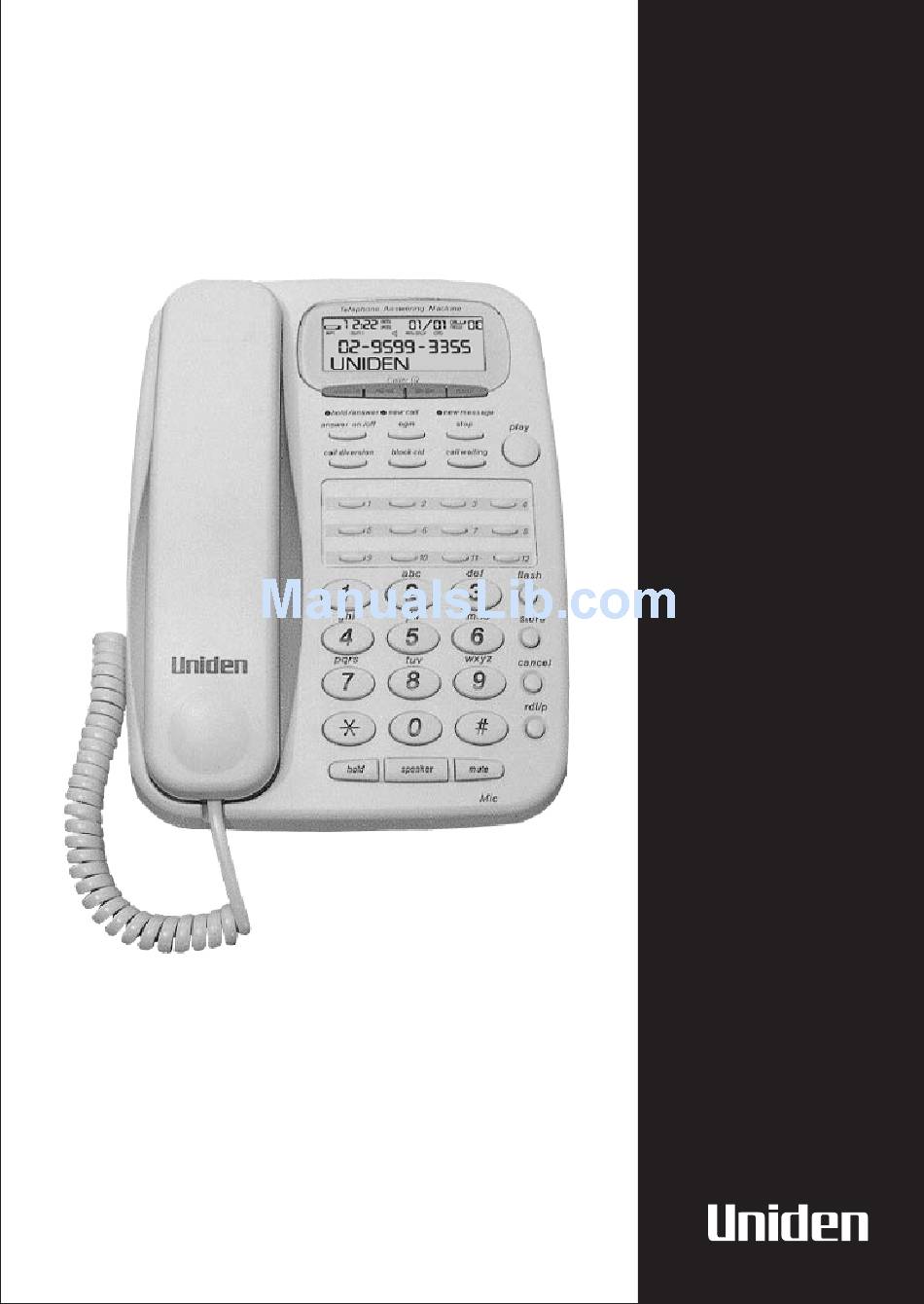

- Page 1 OWNER’S MANUAL Digital Answer Machine Caller ID Speaker Phone...
-
Page 2: Controls And Functions
CONTROLS & FUNCTIONS Answer Phone Base Unit LCD Screen Delete Hold / Answer LED New Call LED New Message LED Answer on/off Out Going Message (OGM) Stop Handset Alpha Numeric Keypad Dial Telephone Answering Machine call# OGM 1 ANS ON Caller ID delete dial... - Page 3 LCD Screen Telephone Answering Machine 1 2:22 OGM 1 02-9599-3355 UNIDEN Caller ID delete Base Unit - right side normal handset volume speaker volume Base Unit - left side Base Unit - rear telephone line ringer ringer power select volume...
-
Page 4: Table Of Contents
CONTENTS Controls and Functions Contents Quick Start Guide Introduction Features Installation / Safety Supplied with Your FP107 Wall Installation Adjusting the Ringer Volume and Tone Setting the Clock Telephone Operation Making a Call Answering an Incoming Call Using Flash Using Hold Using Mute Memory Dialling Storing a Number in Memory... -
Page 5: Quick Start Guide
This page is a very condensed version of the Owners Manual. It is designed to allow you to get your phone installed and operating as quickly as possible - however it does not attempt to explain any of the advanced features of the FP107 . Start Here! Quick Start Guide... -
Page 6: Backup Battery
Installing the Backup Battery Use a small Phillips screwdriver to remove the two screws on the battery compartment cover located under the base. Remove the cover. Plug the battery contacts in place and lay the battery in the battery compartment. Replace the cover and secure with the screws. -
Page 7: Introduction
FEATURES 12 Number Memory Dialling Speakerphone Flash Mute Hold ANSWER MACHINE FEATURES Recordable Outgoing Message Voice/Date/Time Stamp Adjustable Ring Number Toll-Saver Phone Pick-Up Detection CALLER ID FEATURES 3-Line Display Caller ID Memory Call Summary Name Tagging INSTALLATION & SAFETY AVOID - DON’T - moisture overload the... -
Page 8: Supplied With Your Fp107
SUPPLIED WITH YOUR FP107 NOTE To get the most from your purchase, please read the Owners Manual thoroughly. Also be sure to complete the Customer Support Card. NOTE If any of these items are missing or damaged, contact the place of purchase. -
Page 9: Wall Installation
WALL INSTALLATION Wall Mounting If required, you can mount your phone directly on a wall. Before mounting your phone, please consider the following: Select a location away from electrical cables, pipes or other items behind the mounting location that could cause a hazard when inserting screws into the wall. Make sure the wall material is capable of supporting the weight of the telephone. -
Page 10: Adjusting The Ringer Volume And Tone
ADJUSTING THE RINGER VOLUME AND TONE Ringer volume control Locate the volume control switch at the rear of the base. Slide the ringer volume switch to the desired off/lo/hi setting. VOLUME CONTROL Handset volume control While using the phone you can adjust the handset volume with the control, located at the side of the base. -
Page 11: Telephone Operation
TELEPHONE OPERATION Making a Call To make a call with the handset, pick up the handset. When you hear the dial tone, dial the phone number, DIALLING is displayed. You will see the number as you dial, then (after 8 seconds) the elapsed time of your call. Press Dial the phone number, DIALING is briefly displayed, followed by the number as you dial, then (after 8 seconds) the elapsed time is displayed. -
Page 12: Using Flash
Using Flash NOTE Transfer on a business PBX. If you do not have special phone services, from your Using Hold telephone company or To put a caller on hold, press hold/answer indicator flashes. You can now hang up the handset without disconnecting PBX, pressing flash the call. -
Page 13: Memory Dialling
MEMORY DIALLING You can store up to 12 numbers in memory and dial any stored number by pressing one key. NOTE Storing a Number in Memory You must complete each There are 12 memory location buttons. step within 8 seconds. 1. -
Page 14: Entering A Pause In A Memory Number
Entering a Pause in a Memory Number The pause feature is useful for long distance calling or for access codes that require a pause between digits. NOTE When storing a number in memory, press Each pause entry uses one (pause) is displayed. For a long pause, press digit of memory. -
Page 15: Chain Dialling
Chain-Dialling For quick recall of numbers for special services, you can store each group of numbers in its own memory location. Then, when calling special services, dial the service's main number first. At the appropriate place in the call, press the memory location button for the additional numbers you want to send. -
Page 16: Telephone Answer Device
call diversion To Cancel ‘Call Diversion’ 1. Pick up the handset 2. Press NOTE Recording Outgoing Messages The maximum length for Before the FP107 can answer calls and record messages, you must record an outgoing outgoing message is 60 message (OGM). seconds. -
Page 17: Checking Te Outgoing Message
Checking the Outgoing Message To check an outgoing message, press NOTE plays. If no outgoing message is recorded when you press OGM1, the FP107 announces If the FP107 Answer “You have no announcement one” and sounds four beeps. Machine is off, after 15 rings it will automatically Number of Rings switch on and answer the... -
Page 18: Caller Id Operation
CALLER ID OPERATION If you subscribe to Caller ID service from your phone company, the phone automatically displays the information the phone company sends between the first and second rings of every call you receive. It stores up to 86 numbers only or name and number call records in its Caller ID memory. -
Page 19: Reviewing Caller Id Records
REVIEWING CALLER ID RECORDS Each time you receive a call, the FP107 stores a Caller ID record that you can review later, even during a call. NOTE A Caller ID record includes: The FP107 returns to the • Call number time/date display after 8 •... -
Page 20: Fp107 Operation
FP107 OPERATION Playing Messages The FP107's message window shows the total number of messages, both old and new. If there are new messages, the new message LED flashes. To play all messages, press To adjust the FP107’s volume, slide the speaker volume min/max on the right side of the phone. -
Page 21: Advanced Features
ADVANCED FEATURES Setting the Display Contrast 1. Hold down NOTE 5 flashes. 2. Repeatedly press The FP107 has ten (0–9) display contrast settings. 3. Press Using Call Breakthrough If you screen your calls but want to know when calls come in from certain people, give them your Call Breakthrough (CBT) Code. -
Page 22: Remote Command List
REMOTE COMMAND LIST Press After pressing 21, 22, 31, or 32 to play Caller ID records/messages remotely, you can Press Set the FP107 to not answer calls. Set the FP107 to answer calls. Play all messages. Announce all Caller ID records. Play new messages. -
Page 23: Troubleshooting
QUICK REFERENCE CHART If your phone is not performing to your expectations, please try these simple steps first before calling Uniden customer service - PROBLEM Check that the phone line cord connectors at both ends No dial tone are pushed in until they click. -
Page 24: Warranty
(D) Repaired by someone other than an authorised Uniden Repair Agent for a defect or malfunction covered by this warranty, (E) Used in conjunction with any equipment or parts or as part of a system not manufactured by Uniden. (F) Only available in the original country of sale. - Page 25 NOTES...
- Page 26 NOTES...
- Page 27 NOTES...
- Page 28 © 2001 Uniden Australia Pty Limited Uniden New Zealand Limited...
