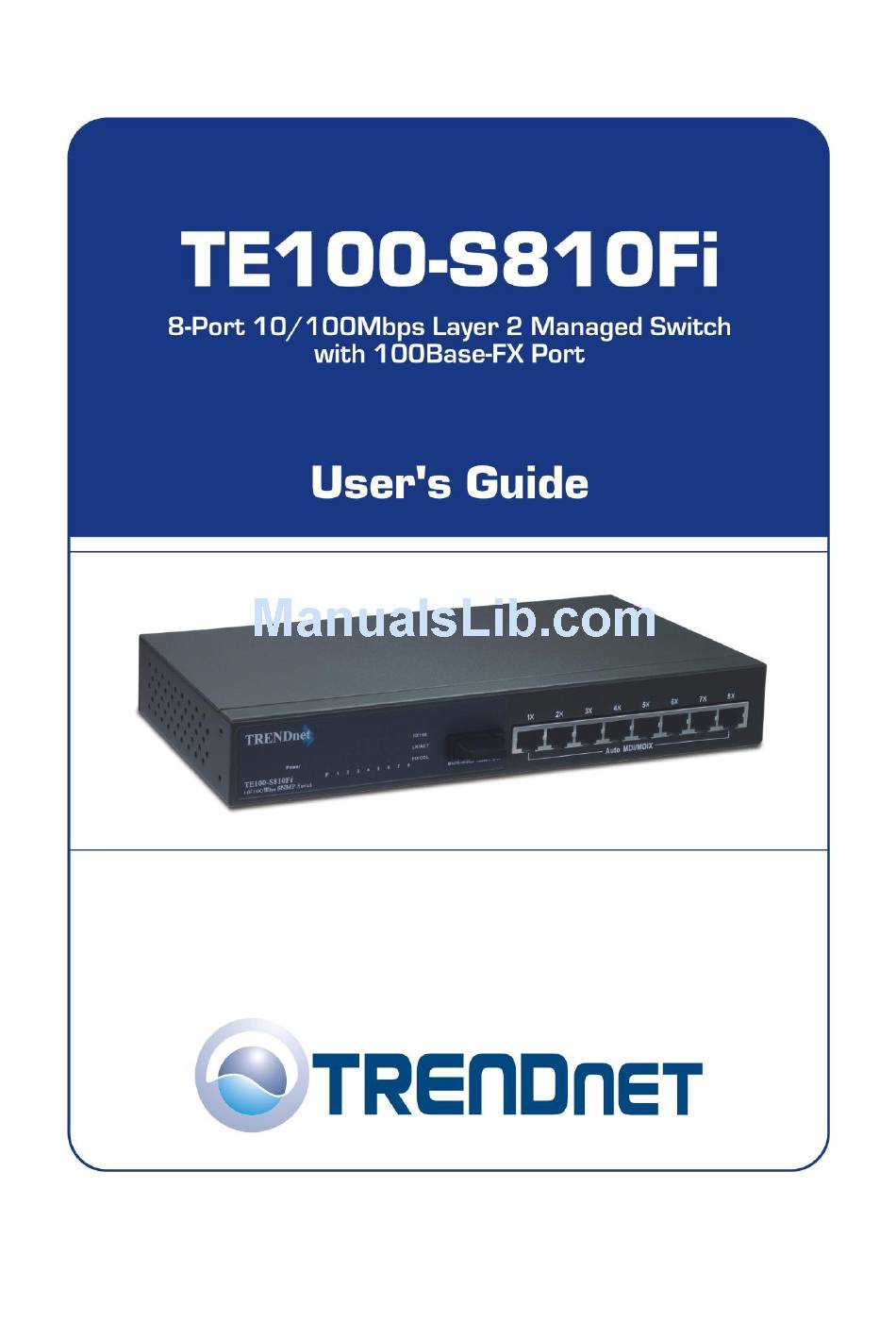

TRENDnet TE100-S810Fi User Manual

TRENDnet TE100-S810Fi User Manual

8-port 10/100 mbps layer 2 masnaged switch with 100base-fx port
Hide thumbs Also See for TE100-S810Fi:
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TE100-S810Fi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRENDnet TE100-S810Fi

Summary of Contents for TRENDnet TE100-S810Fi

  • Page 2 Introduction In the modern society, communication and sharing information is essential to our lifestyle. Computer networks have proven to be one of the fastest methods of communication. The 8-port Management Switch series are compact desktop size switches which are ideal solutions for SOHO (Small Office or Home Office) network user.
  • Page 3 However, the fiber port can be used to connect to a remote side up to 2 Kilometers (multi-mode fiber) or 15~60 kilometers (SC single- mode fiber) away. With their build-in Web-based Management, managing and configuring the TE100-S810Fi becomes easier. From cabinet management to port-level control and monitoring, you can visually configure and manage your network via Web Browser.

  • Page 4: Intelligent Management Features

    Intelligent Management Features  Web-based management  SNMP network management  Console and Telnet management  Port Base VLAN and IEEE 802.1q Tag VLAN, and VLAN group up to 256 , VLAN ID up to 4095.  IEEE 802.3 ad LACP, Trunk group up to 4 and members up to 8 port (8 10/100TX plus one uplink port model).

  • Page 5: Package Contents

    Package Contents Unpack the contents of the TE100-S810Fi and verify them against the checklist below.  TE100-S810Fi  Power Cord  Four Rubber Feet  RS-232 cable  User Guide TE100-S810Fi Power Cord Rubber Feet RS-232 cable Figure 1-2. Package Contents Compare the contents of your TE100-S810Fi package with the standard checklist above.

  • Page 6: Management Methods

    Management Methods The TE100-S810Fi series supports following management methods:  Console and Telnet Management  Web-based Management  SNMP Network Management Console and Telnet Management Console Management is done through the RS-232 Console Port. Managing the TE100-S810Fi in this method requires a direct connection between PC and the TE100-S810Fi.

  • Page 7: Hardware Description

    Hardware Description This section mainly describes the hardware of the TE100-S810Fi series. The Switches is a compact switch ( 10 inches ) with 8x auto-sensing 10/100Mbps Ethernet RJ-45 ports ( 8TP Management Switch ) plus one 100Base-FX fiber port (TE100-S810Fi ). The physical dimensions of the TE100-S810Fi are: 250mmx 132mmx 37mm ( Lx Wx H ) Front Panel...

  • Page 8: Led Indicators

    Figure 2-2. The Front Panel of the TE100-S810Fi  RJ-45 Ports (Auto MDI/MDIX ): Eight 10/100 auto- sensing for 10Base-T or 100Base-TX connections. [ In general, MDI means connecting to another Hub or Switch while MDIX means connecting to a workstation or PC. Therefore, Auto MDI/MDIX means that you can connect to another Switch or workstation without changing non-crossover or crossover cabling.

  • Page 9: Rear Panel

    LED Status Color Description Power Green Power On The port is operating at the speed of Green 100Mbps. 100M In 10Mbps mode or no device attached The port is successfully connecting Green with the device. LNK / The port is receiving or transmitting Blinks Green data.

  • Page 10: Desktop Installation

    Console Port : Console management can be done through the Console Port. It requires a direct connection between the Switch and an end station ( PC ) via a RS-232 cable. Desktop Installation Set the switch on a sufficiently large flat space with a power outlet nearby.
  • Page 11 Power On Connect the power cord to the power socket on the rear panel of the Switch. The other side of power cord connects to the power outlet. The internal power supply in the Switch works with AC in the voltage range 100-240VAC, frequency 50~60Hz.

  • Page 12: Network Application

    Network Application This section provides you a few samples of network topology in which the Switch is used. In general, the TE100-S810Fi series are designed to be used as a desktop or segment switch. Desktop Application The TE100-S810Fi series are designed to be a desktop size switch which is an ideal solution for small workgroup.

  • Page 13: Segment Application

    Segment Application For enterprise networks where large data broadcast are constantly processed, this switch is suitable for department user to connect to the corporate backbone. Figure 3-2 Segment Application You can use the TE100-S810Fi to connect PCs, workstations, and servers to each other by connecting these devices directly to the Switch.
  • Page 14 Figure 3-3 Use fiber port (TE100-S810Fi ) to extend the distance between workgroups In the above illustration, two TE100-S810Fi are used to interconnect two small workgroups. By using fiber ports to connect switches, the distance between two switches via fiber cable can be up to 2km.

  • Page 15: Network Configuration

    Network Configuration This Section explains how to configure console management via a direct connection to the console port of the TE100-S810Fi. Console management involves the administration of the Switch via a direct connection to the RS-232 console port. This port is a female DB-9 connector.

  • Page 16: Console - Menu

    After the connection between Switch and PC is finished, turn on the PC and run a terminal emulation program or Hyper Terminal to match the following default characteristics of the console port: Baud Rate: 9600 bps Data Bits: 8 Parity: none Stop Bit: 1 Control flow: None Figure 4-2.

  • Page 17: Main Menu

    4-1 Main Menu There are five items for selected as follows: Status and Counters: Show the status of the switch. Switch Static Configuration : Configure the switch. Protocol Related Configuration: Configure the protocol function. Reboot Switch: Restart the system or reset switch to default configuration.

  • Page 18: Status And Counters

    4-2. Status and Counters You can press the key of Tab or Backspace to choose item, and press Enter key to select item. 4-2-1. Port Status This page display every port status Type: Display the port type. Enabled: Display the port is enabled or disable depended on user setting. Enable will be display “Yes”, disable will be display “No”.

  • Page 19: Port Counters

    Actions-> You can press the key of Tab or Backspace to choose action menu, and press Enter key to select item <Quit>: Exit the page of port status, and return to previous menu. <Previous Page>: Display previous page. <Next page>: Display next page. 4-2-2.

  • Page 20: System Information

    Actions-> You can press the key of Tab or Backspace to choose action menu, and press Enter key to select item <Quit>: Exit the page of port status, and return to previous menu. <Reset All>: Set all count to 0. <Previous Page>: Display previous page.

  • Page 21: Switch Static Configuration

    4-3. Switch Static Configuration You can press the key of Tab or Backspace to choose item, and press Enter key to select item...

  • Page 22: Administration Configuration

    4-3-1. Administration Configuration 4-3-1-1. Device Information This page provide user to configure the device information. Actions-> <Edit>: Configure all items. Finished configure press BackSpace to go back action menu line. <Save>: Save all configure value. <Quit>: Exit the page of device information and return to previous menu.

  • Page 23: Change Username

    4-3-1-2. IP Configuration User can configure the IP setting and fill in the new value. Actions-> <Edit>: Configure all items. Finished configure press ESC to go back action menu line. <Save>: Save all configure value. <Quit>: Exit the page of IP configuration and return to previous menu. Note: Always restart the computer after finishing the setup.
  • Page 24 4-3-1-4. Change Password Use this page; user can change web management user password.

  • Page 25: Port / Trunk Configuration

    4-3-2. Port / Trunk Configuration This page can change every port status and configure trunk group. Press TAB key to change configure of per item. 1.Enabled: User can disable or enable this port control. 2.Auto Negotiate: User can set auto negotiation is enable or disable of per port.

  • Page 26: Port Mirroring Configuration

    <Next page>: Go to next page to configure. 4-3-3. Port Mirroring Configuration The port mirroring is a method for monitor traffic in switched networks. Traffic through ports can be monitored by one specific port. That is traffic goes in or out monitored ports will be duplicated into monitoring port. Press Space key to change configure of per item.

  • Page 27: Vlan Configuration

    4-3-4. VLAN Configuration 4-3-4-1. VLAN Configure 1.PVID (Port VID): Set the port VLAN ID that will be assigned to untagged traffic on a given port. This feature is useful for accommodating devices that you want to participate in the VLAN but that don’t support tagging. Only one untagged VLAN is allowed per port.

  • Page 28: Create A Vlan Group

    4-3-4-2. Create a VLAN Group Create a VLAN and add tagged /untagged member ports to it. 1.VLAN Name: Type a name for the new VLAN. 2.VLAN ID: Type a VID (between 2~4094). The default is 1. 3.Protocol VLAN: Press Space key to choose protocols type. 4.Mode: Press Space key to choose VLAN member.

  • Page 29: Edit / Delete A Vlan Group

    Actions-> <Quit>: Exit this page and return to previous menu. <Edit>: Configure all items. Finished configure press ESC to go back action menu line. <Save>: Save all configure value. <Previous Page>: Return to previous page to configure. <Next page>: Go to next page to configure. 4-3-4-3.

  • Page 30: Priority Configuration

    4-3-5. Priority Configuration 1.There are 0~7 priority level can map to high or low queue. 2.High/Low Queue Service Ration H:L : User can select the ratio of high priority packets and low priority packets. Actions-> <Edit>: Configure all items. Finished configure press ESC to go back action menu line.

  • Page 31: Mac Address Configuration

    4-3-6.MAC Address Configuration 4-3-6-1.Static MAC Address When you add a static MAC address, it remains in the switch's address table, regardless of whether the device is physically connected to the switch. This saves the switch from having to re-learn a device's MAC address when the disconnected or powered-off device is active on the network again.

  • Page 32: Filtering Mac Address

    Add static MAC address 1.Press <Add> --> <Edit> key to add a static MAC address. 2.Enter the MAC address to and from which the port should permanently forward traffic, regardless of the device’s network activity. 3.In the Port num item, enter the port number. 4.If tag-based(802.1Q) VLAN are set up on the switch, static addresses are associated with individual VLANs.

  • Page 33: Misc Configuration

    Edit Filtering MAC address 1.Press <Edit> key to modify a static Filtering address. 2.Choose the MAC address that you want to modify and then press enter. 3.Press <Edit> key to modify all the items. 4.Press ESC to go back action menu line, and then select <Save> to save all configure value.

  • Page 34: Mac Age Interval

    1.Press <Edit> to enable or disable the port security. 2.Press Space key to choose enable / disable item. 3.Press ESC to go back action menu line, and then select <Save> to save all configure value. 4-3-7-2.MAC Age Interval Type the number of seconds that an inactive MAC address remains in the switch’s address table.

  • Page 35: Broadcast Storm Filtering

    Actions-> <Edit>: Configure all items. Finished configure press ESC to go back action menu line. <Save>: Save all configure value. <Quit>: Exit this page and return to previous menu. 4-3-7-3.Broadcast Storm Filtering This page is configuring broadcast storm control, press <Edit> to configure the broadcast storm filter mode.

  • Page 36: Max Bridge Transmit Delay Bound

    <Quit>: Exit this page and return to previous menu. 4-3-7-4.Max bridge transmit delay bound Max bridge transmit delay bound: Limit the packets queuing time in switch. If enable, the packets queued exceed will be drop. Press Space key to set the time. This valid value are 1sec, 2sec, 4sec and off. Default is 1 seconds.

  • Page 37: Protocol Related Configuration

    <Quit>: Exit this page and return to previous menu. 4-4.Protocol Related Configuration 4-4-1.STP 4-4-1-1.STP Enable This page is enable or disable Spanning Tree function. Press Space key to select enable or disable.

  • Page 38: System Configuration

    4-4-1-2.System Configuration 1.You can view spanning tree information about the Root Bridge on the left. 2.On the right, user can setting new value for STP parameter. 4-4-1-3.Perport Configuration...
  • Page 39 1.PortState: You can view spanning tree status about the switch for per port. 2.PathCost: Specifies the path cost of the port that switch uses to determine which port are the forwarding ports. If you change the value, you need to restart the switch for valid value. 3.Priority: This is mean port priority, you can make it more or less likely to become the root port.

  • Page 40: System Options

    4-4-2-1.System Options Press <Edit> to enter all items, and then press <Save> to save configure value. 1.System Name: Type a name to be used for the switch. 2.System Contact: Type the name of contact person or organization. 3.System Location: Type the location of the switch. 4-4-2-2.Community Strings Use this page to enter SNMP community strings.
  • Page 41 Actions-> <Add>: Create a community strings. <Edit>: Modify all items. Finished configure press ESC to go back action menu line. <Delete>: Delete a community strings. After delete item press <Save> to complete the deleting operation. <Save>: Save all configure value. <Quit>: Exit this page and return to previous menu.

  • Page 42: Trap Managers

    4-4-2-3.Trap Managers A trap manager is a management station that receives traps, the system alerts generated by the switch. If no trap manager is defined, no traps are issued. Create a trap manager by entering the IP address of the station and a community string.
  • Page 43 Actions-> <Add>: Create a trap manager. <Edit>: Modify all items. Finished configure press ESC to go back action menu line. <Delete>: Delete a trap manager. After delete item press <Save> to complete the deleting operation. <Save>: Save all configure value. <Quit>: Exit this page and return to previous menu.

  • Page 44: Aggregator Setting

    4-4-4.LACP 4-4-4-1.Aggregator Setting 1.Group: Display the trunk group ID. 2.LACP: Press Space key to enable or disable LACP (Link Aggregation Control Protocol) support. If enable, the group is LACP static trunking group. If disable, the group is local static trunking group. 3.LACP Work Port Num: The max number of ports can be aggregated at the same time.

  • Page 45: State Activity

    Actions-> <Edit>: Configure all items. Finished configure press ESC to go back action menu line. <Save>: Save all configure value. <Quit>: Exit this page and return to previous menu. 4-4-4-2.State Activity Active: The port automatically sends LACP protocol packets. Passive: The port does not automatically sends LACP protocol packets, and responds only if it receives LACP protocol packets from the opposite device.

  • Page 46: Lacp Status

    Actions-> <Edit>: Configure all items. Finished configure press ESC to go back action menu line. <Save>: Save all configure value. <Quit>: Exit this page and return to previous menu. 4-4-4-3.LACP Status When you setting trunking group, you can see relation information in here.

  • Page 47: X-Modem Upgrade

    Actions-> <Quit>: Exit this page and return to previous menu. <Previous Page>: Return to previous page to view. <Next page>: Go to next page to view. 4-5.Reboot Switch Default: Reset switch to default configuration. Restart: Reboot the switch in software reset. 4-6.
  • Page 48 3.Select “send file" under "transfer" menu from menu bar. 4.Press "browse" button to select the path. 5.Select "1K X-modem" of protocol and press "Send" button. 6.After successfully upgraded the new firmware, please modify baud rate to 9600bps.

  • Page 49: Web-Based Management

    Web-Based Management This section introduces the configuration and functions of the Web-based management of TE100-S810Fi series. The TE100-S810Fi series provides an embedded HTML website residing in flash memory. It offers management feature and allows users to manage the TE100-S810Fi from anywhere on the network through a standard Web Browser.

  • Page 50: Web Management Function

    Web Management Function 1. Web Management Function provides a Web browser to manage and monitor the switch, the default values as follows: If you need change IP address in first time, you can use console mode to modify it. IP Address: 192.168.16.1 Subnet Mask: 255.255.255.0...
  • Page 51 be treated as “off ”. Link Status: Down is “No Link”, UP is “Link” Auto Negotiation: auto negotiation mode Speed status: Display 100Mbps or 10Mbps speed, Port 1- 8 is 10/100Mbps, Port 9 is 100 Mbps. Duplex status: Display full-duplex or half-duplex mode. Flow control: Display flow control status enable or disable mode Config: Display the state of user setting.

  • Page 52: Port Statistics

    5-3. Port Statistics 1. The following information provides a view of the current status of the unit. 5-4. Administrator Those management functions include: IP address, Switch settings, Console port information, Port controls Link aggregation, Filter database, VLAN configuration ,Spanning Tree, Port Mirror, SNMP, Security Manager, TFTP Update Firmware Configuration Backup, Reset system and Reboot.

  • Page 53: Switch Setting

    5-4-2. Switch Setting 5-4-2-1.Basic 1. Description: Display the name of device type. 2. MAC Address: The unique hardware address assigned by manufacturer (default) 3. Firmware Version: Display the switch’s firmware version. 4. Hardware Version: Display the switch’s Hardware version. 5. Default configure value version: Display write to default EEPROM value version.
  • Page 54 5-4-2-2.Advanced Miscellaneous Setting : MAC Address Age-out Time: Type the number of seconds that an inactive MAC address remains in the switch's address table. The valid range is 300~765 seconds. Default is 300 seconds. Max bridge transit delay bound control: Limit the packets queuing time in switch.
  • Page 55 Priority Queue Service settings: First Come First Service: The sequence of packets sent is depend on arrive order. All High before Low: The high priority packets sent before low priority packets. Weighted Round Robin: Select the preference given to packets in the switch's high-priority queue.
  • Page 56 under “Max bridge transit delay bound control is enabled” situation. Qos Policy: High Priority Levels: 0~7 priority level can map to high or low queue. When the VLAN Tag number of a frame is mapping the priority level of the port, and this frame can have high priority.(This QoS Policy is for global Switch, not for any single port) Protocol Enable Setting : Enable Spanning Tree Protocol : Default recommend to enable STP...
  • Page 57 802.1Q(Tag VLAN) with GVRP VLAN mode (Default) Port Based Also, three kind of typologies shown as below indicate how the IGMP Query work within a network: 1. This topology has to be set for when the router’s IP address is smaller than other Switch in subnet.
  • Page 58 Note: This Router supports IGMP protocol, but IGMP function has to be in enable mode, and the Router has to be the Queryer. 3. This topology must be set for when the Switch’s IP address is not the smallest in the subnet. If in Auto mode, the network will cause multi-cast storm from the client IGMP report, the topology shown as below is necessary to be set for.

  • Page 59: Console Port Information

    5-4-3. Console Port Information 1. Console is a standard UART interface to communicate with Serial Port. User can use windows HyperTerminal program to link the switch. Connect To->Configure Baud rate (bits/sec): 9600 Data bits: 8 Parity check: none Stop Bits: 1 Flow control: none 5-4-4.

  • Page 60: Aggregator Setting

    5-4-5. Trunking The Trunking provides a standardized means for exchanging information between Partner Systems on a link to allow their Link Aggregation Control instances to reach agreement on the identity of the Link Aggregation Group to which the link belongs, move the link to that Link Aggregation Group, and enable its transmission and reception functions in an orderly manner.
  • Page 61 with the lowest value has the highest priority and is selected as the active LACP. 1.Group ID: you can create a link aggregation across two or more ports, choose the "group id" and click "Get". 2.LACP: If enable, the group is LACP static trunking group. If disable, the group is local static trunking group.

  • Page 62: Aggregator Information

    5-4-5-2. Aggregator Information When you are setting LACP aggregator, you can see relation information in here. 5-4-5-3. State Activity Active (select): The port automatically sends LACP protocol packets. Passive (no select): The port does not automatically sends LACP protocol packets, and responds only if it receives LACP protocol packets from the opposite device.
  • Page 63 2. If you are active LACP’s actor, when you are select trunking port, the active status will be created automatically.

  • Page 64: Filter Database

    5-4-6. Filter Database 5-4-6-1. IGMP Snooping The TE100-S810Fi support IP multicast , you can enable IGMP protocol on web management’s switch setting advanced page, then display the IGMP snooping information in this page, you can view difference multicast group ,VID and member port in here, IP multicast addresses range from 224.0.0.0 through 239.255.255.255.

  • Page 65: Static Mac Address

    A message sent from the querier (IGMP router or switch) asking for a Query response from each host belonging to the multicast group. A message sent by a host to the querier to indicate that the host wants to be Report or is a member of a given group indicated in the report message.

  • Page 66: Port Security

    6. Click add 5-4-6-3. Port Security A port in security mode will be “locked” without permission of address learning. Only the incoming packets with SMAC already existing in the address table can be forwarded normally. User can disable the port from learning any new MAC addresses, then use the static MAC addresses screen to define a list of MAC addresses that can use the secure port.
  • Page 67 5-4-7. VLAN configuration A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain. It allows you to isolate network traffic so only members of the VLAN receive traffic from the same VLAN members. Basically, creating a VLAN from a switch is logically equivalent of reconnecting a group of network devices to another Layer 2 switch.
  • Page 68 switch venders. IEEE 802.1Q VLAN uses a technique to insert a “tag” into the Ethernet frames. Tag contains a VLAN Identifier (VID) that indicates the VLAN numbers. Support Protocol-based VLAN In order for an end station to send packets to different VLANs, it itself has to be either capable of tagging packets it sends with VLAN tags or attached to a VLAN-aware bridge that is capable of classifying and tagging the packet with different VLAN ID based on not only default PVID but also...

  • Page 69: Port Vid

    5-4-7-2. Port VID Configure port VID settings From the main Tag-based (IEEE 802.1Q) VLAN page, click Port VID Settings. Port VID (PVID) Sets the Port VLAN ID that will be assigned to untagged traffic on a given port. For example, if port 9's Default PVID is 100, all untagged packets on port 9 will belong to VLAN 100.

  • Page 70: Spanning Tree

    5-4-8. Spanning Tree The Spanning-Tree Protocol (STP) is a standardized method (IEEE 802.1D ) for avoiding loops in switched networks. When STP enabled, to ensure that only one path at a time is active between any two nodes on the network.
  • Page 71 Prameter Description You can change priority value, A value used to identify the root bridge. The Priority bridge with the lowest value has the highest priority and is selected as the root. Enter a number 1 through 65535. You can change Max Age value, The number of seconds a bridge waits Max Age without receiving Spanning-Tree Protocol configuration messages before attempting a reconfiguration.

  • Page 72: Port Mirror

    Paramet Description You can make it more or less likely to become the root port, the rage is Port 0-255,default setting is 128 Priority the lowest number has the highest priority. If you change the value, you must reboot the switch. Specifies the path cost of the port that switch uses to determine which Path port are the forwarding ports...
  • Page 73 Roving Analysis State: Enable or disable the port mirror function. Mirror Ports: The ports you want to mirror. All mirror port traffic will be copied to mirror port. You can select max 9 monitor ports in the switch. If you want to disable the function, you must select monitor port to none. Monitor Rx: Monitored receive frames from the port.

  • Page 74: Security Manager

    2. Community strings serve as passwords and can be entered as one of the following: Read only: Enables requests accompanied by this string to display MIB-object information. Read write: Enables requests accompanied by this string to display MIB-object information and to set MIB objects. 3.

  • Page 75: Tftp Update Firmware

    5-4-12. TFTP Update Firmware 1. The following menu options provide some system control functions to allow a user to update firmware and remote boot switch system: * Executing TFTP software * Copy firmware update version image.bin to TFTP software directory. * In web management select administrator—TFTP update firmware.

  • Page 76: Tftp Backup Configuration

    value from here, but you must put back image in TFTP server, switch will download back flash image. 5-4-13-2. TFTP Backup Configuration Use this page to set TFTP server IP address. You can save current EEPROM value from here, then go to the TFTP restore configuration page to restore the EEPROM value.

  • Page 77: Reset System

    5-4-14. Reset System Reset Switch to default configuration, default value as below 5-4-15. Reboot Reboot the Switch in software reset. Technical Specifications This section provides the specifications of TE100-S810Fi series, and the following table lists these specifications.

  • Page 78: Specifications

    Specifications Standards IEEE 802.3 10Base-T Ethernet, Compliance IEEE 802.3u 100Base-TX/FX Fast Ethernet ANSI/IEEE 802.3 N-Way Auto-negotiation Protocol CSMA/CD Max Forwarding 14,880 pps per Ethernet port, 148,800 pps per Fast Ethernet port Max Filtering Rate LED Indicators Per Port: (10/100 UTP ) : 100M, LK/ACT, FD/COL ( 3 LEDs ) Fiber Port : [ for 8TP+1Fiber Switch only ] LK/ACT, FD/COL (2 LEDs )

  • Page 79: Troubleshooting

    Operational 10% to 90% (Non-condensing) Humidity External Power 100-240V AC, 50-60Hz Power 8TP Management Switch: 15 Watts (Max) Consumption TE100-S810Fi series: 17 Watts (Max) FCC Class A, CE Mark Safety UL, cUL Troubleshooting This section is intended to help you solve the most common problems on the 8TP/ TE100-S810Fi series.

  • Page 80: Diagnosing Led Indicators

    It is important to make sure that you have a valid network topology. Common topology faults include excessive cable length and too many repeaters ( hubs ) between end nodes. In addition, you should make sure that your network topology contains no data path loops. Between any two ends nodes, there should be only one active cabling path at any time.

  • Page 81: Limited Warranty

    If a product does not operate as warranted during the applicable warranty period, TRENDnet shall reserve the right, at its expense, to repair or replace the defective product or part and deliver an equivalent product or part to the customer. The repair/replacement unit’s warranty continues from the original date of purchase.
  • Page 82 These codes are subject to the GNU General Public License ("GPL") or GNU Lesser General Public License ("LGPL"). Go to http://www.trendnet.com/gpl http://www.trendnet.com Download section and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of...
  • Page 83 TRENDnet does not provide technical support for these codes. Please go to http://www.gnu.org/licenses/gpl.txt http://www.gnu.org/licenses/lgpl.txt specific terms of each license. PWP05202009v2...
