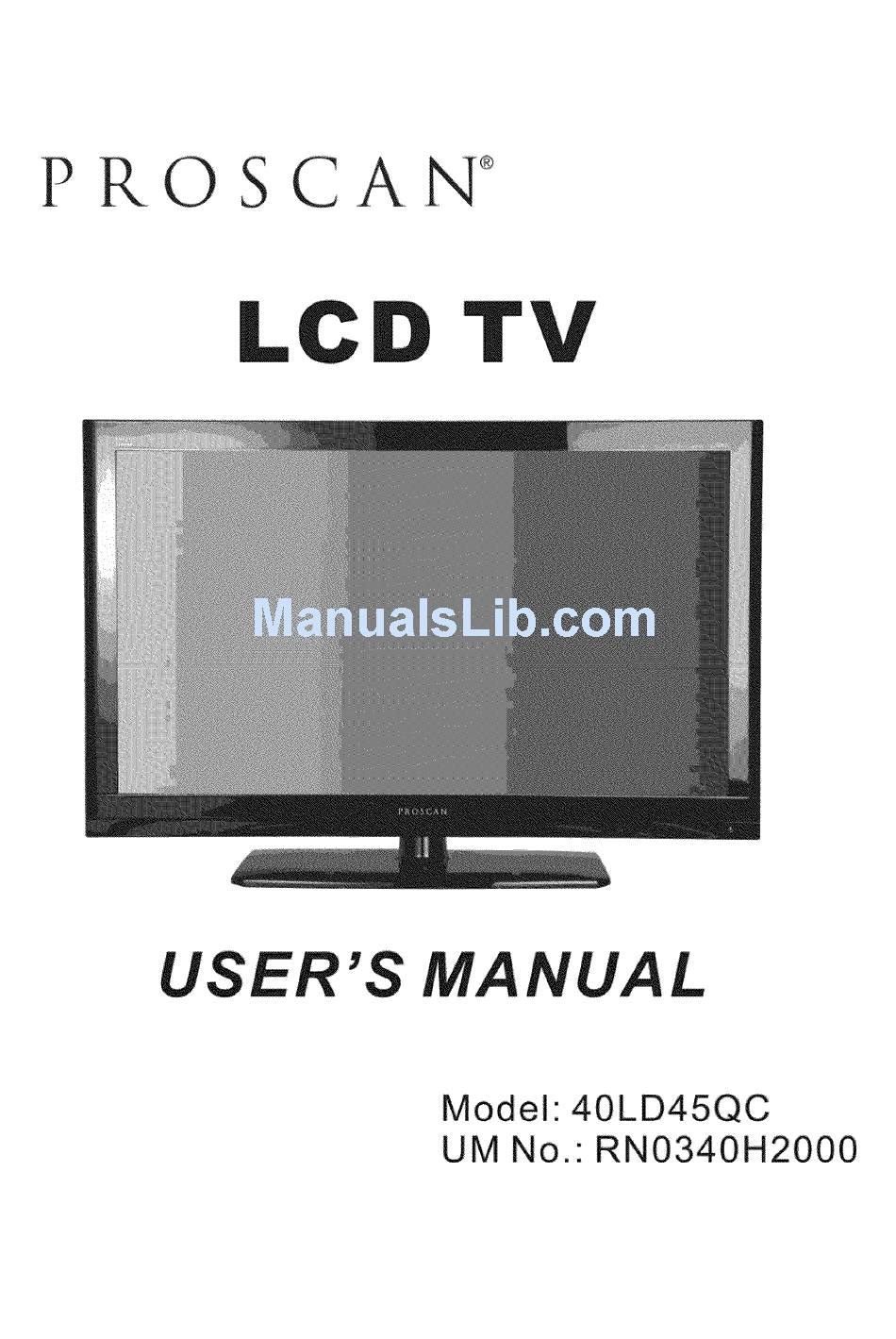

  • Page 1 PROSCAN ® USER'S Model" 40LD45QC UM No.: RN0340H2000...

  • Page 2: Fcc Notice

    Class B digital device This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3 .& CAUTION: To red uce lhe dsk of electric shock, do not remove cover or back. No user- serviceable parts inside. Refer Servicing to qualified service personnel CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could avoid the users' authority to operate this equipment.

  • Page 4: Important Safety Instructions

    READ THESE INSTRUCTIONS. PROTECT THE POWER CORD FROM BEING WALKED KEEP THESE INSTRUCTIONS. ON OR PINCHED PARTICULARLY AT PLUGS, HEED ALL WARNINGS. CONVENIENCE RECEPTACLES, AND THE POINT FOLLOW ALL INSTRUCTIONS. WHERE THEY EXIT FROM THE APPARATUS. DO NOT USE THIS APPARATUS NEAR WATER.

  • Page 5: Cleaning And Maintenance

    Use this cloth to wipe the surface of the display panel, and then wipe it with a dry cloth, Welcome to the bright and vivid world of Proscan TV set. We hope that you will have many years enjoyment from your new select.

  • Page 6: Table Of Contents

    Tableof contents FCC NOTICE ..................... WARNING AND CAUTION ................IMPORTANT SAFETY INSTRUCTIONS ............CLEANING MAINTENANCE ..............DEAR PROSCAN CUSTOMER ..............SAFETY PRECAUTIONS ................INSTALLATION TV STAND ................Preparation using your new TV ............. FRONT PANEL ..................REAR PANEL .................... CONNECTIONS AND EXTERNAL INPUT SETTINGS ..........

  • Page 7: Safetyprecautions

    SafetyPrecautions ,_WARNING KEEP UNNEEDED SMALL PARTS AND OTHER OBJECTS OUT OF THE REACH OF SMALL CHILDREN. THESE OBJECTS CAN BE ACCIDENTALLY SWALLOWED. ALSO, BE CAREFUL ABOUT PACKAGING MATERIALS AND PLASTIC SHEETS. Set up Do not place the TV set on sloped or unstable surfaces. Do not place any objects on top of the TV set.
  • Page 8 SafetyPrecautions When using the TV set Do not bring your hands, face or objects close to the ventilation holes of the TV set. Top of the TV set is usually very hot due to the high temperature of exhaust air being released through the Ventilation holes. Burns or personal injuries can happen if any body parts are brought too close.

  • Page 9: Tv Standinstallation

    TV STANDINSTALLATION Place the TV faced down on a soft cloth or cushion to protect the LCD panel from damage. Put the stand body into the stand base in cabinet. Insert the 6 black screws (which are completely the same) into TV holes tighten.

  • Page 10: Preparation For Using Your New Tv

    Preparation for usingyour newTV- FrontPanel Familiarizing Yourself with the Main Hardware (The picture of the product may vary depending on the model) A. Select signal input. B. Main Menu display and menu selection C. Channel up D. Channel down E. Volume up F.

  • Page 11: Rear Panel

    Preparation for usingyour newTV- RearPanel Rear panel (The picture of the product may vary depending on the model) HDMI Input S-Video Input Video: N Input1: C Input2: D Audio: M, M1 Input3: E VGA Input Video: G Component Input 1 Video: H, I, J Audio: F (3.5mm plug) Audio: K, L...

  • Page 12: Connections And External Input Settings

    Preparation for usingyour newTV - Connections Checking Items before Connecting Please check the list below before connecting the product to other devices. < Check items before connecting > Check the instruction manual when connecting external devices. External products sometimes have different buttons and locations.

  • Page 13: Using The Remote Control

    Usingthe remotecontrol- Learningaboutremotecontrol POWER: Power on/off. SLEEP: Press to select a preset time interval to _OWER EJ_,CT automatically shut the TV. ASPECT: Press to adjust the screen size. DISPLAY: Press to Check your current mode. ©© MTS: Press to select your favorite language in digital broadcasting.

  • Page 14: Remote Control Instructions

    Usingthe remotecontrol- Remotecontrolinstructions Inserting the batteries into the remote control Open the cover of battery cabin on the back of the remote control. Insert two AAA 1.5V batteries, ensuring the correct polarity (+/-). Close the cover. • If the remote control is not working, see the checkpoints below.

  • Page 15: Basic Operation

    Basicoperation- Turningon and off the TV TURN ON LCD TV Connect the AC input cable to power to the LCD TV. At this time the TV will enter standby mode and indicator show red. User POWER button or button on the remote control.

  • Page 16: Volume Adjustment

    Basicoperation- Selectinginputsource For example: IN ANALOG SIGNAL: To select channel (e.g. Channel 22): Press 2 -> 2 ->ENTER, It will jump to 22-0 directly. IN DIGITAL SIGNAL: To select digit channel (e.g. Channel 22-1 ): Press 2 -> 2 -> - > 1 ->ENTER, the program will appear immediately. NOTE: Sub channel number of analog channel is always zero.

  • Page 17: Setup Menu Operation

    Setupmenuoperation-Adjust the OSDscreen Press the MENU button to display the main menu. Use _ / _- / A / v buttons to select and adjust the available menus. NOTE: The OSD (On Screen Display) function enables you to adjust the screen status conveniently since it provides graphical presentation.

  • Page 18: Picture Menu Options

    Setupmenuoperation- Picturemenuoptions NOTE: In this manual, the OSD (On Screen Display) may be different from your TV's in colors. Press MENU button on the front panel or on the remote control and then use A / v to select the PICTURE menu. Use _ / ENTER to enter Picture menu.
  • Page 19 Setupmenuoperation- Picturemenuoptions Advanced Video Press A / v button to select it and use _ / ENTER to enter advanced video menu. Aspect Ratio Press A / v button to select it and then use ENTER / _. to select the aspect ratio of picture: Normal, Zoom, Wide, Cinema.

  • Page 20: Sound Menu Options

    Setupmenuoperation- Soundmenuoptions Press MENU on the front panel or on the remote control and then use A / v to select the SOUND menu. 1. Use _. / ENTER to enter Sound menu. 2. Use A / v to select what you want to adjust in the Sound Menu. 3.
  • Page 21 Setupmenuoperation- Soundmenuoptions Digital Audio Output Press A / v button to select it and then use ENTER / b to select the digital audio output mode: Off, RAW, PCM. 5-Band Equalizer Press A / T button to select it and use _- / ENTER to enter 5-band equalizer set. To use this function, Equalizer mode (page 19) should be "User".

  • Page 22: Channels Menu Options

    Setupmenuoperation- Settingsmenuoptions Press MENU on the front panel or on the remote control and then use A / v to select the CHANNELS menu. 1. Use _. / ENTER to enter Channels menu. 2. Use A / v to select what you want to adjust in the Channels Menu. 3.
  • Page 23 Setupmenuoperation- Settingsmenuoptions Manual Add Channel Press A / • button to select it and then use ENTER / =. to enter. This menu wilt show the intensity of DTV signal. User can adjust the direction and orientation of external antenna by checking Signal Level.

  • Page 24: Settings Menu Options

    Setupmenuoperation- Settingsmenuoptions Favorite Channels Press A / v button to select it and then use ENTER / =. to enter the favorite channels program. Press ENTER / _. to set the current channel to your favorite channel. If the current channel is already one of your favorite channels, press ENTER / _ to set it as a normal channel.
  • Page 25 Setupmenuoperation- Settingsmenuoptions 1. Use _, / ENTER to enter Settings menu. 2. Use A / v to select what you want to adjust in the Settings Menu. 3. Press ,i / _. / ENTER button to adjust. 4. When you are satisfied with your adjustment, press EXIT to exit the main menu. Parental Control Menu...
  • Page 26 Setupmenuoperation- Settingsmenuoptions MPAA Press ENTER to lock or unlock: NONE, G, PG, PG-13, R, NC-17, X. And here is some additional information about each aarental control level. NONE: No restrictions. G: General Audience. This contains little or no violence, no strong language, and little or no sexual dialog or situations.
  • Page 27 Setupmenuoperation- Settingsmenuoptions Canadian English Press ENTER to lock or unlock: NONE, C, C8+, G, PG, 14+, 18+. • NONE: No restriction. • C: Children. • C8+: Viewers should be 8 or order. • G: GeneralAudience. • PG: Parental guidance suggested. •...
  • Page 28 Setupmenuoperation- Settingsmenuoptions Time Set Mode Press A / v button to select this item, then press ENTER / _ button to select: Auto, Manual. Customer needs to choose Manual before adjusting Time Zone, Year, Date and Time. Time Zone Press A / v button to select this item, then press ENTER / _ button to select the time zone for your TV. Year, Date, Time Press A / v button to select this item, then press ENTER / _ button to set the date and time for your TV.
  • Page 29 Setupmenuoperation- Settingsmenuoption • Style: press < / _ to select: Automatic and Custom, when you select automatic, the other functions are disabled. • Size: press < / _ to select: Normal, Large, Small. • Font: press < / _- to select: Default and from Front 1 to Font 7. •...
  • Page 30 Setupmenuoperation- Settingsmenuoption Sleep Timer Press A / v button to select this item, then press ENTER button to select: Off, 5min, 10 min, 15min, 30min, 60min, 90min, 120min, 150min, 180min, 240min. Input Labels Press A / v button to select this item, then press ENTER / _ button to enter. Press ENTER / _.

  • Page 31: Vga Menu Options

    Setupmenuoperation- VGAmenuoptions Press INPUT on the front panel or on the remote control and then enter VGA mode. Use MENU and A / T buttons to select the Settings menu in VGA mode. 1. Use _ / ENTER to enter Settings menu. 2.
  • Page 32 Setupmenuoperation- VGAmenuoptions Clock Press ENTER button to select it and then use _ / _ to adjust the clock of the picture. Note: Phase -- This function allows you to remove any horizontal noise and clear or sharpen the image of characters. Clock -- This function is to minimize any vertical bars or stripes visible on the screen background.

  • Page 33: Appendix

    Appendix- Troubleshooting Identifying Problems If there are any problems using the product, please first consult the list below. If the list below does not solve the problem, call our Customer Service Center immediately. Setup and Connection The TV won't turn on. Check your power cable connection. •...
  • Page 34 Appendix- Troubleshooting • Disfunctioning channels. Check if the channel has been selected correctly. Try changing the position of the antenna. • Picture with white and black dots. Check if your antenna is damaged or any connections are broken. Replace your antenna. •...
  • Page 35 Appendix- Troubleshooting Monitor • The PC Screen continually appears and disappears. Check the connection between the TV and the computer and see if the connector is locked. • A "There is no signal "message appears. This happens if the signal from the video card is exceeded for the maximum resolution or frequency...

  • Page 36: Removing Tv Stand

    Appendix- Removing TV Stand If you decide to install the wall mount your LCD TV, always use a VESA standard wall mount appropriate for the size and weight of the LCD TV. CAUTION • Be sure to follow the instructions. Incorrect installation of the stand/wall...

  • Page 37: Wall Mounting Unit Specification

    Appendix- Wall MountingUnitSpecification Unit Dimension(unit: Screw Diameter Screw Length(unit: 400x250 Remark: The specification of screw is just used on the back cabinet. NOTE: Wall mount bracket is not included with TV and mounting of wall mount bracket to wall may vary depending on brand and size of bracket, Customer should consult bracket mounting...

  • Page 38: Safety Precautions

    For Universal Remote Control brands listed below, please use accompanying Proscan codes and refer to your Universal Remote Control User Manual for basic instruction for changing...

  • Page 39: Tv Specification

    Appendix- TV Specification Model 40LD45QC Diagonal display size 40 inches Television system American TV standard ATSC/NTSC system Audio multiplex BTSC system VHF: 2~13 UHF: 14~69 CATV:1~125 Channel coverage Digital Terrestrial Broadcast (8VSB): 2~69 Digital cable (64/256 QAM): 1~135 PC mode 640x480/60Hz, 800x600/60Hz, 1024x768/60Hz...
