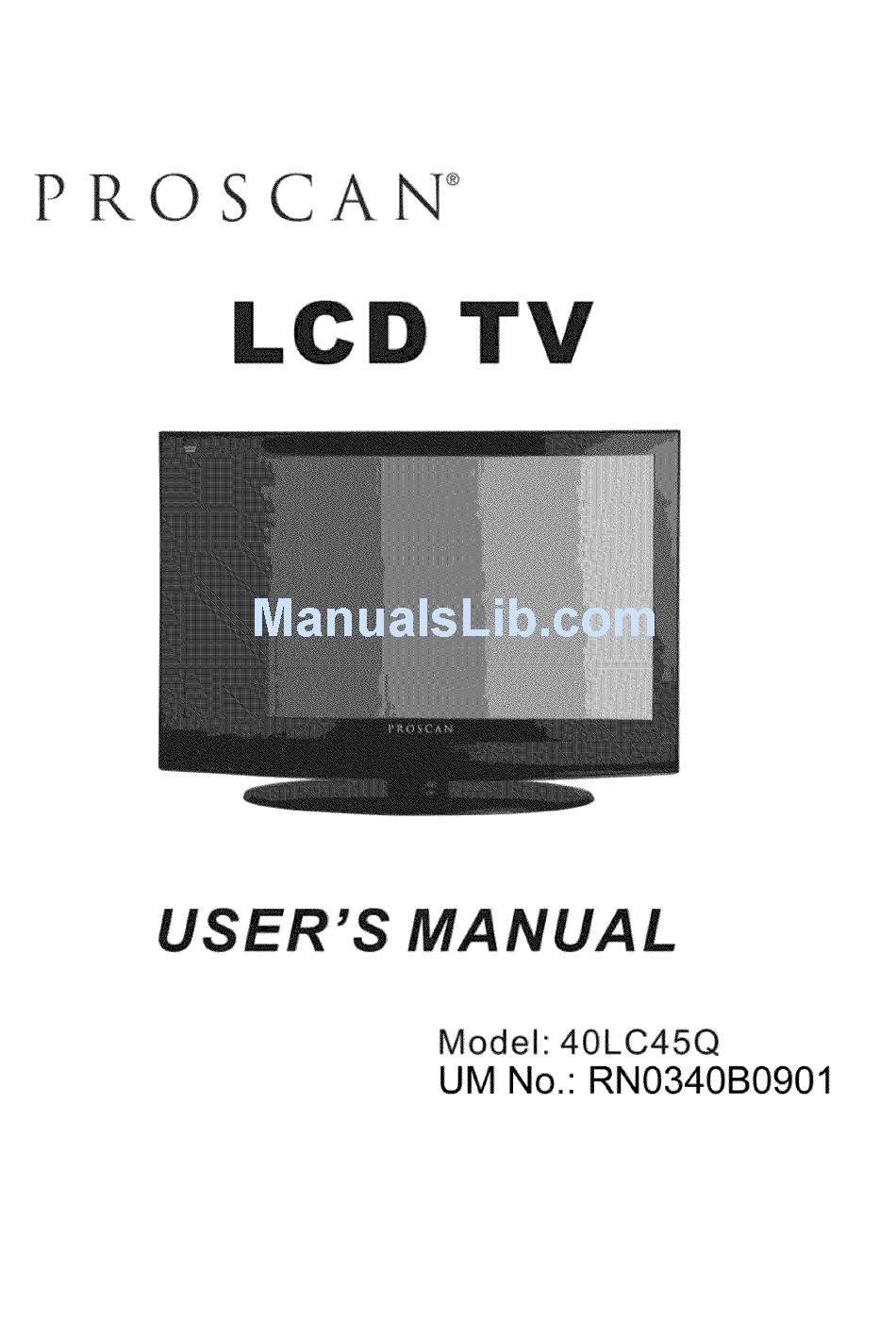

  • Page 1 C A N ° USER' NUAL Model:: 40LC45Q UM No.: RN0340B0901...

  • Page 2: Fcc Notice

    Class B digital device This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3 CAUTION: 1o reduce the riskof electric shock, do not remove cover or back. No user- serviceable parts insTde. Refer Servicing to qualified service personnel. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could avoid the users' authority to operate this equipment.

  • Page 4: Important Safety Instructions

    READ THESE INSTRUCTIONS. PROTECT THE POWER CORD FROM BEING WALKED KEEP THESE INSTRUCTIONS. ON OR PINCHED PARTICULARLY AT PLUGS, HEED ALL WARNINGS. CONVENIENCE RECEPTACLES, AND THE POINT FOLLOW ALL INSTRUCTIONS. WHERE THEY EXIT FROM THE APPARATUS. DO NOT USE THIS APPARATUS NEAR WATER.

  • Page 5: Cleaning And Maintenance

    Use this cloth to wipe the surface of the display panel, and then wipe it with a dry cloth, Welcome to the bright and vivid world of Proscan TV set. We hope that you will have many years enjoyment from your new select.

  • Page 6: Table Of Contents

    Tableof contents FCC NOTICE ..................... WARNING AND CAUTION ................IMPORTANT SAFETY INSTRUCTIONS ............CLEANING MAINTENANCE ..............DEAR PROSCAN CUSTOMER ..............SAFETY PRECAUTIONS ................INSTALLATION TV STAND ................ Preparation using your new TV ............. FRONT PANEL ..................REAR PANEL .................... CONNECTIONS AND EXTERNAL INPUT SETTINGS ..........

  • Page 7: Safetyprecautions

    SafetyPrecautions ,_WARNING KEEP UNNEEDED SMALL PARTS AND OTHER OBJECTS OUT OF THE REACH OF SMALL CHILDREN. THESE OBJECTS CAN BE ACCIDENTALLY SWALLOWED. ALSO, BE CAREFUL ABOUT PACKAGING MATERIALS AND PLASTIC SHEETS. Set up Do not place the TV set on sloped or unstable surfaces. Do not place any objects on top of the TV set.
  • Page 8 SafetyPrecautions When using the TV set Do not bring your hands, face or objects close to the ventilation holes of the TV set. Top of the TV set is usually very hot due to the high temperature of exhaust air being released through the Ventilation holes. Burns or personal injuries can happen if any body parts are brought too close.

  • Page 9: Tv Standinstallation

    TV STANDINSTALLATION Place the TV faced down on a soft cloth or cushion to protect the LCD panel from damage. Note: The 5 screws shown below are completely the same. Put the stand body into the stand base. Insert into 5 black screws (signed in picture below) tighten.

  • Page 10: Preparation For Using Your New Tv

    Preparation for usingyour newTV- Frontpanel Familiarizing Yourself with the Main Hardware (The picture of the product may vary depending on the model) A. Select signal input. (It changes to "ENTER" function when main menu displays ) B.Main Menu display and menu selection C.

  • Page 11: Rear Panel

    Preparation for usingyour newTV- Rearpanel Rear panel (The picture of the product may vary depending on the model) HDMI Input AV2 Input Video: M1 Input1: B Audio: N1, O1 Input2: C Input3: D S-Video Input Video: G Component Input 1 Video: H, I, J Audio: N, O Audio: K, L...

  • Page 12: Connections And External Input Settings

    Preparation for usingyour newTV - Connections 1. Checking Items before Connecting Please check the list below before connecting the product to other devices. < Check items before connecting > Check the instruction manual when connecting external devices. External products sometimes have different buttons and locations.

  • Page 13: Using The Remote Control

    Usingthe remotecontrol- Learningaboutremotecontrol POWER: Power on/off. POWER SLEEP: Press to select a preset time interval to automatically shut the TV. --® ® ASPECT: Press to adjust the screen size. DISPLAY: Press to Check your current mode. ® MTS: Press to select your favorite language in digital broadcasting.

  • Page 14: Remote Control Instructions

    Usingthe remotecontrol- Remotecontrolinstructions Inserting the batteries into the remote control Open the cover of battery cabin on the back of the remote control. Insert two AAA 1.5V batteries, ensuring the correct polarity (+/-). Close the cover. If the remote control is not working, see the checkpoints below.

  • Page 15: Basic Operation

    Basicoperation- ChoosingTV channel TURN ON LCD TV Connect the AC input cable to power the LCD TV. At this time the TV will enter standby mode and indicator show red. User POWER button or button on the remote control. Wait 5 second after switch off LCD TV then you can turn on LCD TV again. Using the CH + / CH - on the side panel or on the remote control.

  • Page 16: Selecting Input Source

    Basicoperation- Selectinginputsource Press the INPUT button to select TV, AV, S-Video, Component, VGA, HDMI inputs. Use the A / v to move the cursor and ENTER button to confirm the source. Press VOL+/- to adjust the volume. If you want to switch the sound OFF, press the MUTE. You can cancel this function by pressing MUTE or VOL+/-.

  • Page 17: Setup Menu Operation

    Setupmenuoperation-Adjust the OSDscreen Press the MENU button to display the main menu. Use _ / _- / A / v buttons to select and adjust the available menus. NOTE: The OSD (On Screen Display) function enables you to adjust the screen status conveniently since it provides graphical presentation.

  • Page 18: Select On Screen Language

    Setupmenuoperation- Videomenuoptions NOTE: If you use your LCD TV for the first time, you should select the language which will be used for displaying menus and indications Press MENU to display the main menu. Press A / v repeatedly to select the SETUP MENU. Use _- button to select OSD Language.
  • Page 19 Setupmenuoperation- Videomenuoptions Brightness Press _, / • button to select it and then use ,q. / b to adjust the brightness of picture. Contrast Press _, / • button to select it and then use ,q. / b to adjust the contrast of picture. Color Press _, / •...

  • Page 20: Audio Menu Options

    Setupmenuoperation- Audio menuoptions Press MENU on the side panel or on the remote control and then use A / v to select the AUDIO menu, press ENTER button to enter it (see the picture below). Use A / v to select what you want to adjust in the AUDIO menu. Press ENTER or _ button to adjust (according to the guiding sign in the bottom right corner of the menu).

  • Page 21: Tv Menu Options

    Setupmenuoperation- TV menuoptions Press MENU on the side panel or on the remote control and then use A / T to select the TV menu, press ENTER button to enter it(see the picture below), Use A / T to select what you want to adjust in the TV menu. Press ENTER or b.

  • Page 22: Setup Menu Options

    Setupmenuoperation- Setupmenuoptions Press MENU on the side panel or on the remote control and then use A / T to select the SETUP menu. Use ,i, / T to select what you want to adjust in the SETUP menu. Press ENTER or _ button to adjust (according to the guiding sign in the bottom right corner of the menu). When you are satisfied with your adjustment.
  • Page 23 Setupmenuoperation- Setupmenuoptions Auto Synchronization Press _ / b. button to set auto synchronization On/Off. Timer Press _ / b. button to set the auto power on and off timer. Sleep Timer To select the sleep timer as 5/10/15/30/45/60/90/120/180/240 minutes/off. Caption Select "Caption", press ENTER button to enter the submenu (digital functions are only available under DTV signal).

  • Page 24: Parental Menu Options

    Setupmenuoperation- Parentalmenuoptions Caption Style: press to select one of As Broadcast and Custom, when you select broadcast, the others are disable and can not be adjusted. ® Font Size: press / b to select one of Medium/Large and Small. Font Color: press <...
  • Page 25 Setupmenuoperation- Parentalmenuoptions U.S. TV Ratings Press ENTER button to enter, and use ,4. / D, / A / v button to select, and press ENTER button to confirm. • TV-Y - All children. The themes and elements in this program are specifically designed for a very young audience, includingchildren from ages two six.
  • Page 26 Setupmenuoperation- Parentalmenuoptions Canadian English Ratings Press ENTER button to enter, and use < / _. / A / • button to select, and press ENTER button to confirm. C - Children. C8+ - Viewers should be 8 or order. G - General Audience. PG - Parental guidance suggested.
  • Page 27 Setupmenuoperation- Parentalmenuoptions Open V-Chip Select "V-Chip", press ENTER button to enter, you will see an item "U.S. (50 states + possessions)", then press ENTER button again to enter the Open V-Chip menu (see the picture below). You can select the item you want to set, press ENTER button to enter, and use ,4.

  • Page 28: Component Menu Options

    Setupmenuoperation- Componentmenuoptions Press MENU on the side panel or on the remote control and then use < / _. to select the OSD menu in Component mode. Use A / v to select what you want to adjust in the each menu. Press ENTER or _, button to adjust (according to the guiding sign in the bottom right corner of the menu).

  • Page 29: Vga Menu Options

    Setupmenuoperation- VGAmenuoptions Press MENU on the side panel or on the remote control and then use < / _. to select the Video menu in VGA mode. Use A / T to select what you want to adjust in the Video menu. Press ENTER button to select it and then use ,t ! =, to adjust When you are satisfied with your adjustment,...

  • Page 30: Hdmi Menu Options

    Setupmenuoperation- HDMImenuoptions Note: Phase- This function allows you to remove any horizontal noise and clear or sharpen the image of characters. Clock- This function is to minimize any vertical bars or stripes visible on the screen background. And the horizontal screen size also will change.

  • Page 31: Appendix

    Appendix-Tr0ublesh00ting Identifying Problems If there are any problems using the product, please first consult the list below. If the list below does not solve the problem, call our Customer Service Center immediately. Setup and Connection The TV won't turn on. Check your power cable connection. •...
  • Page 32 Appendix-Tr0ublesh00ting Are there any TV waves flowing or cordless radio transmitting stations? Avoid using cordless phones, hairdryers or electrical drills. • Disfunctioning channels. Check if the channel has been selected correctly. Try changing the position of the antenna. • Picture with white and black dots. Check if your antenna is damaged or any connections...
  • Page 33 Appendix-Tr0ublesh00ting Monitor • The PC Screen continually appears and disappears. Check the connection between the TV and the computer and see if the connector is locked. • A "There is no signal "message appears. This happens if the signal from the video card is exceeded for the maximum resolution or frequency...

  • Page 34: Removing Tv Stand

    Appendix-Removing T V Stand If you decide to install the wall mount your LCD TV, always use a VESA standard wall mount appropriate for the size and weight of the LCD TV. CAUTION • Be sure to follow the instructions. Incorrect installation of the stand/wall...

  • Page 35: Wall Mounting Unit Specification

    Appendix-Wall MountingUnit Specification Unit Dimension(unit: Screw Diameter Screw Length(unit: 400 x 200 Remark: The specification of screw is just used on the back cabinet. NOTE: Wall mount bracket is not included with TV and mounting of wall mount bracket to wall may vary depending on brand and size of bracket, Customer should consult bracket mounting...

  • Page 36: Safety Warnings

    Proscan model. • Proscan codes for Sony TV = 8003, 8012, 8058 • Proscan codes for Philips TV = 1005, 1006, 1007, 1035, 1064, 1216 • Proscan codes for other universal remotes = 272, 132, 134, 116,040,016, 024, 056, 019, 262...

  • Page 37: Tv Specification

    Appendix-TV Specification Model 40LC45Q Diagonal display size 40 inches Television system American TV standard ATSC/NTSC system Audio system MTS/SAP VHF: 2~13 UHF: 14~69 CATV: 1~125 Channel coverage Digital Terrestrial Broadcast(8VSB): 2~69 Digital cable (64/256 QAM): 1~135 PC mode 640x480/60Hz, 800x600/60Hz, 1024x768/60Hz YPbPr/YCbCr mode...
