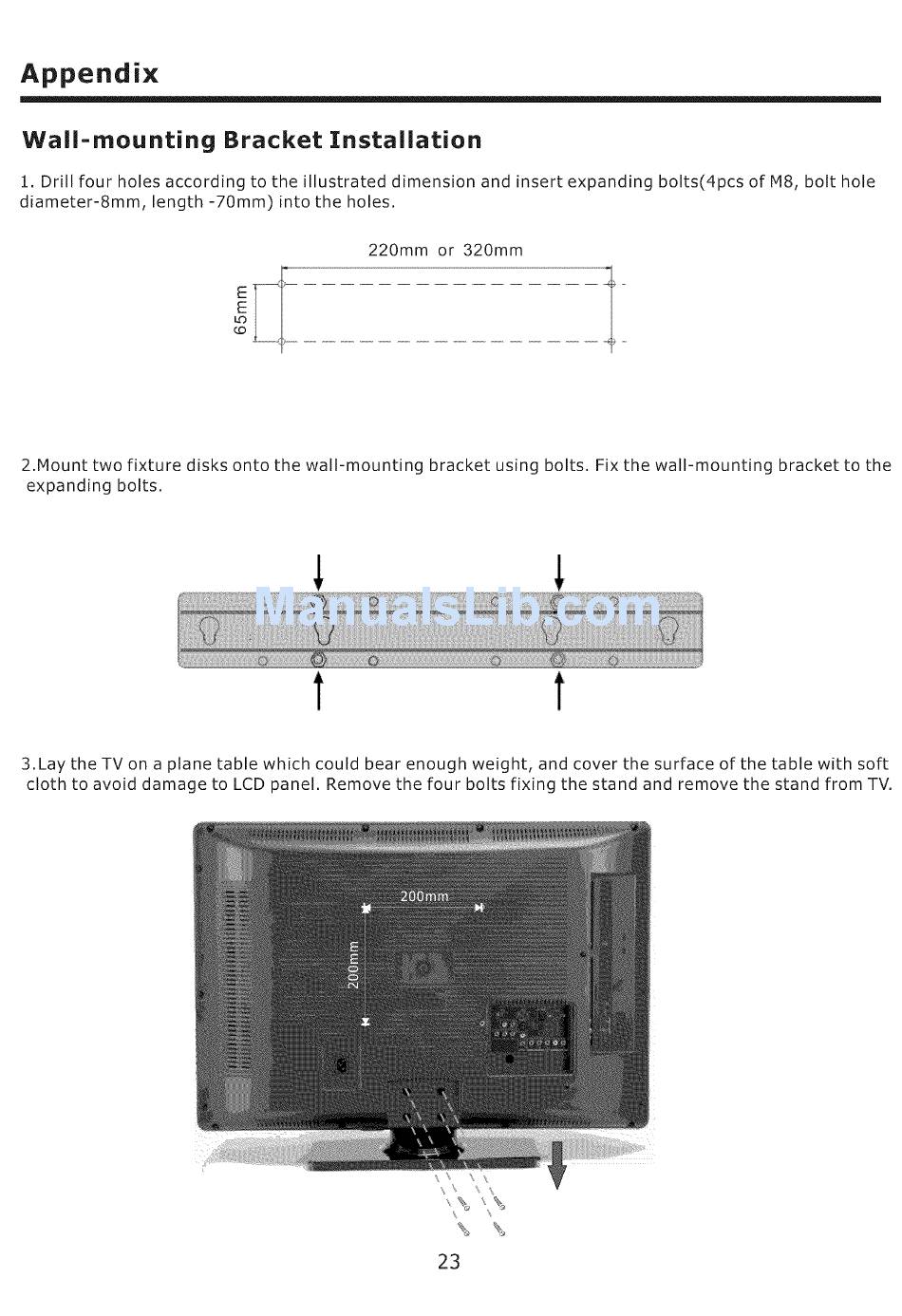

Appendix
Wall=mounting
Bracket
Installation
1. Drill four holes according
to the illustrated
dimension
and insert expanding
bolts(4pcs
of M8, bolt hole
diameter-8mm,
length
-70mm)
into the holes.
220mm
or 320mm
2.Mount
two fixture
disks onto the wall-mounting
bracket
using bolts.
Fix the wall-mounting
bracket
to the
expanding
bolts.
t
3.Lay the TV on a plane table which could bear enough weight,
and cover the surface
of the table with soft
cloth to avoid damage
to LCD panel. Remove the four bolts fixing the stand and remove the stand from TV.
\\
\
\
%
23
