Summary of Contents for ProScan PLCD3271B

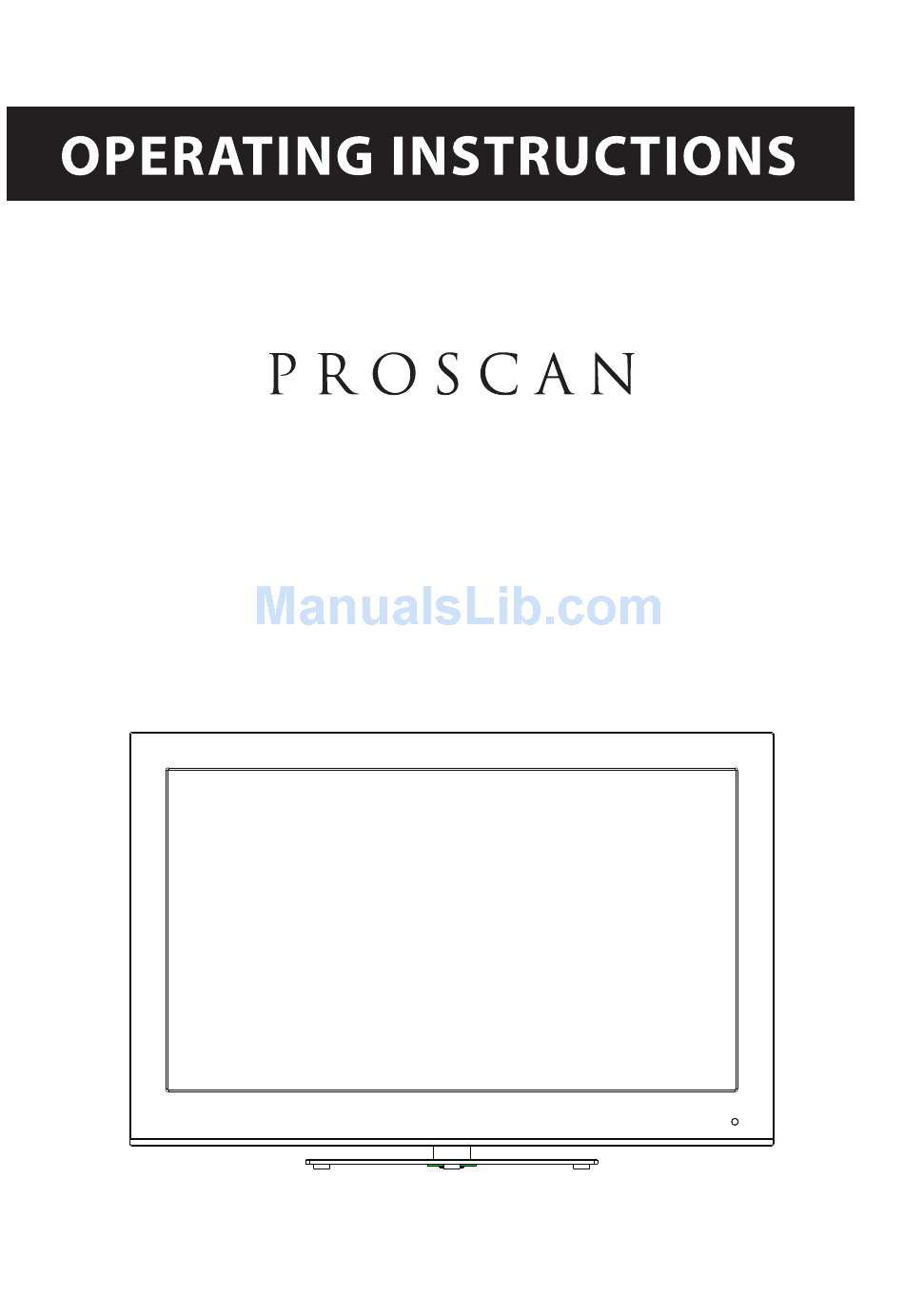

- Page 1 32" LCD TV PLCD3271B...
-
Page 2: Table Of Contents
Contents Safety and warnings..................2-3 Introduction....................4 Stand installation guide................. 5 Wall Mount ....................6 Installation....................7-10 Remote Control....................11 Operation..................... 12-15 Trouble Shooting...................16... -
Page 3: Safety And Warnings
SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTION 1) Read these instructions. The symbol indicates that dangerous 2) Keep these instructions. voltages constituting a risk of electric shock 3) Heed all warnings. are present within this unit. 4) Follow all instructions. The symbol indicates that there are 5) Do not use this Television near water. - Page 4 SAFETY AND WARNINGS High voltages are used in the operation of this television Never stand on, lean on, or suddenly push the television or receiver. Do not open the cabinet. its stand. You should pay special attention to children. Refer servicing to qualified service personnel. Serious injury may result if it falls.
-
Page 5: Introduction
INTRODUCTION Main features Accessories Accessories Integrated ATSC TV tuner for HDTV broadcast reception Power Cable........■ High brightness provides a vivid and brilliant picture ■ Infrared Remote Control....High dynamic contrast ratio for deeper blacks and brighter ■ whites User’ s M anual ......... Wide Screen aspect ratio (16:9) for a complete home ■... -
Page 6: Stand Installation Guide
STAND INSTALLATION GUIDE This STAND INSTALLATION GUIDE is provided to help you easily install the stand. Please carefully follow Step 1 through Step 3. Open the box and find the parts Screws x 3 pcs Open the box and find the following parts. Packing 4x12PWM - Stand x1 pc... -
Page 7: Wall Mount
- 4 pcs of type M4 screws are required for installing the wall mount bracket to your PROSCAN TV. Do not use screws that are longer than 10 mm. Screws that are too long may cause damage to the inside of the TV set. -
Page 8: Installation
INSTALLATION Side panel Front panel VIDEO SOURCE MENU VOL+ VOL- STANDBY RETURN DISPLAY AUDIO SUBTITLE MTS/ REPEAT GOTO MENU SETUP CH LIST/ EPG/ FAV/ ASPECT DISPLAY 1. SOURCE: Display the input source menu. 2. MENU: Display the main MENU. 3. CH+/CH-: In TV mode, press "CH+" or "CH-" to change the channel up and down. -
Page 9: Preset Mode
INSTALLATION STEPS: It is recommended that the TV and computer are off before making any of the connections. 1. Connect a VGA and audio cable. 2. Connect the power cord. 3. Turn on the TV and switch to VGA mode. 4. - Page 10 INSTALLATION ANTENNA Note: Aerial connections:IEC(female). Input impendance:75 unbalanced.
-
Page 11: Installation
INSTALLATION AV EQUIPMENT There are two HDMI ports located on the back of your TV. You can connect a Blu-ray player, DVD player, or other video equipment through these ports. There is one component (Y, Pb, Pr) and two composite (AV) video input located on the back of your TV. You can connect a VCR, cable box, or other video equipment to these jacks. -
Page 12: Remote Control
REMOTE CONTROL 1: POWER Press to turn the TV on or to turn off (standby). 2: NUMBER KEY Press to input the channel number. Press to display the on-screen menu. 4: CURSOR Use the up, down, left, and right keys to move within the YPbPr menu. -
Page 13: Operation
OPERATION 4. SETUP MENU 2. PICTURE MENU The first item of the MENU is PICTURE MENU. The third item of the MENU is SETUP MENU. You can adjust picture effect here, such as contrast, brightness, etc. You can setup system here. Press to select and press to adjust. -
Page 14: Change Password
OPERATION Change Password: Press button and the screen will display as follows: Content Rating Content (Fantasy (Violence) (Sexual (Adult (Sexually violence) situation) language) suggestive dialog) TV-Y (All children) ---- TV-Y7(Direct to Old password order children) ---- Suggested New password TV-G(General ---- audience) Confirm password... - Page 15 OPERATION 4.2 Timer Description Rating You can adjust timer here. Press to select, and press to adjust. Press MENU Exempt: Includes news, sports, documents and other information programming: talk shows, music videos, and variety programming. to exit. Children: Intended for younger children under the age of 8 years. Pays careful attention to themes that could threaten their sense of securityand well-being.
- Page 16 OPERATION 4.4 Menu Settings You can adjust Menu Settings here. Press to select. Press to adjust. Press MENU to exit. Are you sure? < > Transparency Press“ENTER”Key To Select < > Menu Language English Adjust Select Menu Exit Select“yes”and press the ENTER button. You will see the following screen that shows progress of Auto Scan.
-
Page 17: Trouble Shooting
TROUBLE SHOOTING Trouble phenomenon Symptom Inspection Check Picture Audio antenna position, direction Snow Noise or connection antenna position, direction Ghost Normal audio or connection electronic equipment,car/ Interference Noise motorcycle,fluorescent light Volume (check if mute is activated or if the audio system Normal Picture connections are not correct) Mute...
