Weslo MOMENTUM CT 5.0 User Manual

Weslo MOMENTUM CT 5.0 User Manual

Wlel32910.0
Hide thumbs Also See for MOMENTUM CT 5.0:

Advertisement

Quick Links

Download this manual
www.wesIo.com
Model No. WLEL32910.0
Serial No.
Write the serial number in the
space above for reference.
\
Serial Number
Decal
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
iMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-866-699-3756
Mon.-Fri.,
6 a.m.-6 p.m. MT
Sat. 8 a.m.-4 p.m. MT
ON THE WEE}:
www.wesloservice.com
A UAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the MOMENTUM CT 5.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Weslo MOMENTUM CT 5.0

Summary of Contents for Weslo MOMENTUM CT 5.0

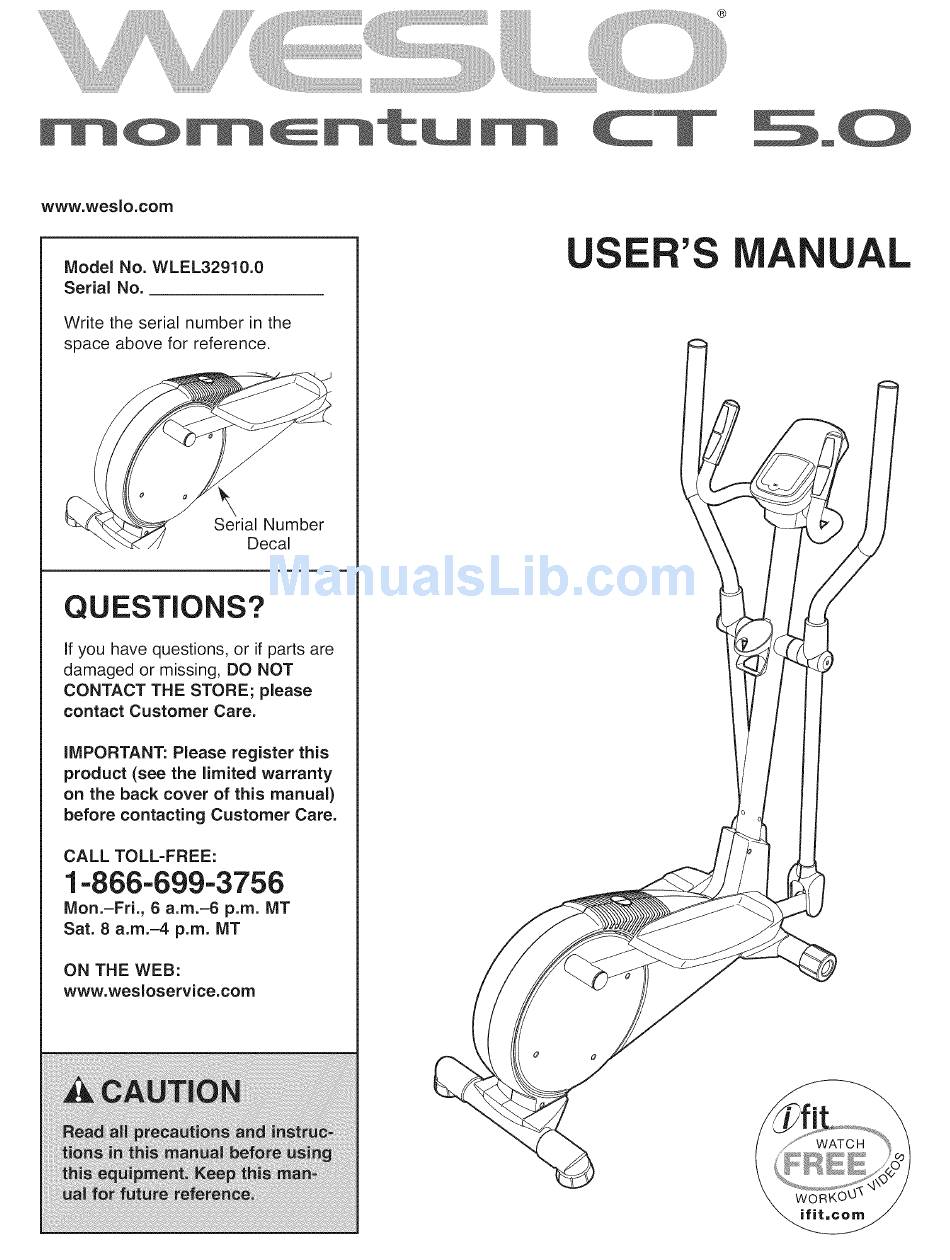

  • Page 1 www.wesIo.com A UAL Model No. WLEL32910.0 Serial No. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? If you have questions, or if parts are damaged or missing, DO NOT CONTACT THE STORE; please contact Customer Care. iMPORTANT: Please register this product (see the limited warranty on the back cover of this manual)
  • Page 2 • Los pedales al girar pueden causar heridas. • Reduzca la velocidad de los pedales en ferma controlada, - El peso del usuarto no debe exceder 113kg. • Reemplace la calcomania si est_ daSada, Jlegible, WESLO is a registered trademark of ICON IP, Inc.
  • Page 3 iMPORTANT PRECAUTIONS ,WARNING: To reduce the .skofserious njury, read a. important precautions instructions in this manual and all warnings on your elliptical before using your elliptical, iCON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
  • Page 4 BEFORE YOU BEGIN Thank you for selecting the new WESLO ® manual. To help us assist you, note the product model MOMENTUM CT 5.0 elliptical. The MOMENTUM CT number and serial number before contacting us. The model number and the location of the serial number 5.0 provides a selection of features designed to make...
  • Page 5 ASSEMBLY To hire an authorized service technician to assemble the elliptical, call 1-800-445-2480. Assembly requires two persons. Place all parts of the elliptical in a cleared area and remove all packing mate- rials; do not dispose of the packing materials until assembly is completed. in addition to the included tool(s), assembly...
  • Page 6 Identify the Front Stabilizer (63), which has a Wheel (21) on each end. Orient the Front Stabilizer (63) so that the small holes face downward. Small While a second person lifts the front of the Holes Frame (1), attach the Front Stabilizer (63) to the Frame with two M10 x 78mm Button Bolts (34).
  • Page 7 Insert the Rear Stabilizer Cover (67) into the Rear Stabilizer (9). Attach the Rear Stabilizer Cover (67) with two M4 x 16mm Self-tapping Screws (52). Orient the Upright (2) as shown. Have a second person hold the Upright near the Frame (1). See the inset drawing.
  • Page 8 Attach the Upright (2) to the Frame (not shown) with four M10 x 20mm Patch Screws (7) and four M10 Split Washers (45). Do not tighten the Patch Screws yet. Attach the Water Bottle Holder (29) to the Upright (2) with two M4 x 16mm Self-tapping Screws (52).
  • Page 9 Identify the Left and Right Handlebars (85, 86), which are marked with "Left" and "Right" stick- ers. Wire Tie Avoid pinching Have a second person hold the Left and Right 84 _, the wires Handlebars (85, 86) near the Upright (2). See the inset drawing.
  • Page 10 10. Attach the Rear Upright Cover (75) to the Left and Right Handlebars (85, 86) with two M4 x 16mm Self-tapping Screws (52). Do not fully tighten the Screws yet. 11. Untie and discard the wire ties on the Wire Harness (73) and the Pulse Wires (84).
  • Page 11 12. Tip: Avoid pinching the wires. Attach the Console (23) to the Upright (2) with four M4 x 16ram Self-tapping Screws (52). Avoid pinching the wires 13. Tighten the two indicated M4 x 16ram Self- tapping Screws (52). Press the tabs on the Front Upright Cover (88) into the tabs on the Rear Upright Cover (75).
  • Page 12 14. Identify the Right Upper Body Arm (8), which is marked with an "R" sticker. Slide an Upper Body Arm Cover (81) upward onto the Right Upper Body Arm (8). Slide the Right Upper Body Arm (8) onto an Upper Body Leg (5). Tip: Have a second person hold the Upper Hexagonal...
  • Page 13 15. Insert the Pivot Axle (26) into the Upright (2), and center the Pivot Axle. Apply a generous amount of the included grease to both sides of the Pivot Axle (26). Orient an Upper Body Arm Spacer (47) so that the arrow points toward the floor.
  • Page 14 17. Apply grease to the axle on the right Disc Crossbar (16) and to a Large Wave Washer (76). Slide the Large Wave Washer (76) and the Grease Right Pedal Arm (12) onto the right Disc Crossbar (16). Tighten an M10 x 25mm Patch Screw (40) and an M10 Washer (83) into the Right Disc Crossbar (16).
  • Page 15 HOW TO USE THE ELLiPTiCAL HOW TO MOVE THE ELLiPTiCAL HOW TO EXERCISE ON THE ELLIPTICAL Due to the size and weight of the elliptical, moving To mount the elliptical, hold the handlebars or the it requires two persons. Stand in front of the ellipti- upper body arms and step onto the pedal that is in the cal, hold the upright, and place one foot against one of lowest position.
  • Page 16 FEATURES OF THE CONSOLE HOW TO USE THE MANUAL MODE Turn on the console. SCAN TIME DIST. sq sl To turn on the console, press the On/Reset button or begin pedaling. The entire display will light for a moment; the console will then be ready for use. S-1 l Select the manual mode.
  • Page 17 Scan--When you select this display option, the To select the scan mode again, press the Display upper section of the display will show both time button repeatedly until an indicator appears below the word SCAN. and distance information, and the lower left sec- tion of the display will show calories information.
  • Page 18 HOW TO USE A PRESET WORKOUT As the target speed meter changes in height dur- ing the workout, adjust your pedaling speed so Turn on the console. that the same number of bars appears in both meters. See step 1 on page 16. If your pedaling speed is slower than the current target speed setting, an arrow will appear next to Select...
  • Page 19 MAINTENANCE AND TROUBLESHOOTING Inspect and tighten all parts of the elliptical regularly. Remove all Screws (52, 64) from the Right Shield (4), Replace any worn parts immediately. remove the two Bolts (41), and remove the Right Shield. To clean the elliptical, use a damp cloth and a small amount of mild dish soap.
  • Page 20 HOW TO ADJUST THE DRIVE BELT Remove all Screws (52) from the Left Shield (3), and remove the Left Shield. If you can feel the pedals slip while you are pedaling, even when the resistance is adjusted to the highest Next, loosen the M8 x 22mm Flat Head Screw (65) level, the drive belt may need to be adjusted.
  • Page 21 EXERCISE GUiDELiNES Burning Fat--To burn fat effectively, you must exer- WARNING: Before beginning this cise at a low intensity level for a sustained period of time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy.
  • Page 22 PART LISTm Model No. WLEL32910.0 R0710A Key No. Qty. Description Key No. Qty. Description Frame Frame Spacer Upright Upper Body Arm Bushing Left Shield M8 x 43mm Button Bolt Right Shield M6 x 28mm Screw Upper Body Leg M4 x 16mm Self-tapping Screw Left Upper Body Arm Reed Switch/Wire M10 x 20mm Patch Screw...
  • Page 23 EXPLODED DRAWING-- Model No. WLEL32910.0 RozloA L..51...
  • Page 24 ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: o the model number and serial number of the product (see the front cover of this manual) o the name of the product (see the front cover of this manual) o the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING near the end of this manual)
