GE Monogram ZBD4500DSS Dimensions And Specifications

Monogram. ™
ZBD4500DSS - GE Monogram Built-In Dishwasher

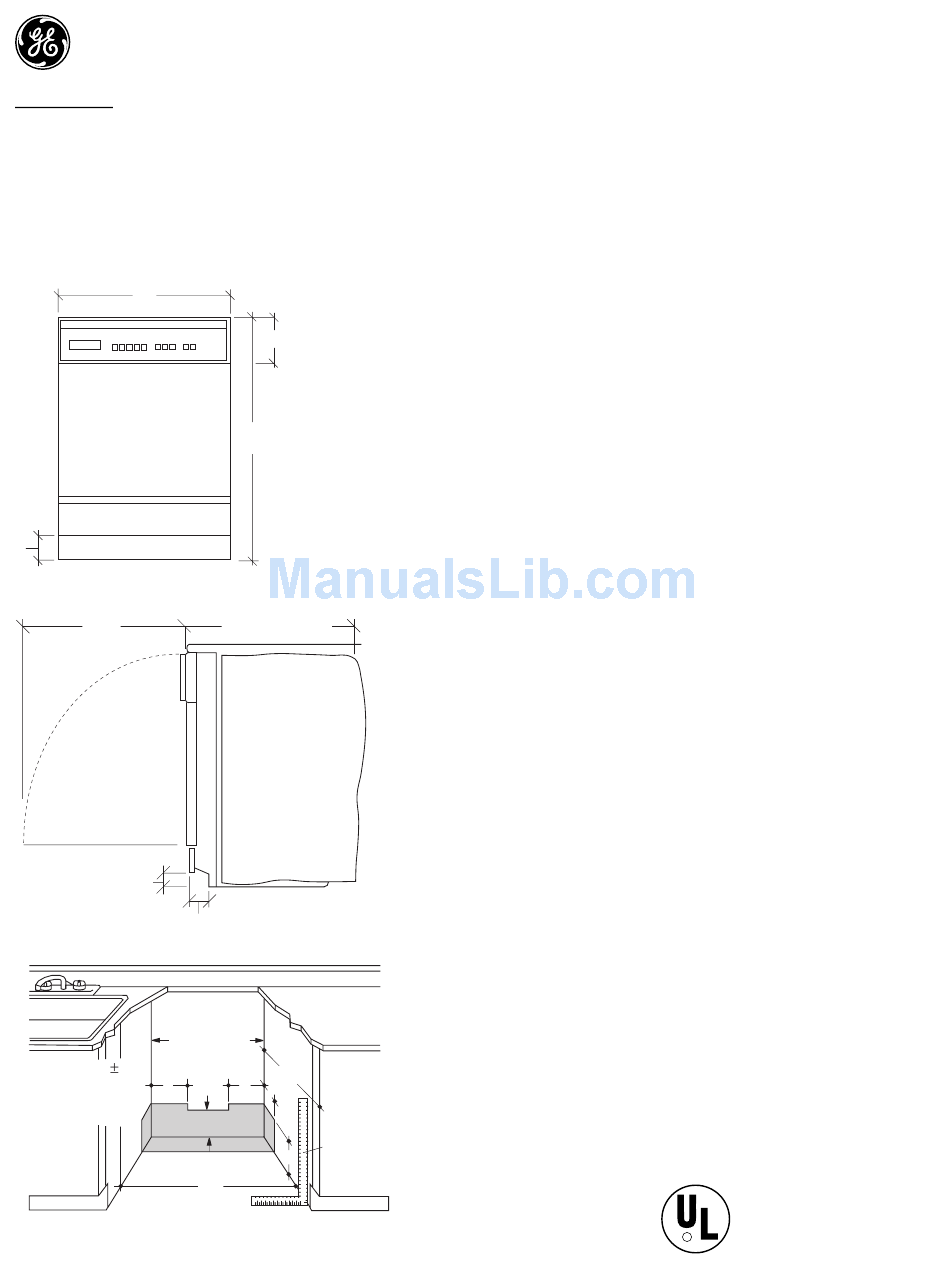

Dimensions and Specifications (in inches)
24"
4"
24 3/4"
Toekick
3 1/4"
This Wall Area
must be Free of
Pipes or wires
34-1/2" 1/4"
Underside of 5"
Countertop
to Floor
Plumbing and Electric Services
Must Enter Inside This Area
Specification Revised 10/99
4 1/2"
34" Min.
35" Max.
25"
(Including 1/4"
Rear Insulation)
24"
Min.
5"
4"
4"
Cabinets
Square
6"
and Plumb
24"
Min.
Design Information: Designed for versatility, these dishwashers adapt
to virtually any installation. This dishwasher is supplied as a stainless
steel model.
To achieve a custom flush appearance, standard 24" base cabinets
should be moved forward by use of spacer blocks.
Optional Kits:
• GPF53 Mounting Kit-Special brackets for installing dishwasher
beneath countertops of stone or other materials which will not
accept screws.
Additional Specifications: A 120 Volt, 60 Hz power supply is required
when using a power cord, an individual properly grounded branch
circuit protected by a 15 or 20 amp circuit breaker or time delay fuse is
recommended. Install a 3-prong electrical receptacle at least 6" above
the floor and within 18" of the right or left adjacent cabinet wall.
Otherwise wiring must enter the cutout in shaded area shown. A double,
side-by-side installation requires two separate circuits.
The hot water line must enter the cutout in the shaded area from the
right, left, rear or through the floor. The water line should be 3/8" O.D.
copper or 1/2" O.D. plastic. Installation of an easily accessible hand
shut-off valve is strongly recommended.
The dishwasher should be placed no more than 10 feet from the sink for
proper drainage.
For a corner installation, allow 2" clearance between dishwasher and
adjacent cabinet or wall.
For answers to your Monogram,
GE Profile Performance Series,
GE Profile ™ or GE appliance questions, call
GE Answer Center ® service, 800.626.2000.
