GE Monogram ZBD4700XWW Dimension Manual

Monogram. ™
ZBD4700XWW—Dishwasher with stainless steel interior

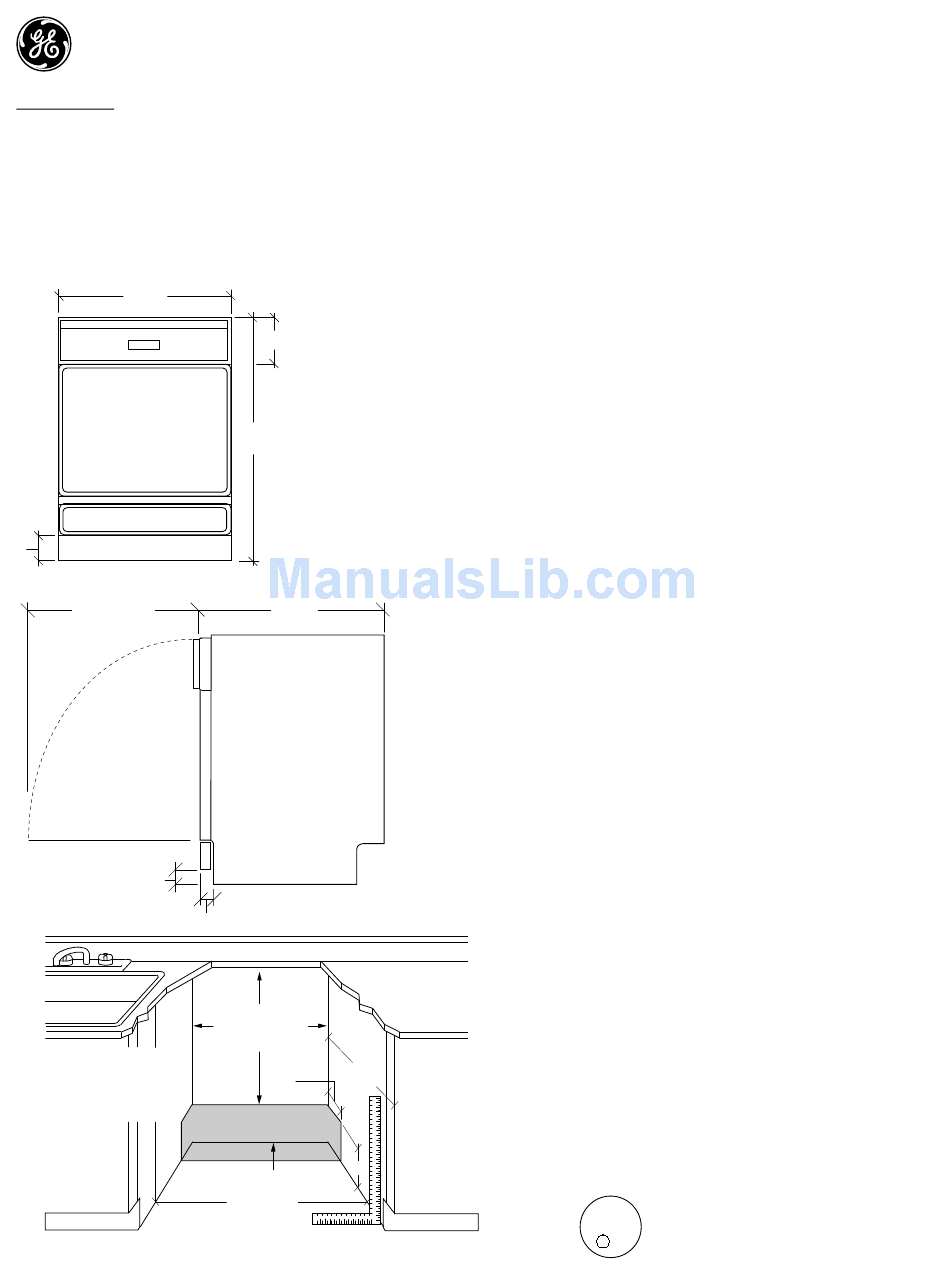

Dimensions and Specifications (in inches)
23 3/8"
4"
25 1/4"
From Inside
Front Frame
Toekick
3 3/16"
34" Min.
35" Max.
Underside of
Countertop
to Floor
Revised 7/97
5 1/2"
34" Min.
35" Max.
22 5/8"
This Wall Area
Must be Free of
Pipes or Wires
24"
Min.
1-3/4"
Plumbing and Electric Service
Must Enter Inside This Area
6"
23-5/8" Min.
24" Max.
Design Information: This dishwasher is supplied as
a white model.
This dishwashers has a finished door and access
panel. The door and access panel trim will accept
custom panels up to 1/4" thick.
A toekick is supplied and may be covered with a
custom toekick to match kitchen decor.
Side trim is not required. Side filler strips are supplied
to fill a 24" wide opening.
Additional Specifications: A 120 Volt, 60 Hz power
supply is required. An individual properly grounded
branch circuit protected by a 15 or 20 amp circuit
breaker or time delay fuse is recommended. Install a
3-prong electrical receptacle at least 6" above the
floor and within 18" of the right or left adjacent
cabinet wall. Wiring must enter the cutout in shaded
area shown. A double, side-by-side installation
requires two separate circuits.
The hot water line must enter the cutout in the shaded
area from the right, left, rear or through the floor. The
water line should be 3/8" O.D. copper or 1/2" O.D.
plastic. Installation of an easily accessible hand
shut-off valve is strongly recommended.
The dishwasher should be placed no more than 10
feet from the sink for proper drainage.
If the dishwasher is to be located in or near a corner
of base cabinets, allow 2" min. clearance from the
corner to prevent interference with adjacent door
handles.
For answers to your GE Monogram,
GE, Hotpoint and RCA appliance questions, call
GE Answer Center ® service, 800.626.2000.
