Operator's
Manual
RN°

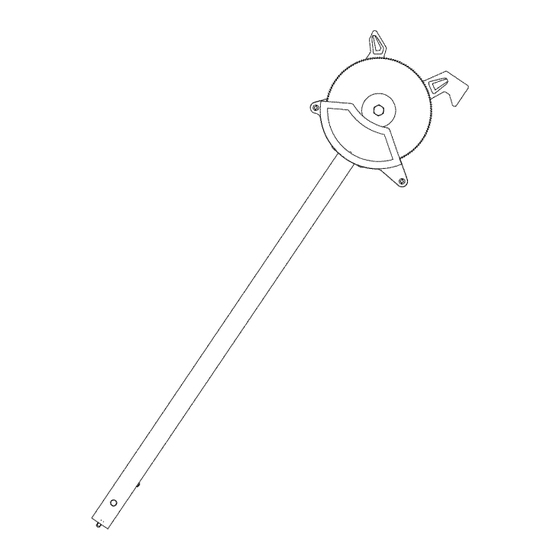

Bladed Pruner
ATTACHMENT
Model No. 316.792480
CAUTION:
Before
using
this product,
read this
manual
and follow
all
safety
rules and operating
instructions.
• SAFETY
• ASSEMBLY
• OPERATION
• MAINTENANCE
• PARTS LIST
• ESPANOL, E E1
Sears, Roebuck and Co., Hoffman Estates, IL 60179, U.S.A.
Visit our website:
www.sears.com/craftsman
769-03520A

Advertisement

   Also See for Craftsman 316.792480

   Related Manuals for Craftsman 316.792480

   Summary of Contents for Craftsman 316.792480

  • Page 1

    • OPERATION • MAINTENANCE • PARTS LIST • ESPANOL, E E1 CAUTION: Before using this product, read this manual and follow safety rules and operating instructions. Sears, Roebuck and Co., Hoffman Estates, IL 60179, U.S.A. Visit our website: www.sears.com/craftsman 769-03520A...

  • Page 2

    TABLE OF CONTENTS The purpose of safety symbols is to attract your attention to possible Safety Rules ........dangers. The safety symbols, and their explanations, deserve your careful attention and understanding. The safety warnings do not by Warranty .......... Know Your Unit ........themselves eliminate any danger.

  • Page 3

    • Keep the work area clean. Cluttered areas invite injuries. Do not DANGER: RISK OF CUT OR SHOCK -- Keep hands start cutting until you have a clear work area, secure footing, and away from blades. Keep one hand on assist handle on the a planned retreat path from the falling branches.

  • Page 4

    CRAFTSMAN FULL WARRANTY If this Craftsman product fails due to a defect in material or workmanship within one year from the date of purchase, return it to any Sears store or other Craftsman outlet in the United States for free replacement, This warranty applies for only 90 days from the purchase date if this product is ever used for commercial or rental purposes.

  • Page 5

    (Fig. 2) and securely tighten the " Release Button Guide Recess knob before operating Knob I Craftsman ConvertibleT_ th s un t. __J__TP Repeat steps 1-4 for the attachment or extension boom. Fig. 3...

  • Page 6

    OPERATING PRECAUTIONS WARNING: Dress properly to reduce the risk of injury when operating this unit. Do not wear loose clothing or jewelry. Wear eye and ear/hearing protection. Wear heavy long pants, boots and gloves. Wear a hard hat. Use a full face she d when needed.

  • Page 7

    OPERATING TIPS WARNING: Blade thrust may occur when the spinning blade contacts an object that it does not immediately cut. Blade thrust can be violent enough to cause the unit and/or operator to be propelled in any direction, and Cut 1 possibly lose control of the unit.

  • Page 8

    Insert the screws into the blade guard holes and hand start them Locking Teeth Blade to tighten. Finish tightening the screws using the provided Allen wrench. Replacing the Pruner Blade If you need to replace the pruner blade, you can replace it with a 5.5-inch 100-tooth circular saw blade.

  • Page 9

    • MANTENIMIENTO • LISTADO DE PIEZAS PRECAUCION: Antes de utilizar este producto, lea este manual y siga todas las reglas seguridad y las instrucciones de funcionamiento. Sears, Roebuck and Co., Hoffman Estates, IL 60179, U.S.A. Visite nuestro sitio web" www.sears.com/craftsman 769-03520A...

  • Page 10

    INDICE DE CONTENIDOS Los s[mbolos de seguridad se utilizan para Ilamar su atenci6n Normas para una operaci6n segura ....... sobre posibles peligros. Los simbolos de seguridad y sus Garantia ..........explicaciones merecen toda su atenci6n y comprensi6n. Conozca su unidad ........

  • Page 11

    come se muestra aquf debajo: • Con una comprensi6n basica del empuje de la cuchilla, usted puede reducir o eliminar el elemento de sorpresa. Las sorpresas Cable de Cable de la Cable de Cable de la momentaneas contribuyen a los accidentes. extensiCn Cabeza extensiCn...

  • Page 12

    GARANTiA TOTAL DE CRAFTSMAN Si este producto Craftsman falla debido a un defecto en el material o en la mano de obra dentro de un periodo de uno aSo a partir de la fecha de compra, devuelvalo a cualquier tienda Sears u otro establecimiento de Craftsman en Estados Unidos para que sea reemplazado sin costo alguno.

  • Page 13

    Cuchilla Bastidor del eje impulsor Cubierta del cuchilla Gancho Asa para colgar Brazo de extensi6n Acoplador de Craftsman Convertible INSTALACION / REMOCION DEL ACCESORIO Orificio primario operador de los accesorios antes de su operaci6n. I ADVERTENCIA: Lea y comprenda el manual del ____Ac°plad°r_l...

  • Page 14

    PRECAUCIONES CORTE ADVERTENCIA: Vista en forma adecuada para reducir el riesgo de lesiones cuando opere esta unidad. No use ropa holgada ni alhajas. Use protecci6n ocular y auditiva. Use pantalones largos y gruesos, botas y guantes. No use panta ones cortos, sanda as n traba e desca zo. Mantenga a espectadores 15 metros (50 pies) lejos cuando este operando la herramienta.

  • Page 15

    SUGERENCIAS DE OPERACION ADVERTENCIA" Se puede producir un empuje de la cuchilla cuando entre en contacto con un objeto mientras est9 girando y no Io corta de inmediato. El empuje de la cuchilla puede ser Io suficientemente violento para ocasionar que la Corte 1 unidad y/o el operador sea lanzada(o) en cualquier direcci6n, y posiblemente pierda el control de la unidad.

  • Page 16

    Dientes d etraba Tuerca Hoja Inserte los tornillos en los orificios del protector de la cuchilla y aprietelos con la mane. Termine de apretar los tornillos usando la Ilave Allen provista. LIMPIEZA Use un cepillo peque_o para limpiar la parte exterior de la unidad. No utilice detergentes fuertes.

  • Page 17

    REPLACEMENT PARTS - MODEL 316.792480 BLADED PRUNER ATTACHMENT Item Part No. Description 753-04352 Extension Boom 753-1190 Split Boom Coupler (includes 3-6) 791-182057 Screw 791-181617 Bolt 791-181981 Adjustment Knob 753-04386 Knob Retaining Nut 753-05724 Drive Shaft Housing Assembly 753-05763 Blade Cover (includes 15) 753-05739 Blade Retaining Kit 753-05740...
