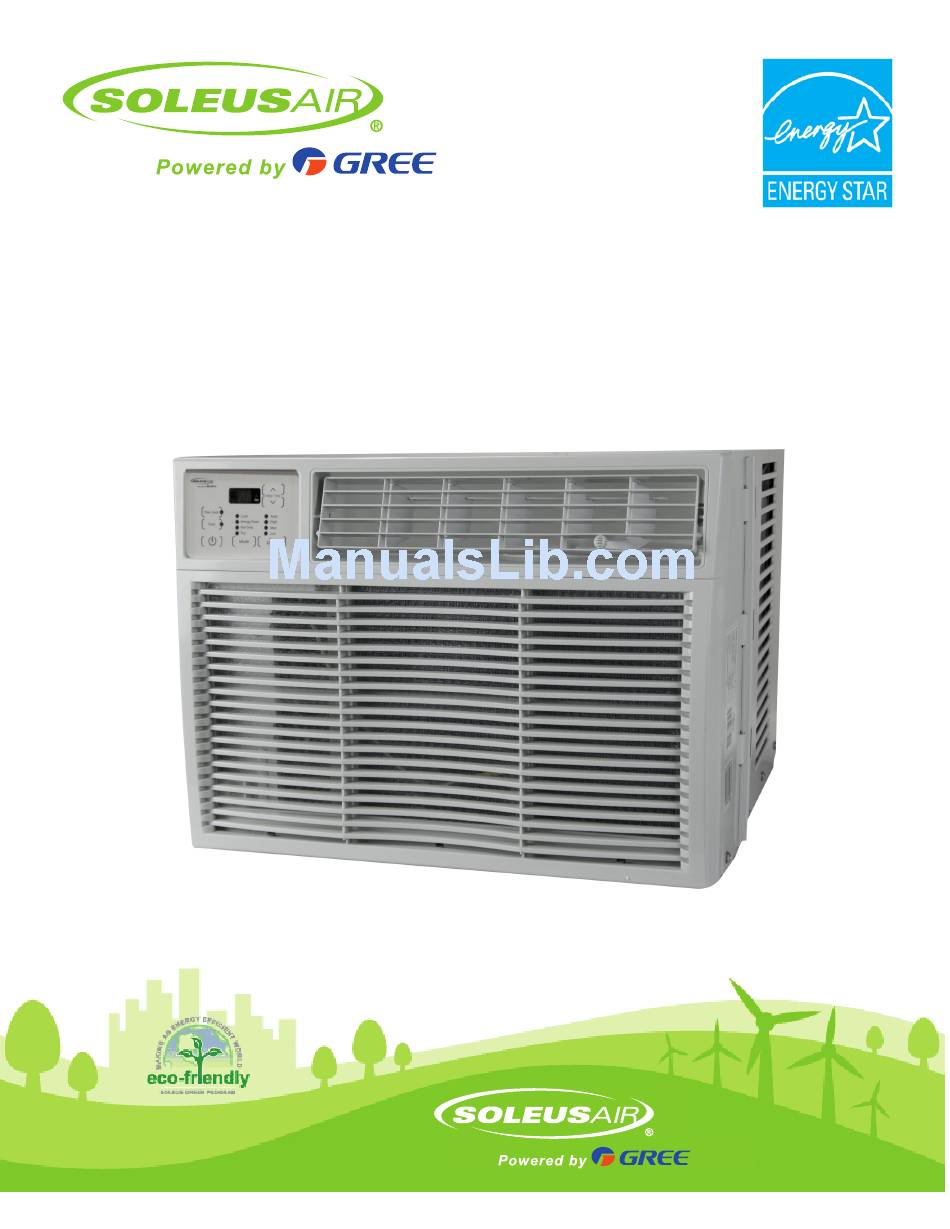

- Page 1 Models GM-WAC-10ESE-C GM-WAC-12ESE-C Electronic Window Air Conditioner Operating Instructions...
-
Page 3: Important Safety Instructions
Thank you for choosing a Soleus Air powered by Gree Air Conditioner. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new air conditioner. -
Page 4: Electrical Requirements
• A damaged power supply cord must be replaced with a new power supply cord from Soleus Air Powered by Gree. • The power supply cord contains new user serviceable parts. -
Page 5: Packing List
PACKING LIST Packing List: • Sash Lock (1) • Window Air Conditioner • Window Sash Seal • Remote Control • 3/4” Screw for Window Locking Bracket & Accordion • AAA Batteries (2) Panels, and sash lock (6) • Top Mounting Rail •... -
Page 6: Specifications
SPECIFICATIONS • Noise level is measured at a distance of 3.28 ft away from the front of the unit in cooling mode. • Power consumption is measured when the fan runs at the highest speed setting. • These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit. Model GM-WAC-10ESE-C GM-WAC-12ESE-C... - Page 7 INSTALLATION & ASSEMBLY INSTRUCTIONS Some assembly is required for your new air conditioner. Please read and follow these instructions carefully. 1. This air conditioner is designed to be installed in a standard double-hung window with a window width FIG. 1 between 22”...
-
Page 8: Mounting Hardware
Mounting Hardware Qty. 3/4"screws lock frame FIG. 3A B. Slide the free end (“I”section) of the panel into the cabinet as shown in Figures 3A, 3B & 4. Slide the sash lock panel down. Be sure to leave enough space to slip the top and bottom of the frame into the rails on the cabinet. - Page 9 Keep a firm grip on the air conditioner, carefully Drive 3/4” (19mm) locking screws place the unit into the window opening so the through frame holes into window sash bottom of the air conditioner frame is against the (FIG. 10/11). window sill (FIG.
-
Page 10: Air Conditioner Use
If AC is Blocked by Storm AIR CONDITIONER USE Window Operating your air conditioner properly helps you to obtain the Add wood as shown in FIG. 14, or remove storm best possible results. window before air conditioner is installed. This section explains proper air conditioner operation. IMPORTANT: If you turn off the air conditioner, wait at least 3 minutes FIG. -
Page 11: Using Your Air Conditioner
USING YOUR AIR CONDITIONER 3. Temperature Set: Use these buttons on the con- trol panel and remote to increase or decrease the Electronic Control Panel & Remote Control Set Temperature (the desired room temperature) in cooling,energy saver and dry mode. The SET NOTE: This display always shows the room temperature in Fan light will light up when setting the temperature Mode except when setting the Set temperature or the Timer. -
Page 12: Operating Your Air Conditioner
OPERATING YOUR AIR CONDITIONER REMOTE CONTROL 5. FAN - Press the FAN button to turn change the FAN options. You can choose between four speeds and auto mode. The fourth fan option is only available in cooling and energy saver modes. 6. - Page 13 OPERATING YOUR AIR CONDITIONER REMOTE CONTROL 9. LOCK/UNLOCK- Press the “+” and “—” buttons simultaneously to lock and unlock the remote control. When the remote is locked, none of the functions or setting can be changed using the remote. 10. F° or C° - To switch between the F° or C° settings, press the MODE and “—” buttons a the same time. 11.
- Page 14 USING YOUR AIR CONDITIONER (Cont.) • Freezing Conditions: This is a cooling only air • Fan Only Mode: Use Fan Only mode at Low, conditioner. It is not designed for freezing outdoor Med, or High fan speed to provide air circulation conditions.
-
Page 15: Care And Cleaning
Cabinet Cleaning CARE AND CLEANING To clean the air conditioner cabinet: Clean your air conditioner to keep it looking new and to minimize dust build up. Unplug the air conditioner to prevent shock or • a fire hazard. The cabinet and front panel of the air conditioner may be dusted with an oil- Air Filter Cleaning The air filter should be checked at least once... -
Page 16: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS The air conditioner is unplugged • Make sure the air conditioner is The Air Conditioner will not start plug is pushed completely into the outlet • Check the house fuse/circuit The fuse is blown/circuit breaker is breaker box and replace the fuse tripped. - Page 17 TROUBLESHOOTING (CONT.) PROBLEM POSSIBLE CAUSES SOLUTIONS Hot and Humid weather. • This is normal Water is dripping outside The air conditioner is not correctly • For proper water drainage, make Water is dripping inside the room tilted outside. sure the air conditioner is slightly tilted downward from the front of the unit to the rear.
-
Page 18: Warranty
Warranty Soleus International Inc. warrants the accompanying Soleus Air Air Conditioner to be free of defects in mate- rial and workmanship for the applications specified in its operation instruction for the period of parts specified below. 5 YEARS FOR COMPRESSOR 1 YEAR FOR OTHER COMPONENTS This warranty shall not apply to broken or marred cabinets, accessories, knobs, filters or routine maintenance. - Page 20 66129908032...
