Installation Instructions
Note: Mount the camera with a 3/8-inch (1 cm) clearance from the ceiling. For optimal PIR
coverage using the standard lens, mount the PIR 7 feet (2 m) above the floor. You may
have to compromise to get good PIR and camera coverage.
5)
Mark the mounting holes on the mounting surface (see Figure 3).
Cable hole
for corner
Corner-
mounting

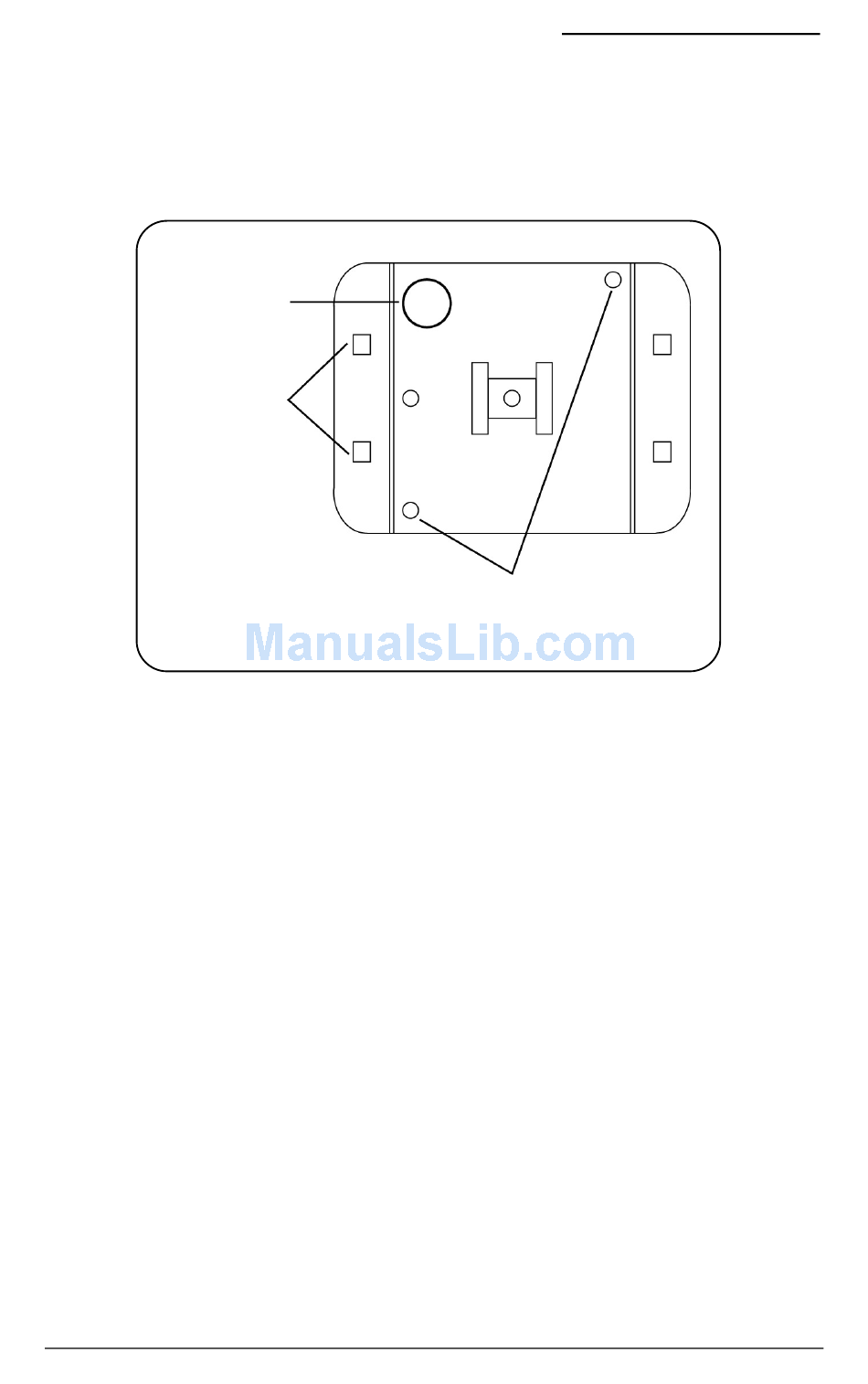

Figure 3. Mounting bracket
Note: The corner-mounting tabs can be removed for surface mounting.
6)
Secure the mounting bracket to the mounting surface using the
provided screws and raw plugs.
1036380B / February 2003
mount
holes
Surface-mounting holes
PI-450/950 PIR Camera
