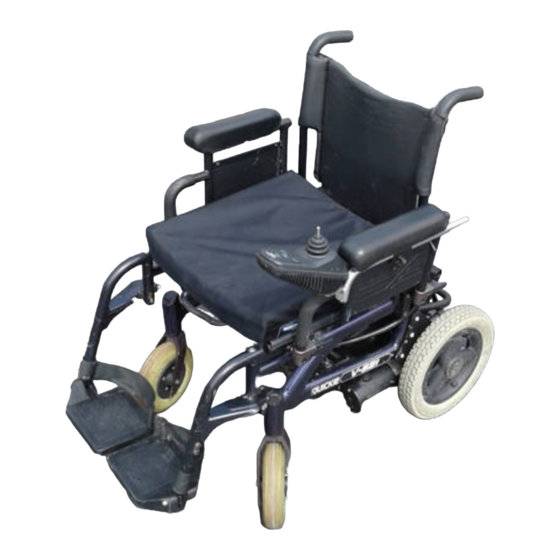

Quickie V-521
SUPPLIER:
THIS MANUAL MUST BE GIVEN TO THE
RIDER OF THIS WHEELCHAIR.
RIDER:
BEFORE USING THIS WHEELCHAIR
READ THIS ENTIRE MANUAL AND SAVE
FOR FUTURE REFERENCE.
User
Instruction
Manual &
Warranty

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quickie V-521 and is the answer not in the manual?

Questions and answers

Related Manuals for Sunrise Medical Quickie V-521

Summary of Contents for Sunrise Medical Quickie V-521

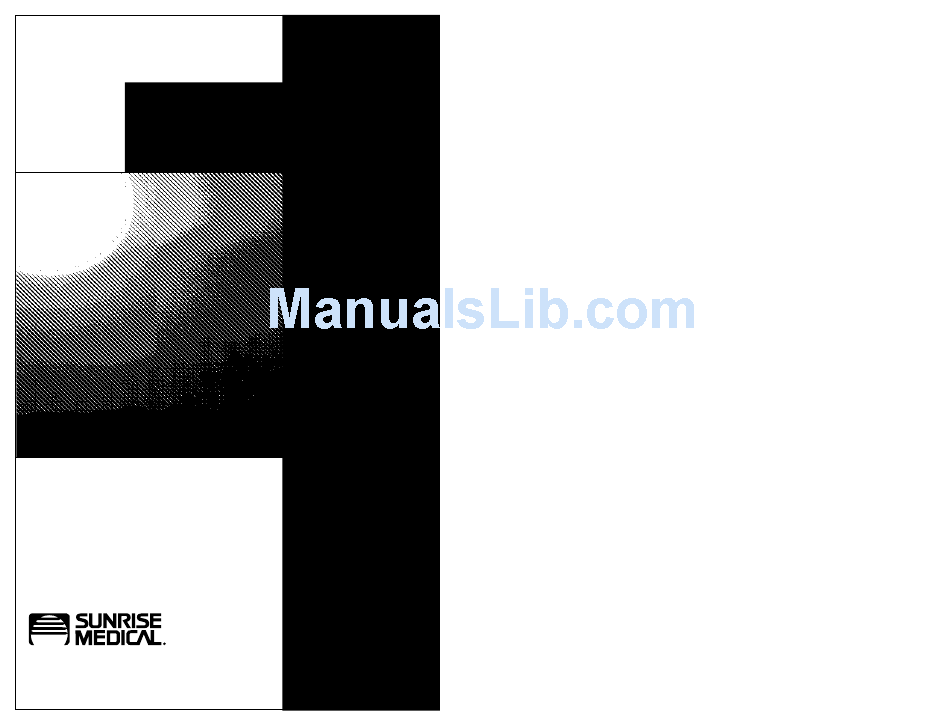

  • Page 1 Quickie V-521 User Instruction Manual & Warranty SUPPLIER: THIS MANUAL MUST BE GIVEN TO THE RIDER OF THIS WHEELCHAIR. RIDER: BEFORE USING THIS WHEELCHAIR READ THIS ENTIRE MANUAL AND SAVE FOR FUTURE REFERENCE.

  • Page 2: Table Of Contents

    I N T R O D U C T I O N 1 1 . T A B L E C O N T E N T S SUNRISE LISTENS 1. INTRODUCTION ................11. TABLE OF CONTENTS ..............Thank you for choosing a Quickie wheelchair.We want to hear your questions 111.

  • Page 3: Table Of Contents

    1 1 . T A B L E C O N T E N T S 1 1 1 . Y O U R C H A I R A N D I T S P A R T S i.

  • Page 4: Notice - Read Before Use

    1 1 1 . Y O U R C H A I R A N D I T S P A R T S 1 V . N O T I C E — R E A D B E F O R E U S E A.

  • Page 5: Emi (Electromagnetic Interference)

    • Security, fire and police radios at the time. • Cellular phones Contact: Sunrise Medical Customer Service Department at (800) 333-4000. • Lap-top computers with phone or fax • Other personal communication devices Note: These devices can transmit signals while they are on, even if not in use.

  • Page 6: General Warnings

    V I . G E N E R A L W A R N I N G S V 1 . G E N E R A L W A R N I N G S C. WEIGHT LIMIT Heed all warnings in this section. If you fail to do so a fall, tip-over or loss of control may 1.

  • Page 7: When Seated In A Parked Wheelchair

    V I . G E N E R A L W A R N I N G S V I . G E N E R A L W A R N I N G S H. WHEN SEATED IN A PARKED WHEELCHAIR K.

  • Page 8: Transfers

    V I . G E N E R A L W A R N I N G V I . G E N E R A L W A R N I N G S N. TRANSFERS O. REACHING OR LEANING It is dangerous to transfer on your own.

  • Page 9: Obstacles

    V I . G E N E R A L W A R N I N G S V I . G E N E R A L W A R N I N G S Q. OBSTACLES T. TO REDUCE THE RISK OF A FALL, TIP-OVER OR LOSS OF CONTROL: Obstacles you may have to overcome in daily use include door thresholds, lifts, ramps and hazards such as potholes and broken pavement.These can damage...

  • Page 10: Ramps At Home & Work

    V I . G E N E R A L W A R N I N G S V I . G E N E R A L W A R N I N G S U. RAMPS AT HOME & WORK W.

  • Page 11: Warnings: Components & Options

    V I I . W A R N I N G S : C O M P O N E N T S & O P T I O N S V I I . W A R N I N G S : C O M P O N E N T S &...

  • Page 12: Positioning Belts (Optional)

    V I I . W A R N I N G S : C O M P O N E N T & O P T I O N S V I I . W A R N I N G S : C O M P O N E N T S &...

  • Page 13: Tips For Attendants

    V I I I . T I P S F O R A T T E N D A N T S I X . S E T - U P , A D J U S T M E N T &...

  • Page 14: Tools You Will Need

    • 3/4" box and open-end wrench 3. If You Still Have A Problem: contact • 5/32" Allen wrench Sunrise Medical Customer Service at • 3/16" Allen wrench (800) 333-4000. • Phillips screwdriver #2 E. BATTERIES (See Section XI) •...

  • Page 15: Elevating Legrest (Optional)

    I X . S E T U P , A D J U S T M E N T & U S E I X . S E T - U P , A D J U S T M E N T &...

  • Page 16: Rear Wheel Locks (Optional)

    I X . S E T U P , A D J U S T M E N T & U S E O P E R A T I N G G U I D E Adjusting Armrest Receiver Fit A.

  • Page 17: Thermal Roll-Back

    O P E R A T I N G G U I D E O P E R A T I N G G U I D E E. INTEGRAL JOYSTICK C. THERMAL ROLL-BACK The standard integral joystick controls the Your chair has a thermal roll back circuit.

  • Page 18: Motor Locks

    O P E R A T I N G G U I D E X I . B A T T E R I E S Note: If your speed becomes hard to manage, release the Joystick and the chair will come A.

  • Page 19: Battery Charger

    X I . B A T T E R I E S X I . B A T T E R I E S B. BATTERY CHARGER C. ACID BURNS A battery charger produces a direct current (DC).When applied to a discharged Acid in batteries is corrosive.

  • Page 20: Charging Batteries

    X I . B A T T E R I E S X I . B A T T E R I E S 1. Use the charger that comes with your wheelchair. Read and follow all instruc- Never make direct contact across both battery terminals, as an explosion may occur. tions and warnings.

  • Page 21: Maintenance

    X I I . M A I N T E N A N C E X I I . M A I N T E N A N C E A. NOTES D. BATTERY MAINTENANCE 1. Proper maintenance will improve performance and extend the useful life of your chair.

  • Page 22: Pneumatic Tires

    X I I . M A I N T E N A N C E X I I . M A I N T E N A N C E E. PNEUMATIC TIRES 2. 12" Drive Wheels: a. Elevate and securely support chair so that wheel is off the ground. Release all air from tire.

  • Page 23: Wiring Diagram

    X I I I . W I R I N G D I A G R A M X I V . S U N R I S E L I M I T E D W A R R A N T Y Wiring Diagram Detail 1.
  • Page 24 7477 East Dry Creek Parkway • Longmont, Colorado • 80503 USA (800) 333-4000 In Canada (800) 263-3390 Manufactured under one or more of the following patents: U.S. Patent # 5,062,677; 5,149,173; 5,211,446; 5,352,023; 5,407,248; plus other foreign patents. © 2002, Sunrise Medical 12.02 930485 Rev. A...
