GE Monogram ZGU36N4RYSS Dimensions And Specifications page 3

Monogram. ™
ZGU36N4RYSS—36" Professional Gas Cooktop
Dimensions and Specifications (in inches)
34-7/8"
Adjacent Cabinet
and Countertop
Revised 7/97
26-5/8"
8-7/16"
22-3/4"
Counter Sunk
Screws

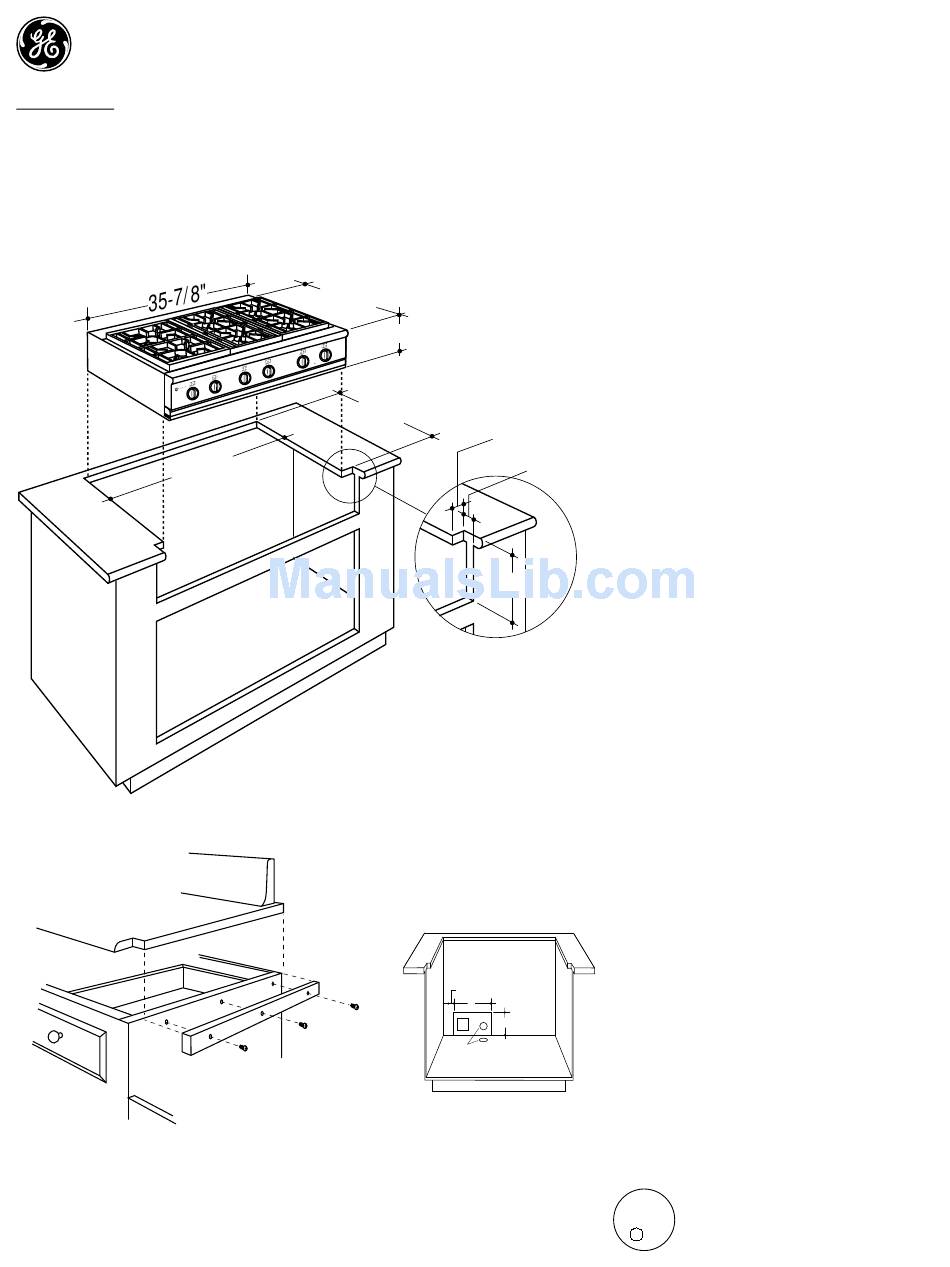

Cutting the Countertop Opening:
Measure carefully when cutting the countertop.
Make sure sides of the opening are parallel.
• This Monogram
fit in 36" or larger base cabinet.
• This cooktop requires 8" free space below
the countertop.
1/2"
• The cooktop is designed to hang from the
2-1/2"
countertop from its side flanges.
• Smooth any rough edges on the countertop
before installing cooktop.
–Formica countertop edges must be finished.
8"
The countertop must be strong enough to support
the weight of the cooktop.
• Support cleats can be secured to cabinet
sides OR build a support deck or box inside
the cabinet which will support the weight
of the cooktop.
–Build the support box using a solid material,
cut a 5" x 5" square in the left rear corner for
the gas inlet and power cord clearances.
Installation Information:
Before installing, consult installation instructions
(Pub. No. 49-8812) packed with product for current
dimensional data.
2"
7"
16"
Locate gas inlet on
back wall or on floor
2" from back wall
For answers to your Monogram,
GE, Hotpoint and RCA appliance questions,
call GE Answer Center
U L
R
™ gas cooktop is designed to
® GE Profile,
® service, 800.626.2000.
Listed by
Underwriters
Laboratories
™
