ZGU36N4RYSS—36" Professional Gas Cooktop

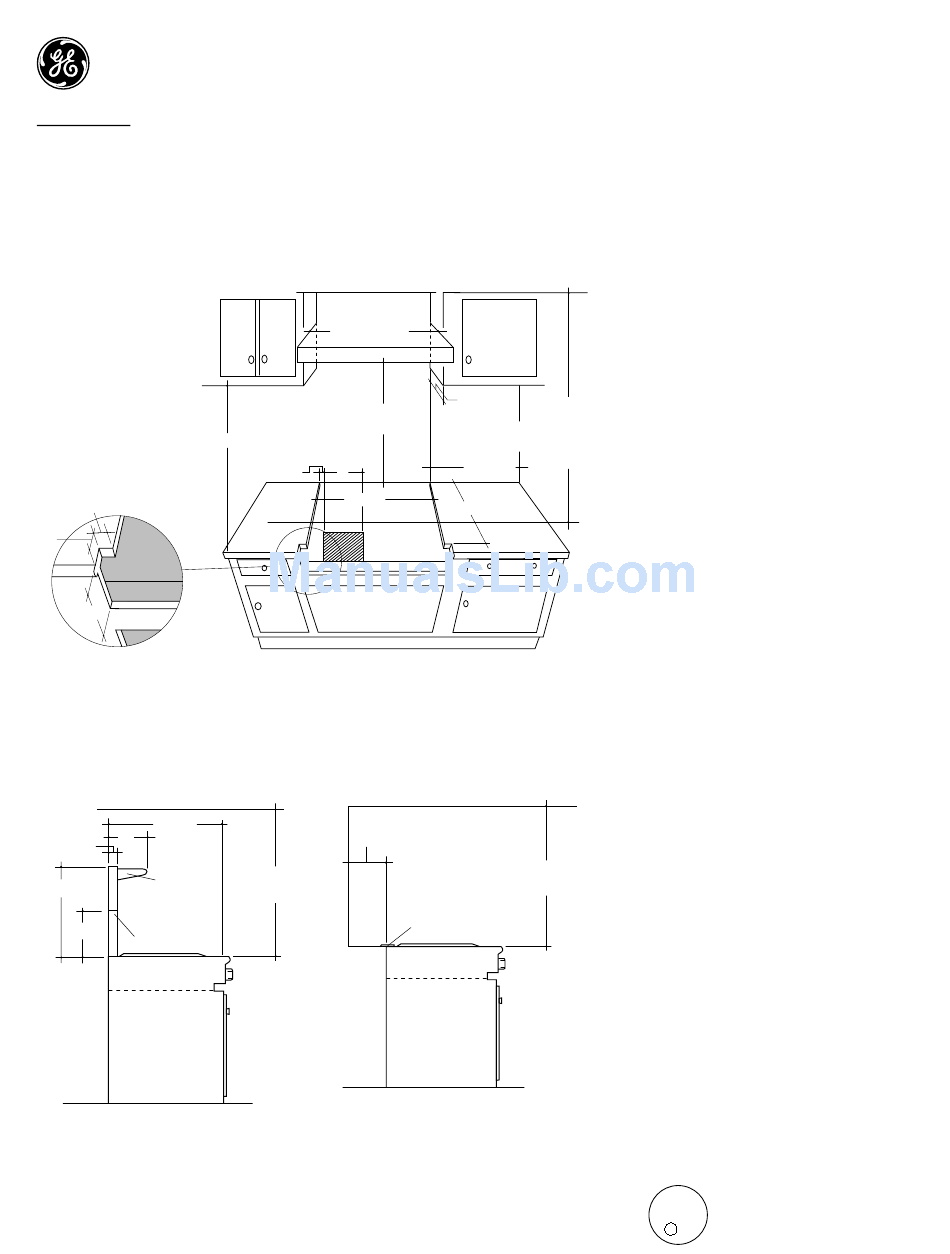

Dimensions and Specifications (in inches)
1/2"
2-1/2"
8"
26-5/8"
10"
2-1/2"
High
21-1/4"
Shelf
12"
Low Back
Revised 7/97
36" Wide Hood
30" Min.
36" Max.
18" Min.
2" 7"
34-7/8"
Cooking Surface
Electric/Gas
Supply
720Dia1
12" Min. to Combustibles
Without Backguard
36" Min.
to Combustibles
13" Max.
36" Min. to
Combustible
12" Min. to
Material From
Combustible
Cooking
Material
Surface
Each Side
22-3/4" Min.
36" Min.
to Combustibles
Island Trim
Advance Planning:
Refer to "Dimensions and Clearances" for
appropriate placement and necessary clearances
when planning the installation.
• Cabinetry cannot be installed directly above
the cooktop.
• This cooktop requires the installation of a vent
hood, 30" to 36" above the surface.
–The vent hood must be at least 24" deep.
–The vent hood must be the same width as
the cooktop.
–The 36" vent hood must provide at least
600CFM and up to 800CFM.
• Working areas adjacent to the range should
have 18" minimum clearance between
countertop and cabinet bottom.
• Clearance between cooktop and side wall or
combustible material must be at least 12" on
each side.
• This cooktop requires 8" free space below
the countertop.
• If the cooktop is installed in an island:
–Allow 12" min. clearance at the back to
combustible materials.
–Allow 36" min. above the cooking surface to
combustible materials.
• Installation must conform with local codes. In
the absence of local codes, the gas cooktop
must comply with the National Fuel Gas Code,
ANSI Z223.1, latest edition.
A.G.A. approved
For answers to your Monogram,
GE, Hotpoint and RCA appliance questions,
call GE Answer Center ® service, 800.626.2000.
