if you see streaks,
it is recommended
that the regulator
be turned to a lower number.
if water spots appear, it is recommended
that the
regulator
be turned
to a higher
number.
It)

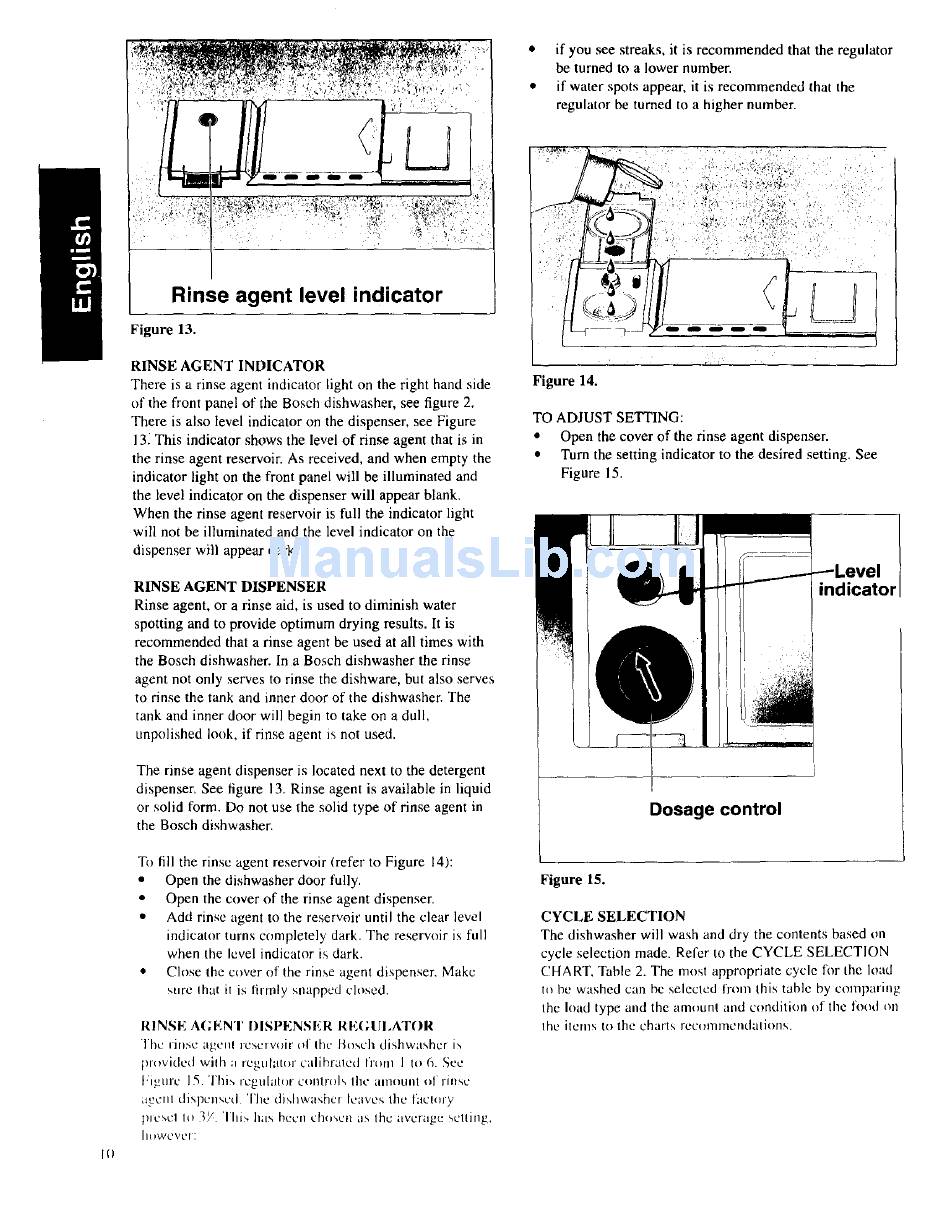

Rinse agent level indicator
Figure
13.
RINSE
AGENT
INDICATOR
There is a rinse agent indicator
light on the right hand side
of the front panel of the Bosch dishwasher,
see figure 2.
There is also level indicator
on the dispenser,
see Figure
13. This indicator
shows the level of rinse agent that is in
the rinse agent reservoir.
As received,
and when empty the
indicator
light on the front panel will be illuminated
and
the level indicator
on the dispenser
will appear blank.
When the rinse agent reservoir
is full the indicator
light
will not be illuminated
and the level indicator
on the
dispenser
will appear dark.
RINSE AGENT DISPENSER
Rinse agent, or a rinse aid, is used to diminish water
spotting and to provide optimum drying results. It is
recommended that a rinse agent be used at all times with
the Bosch dishwasher. In a Bosch dishwasher the rinse
agent not only serves to rinse the dishware, but also serves
to rinse the tank and inner door of the dishwasher. The
tank and inner door will begin to take on a dull,
unpolished look, if rinse agent is not used.
The rinse agent dispenser
is located
next to the detergent
dispenser,
See figure 13. Rinse agent is available
in liquid
or solid form. Do not use the solid type of rinse agent in
the Bosch dishwasher.
To fill the rinse agent reservoir
(refer to Figure
14):
Open the dishwasher
door fully.
Open the cover of the rinse agent dispenser.
Add rinse agen! to the reservoir
until the clear level
indicator
turns completely
dark. The reservoir
is full
when the level indicator
is dark.
Close the cover of Ihe rinse agent dispenser.
Make
sure
Ihal
JI
is
firmly snapped
closed.
RINSE
A(;ENT
DISPENSER
RE(;III,ATOR
lbc
l it_sc agenl
icsctvoir
of Ihc Bl_sch
dishwasher
is
plovidcd
with a rcgt]lat(_]
calihratcd
Irluu
I to 6. Sue
Fi_tuc
15. Thi,, rcgn[al(ir
controlh
Ihe aln(Innl
ol rinse
_cnl
dispensed
The dishwasher
leaves
tile lacl_)Jy
plC<,Cl h) 3/
'lids
has
hccrl ch(l<,cn as Ihc avclagc
sctlirlg,
h()wcvcl:
Figure 14.
TO ADJUST SETTING:
Open the cover of the rinse agent dispenser.
Turn the setting indicator to the desired setting. See
Figure 15.
indicator
Dosage control
Figure
15.
CYCLE
SELECTION
The dishwasher
will wash and dry the contents
based on
cycle selection
made. Rel;er to the CYCLE
SELECTION
CHART, Table 2. The most appropriate
cycle lor the load
to be washed can be seleclcd
fronl Ihis table by comparing
the load lype and the amounl and condition of tile food on
Ihe items to the charts rccoulmcndalions.
