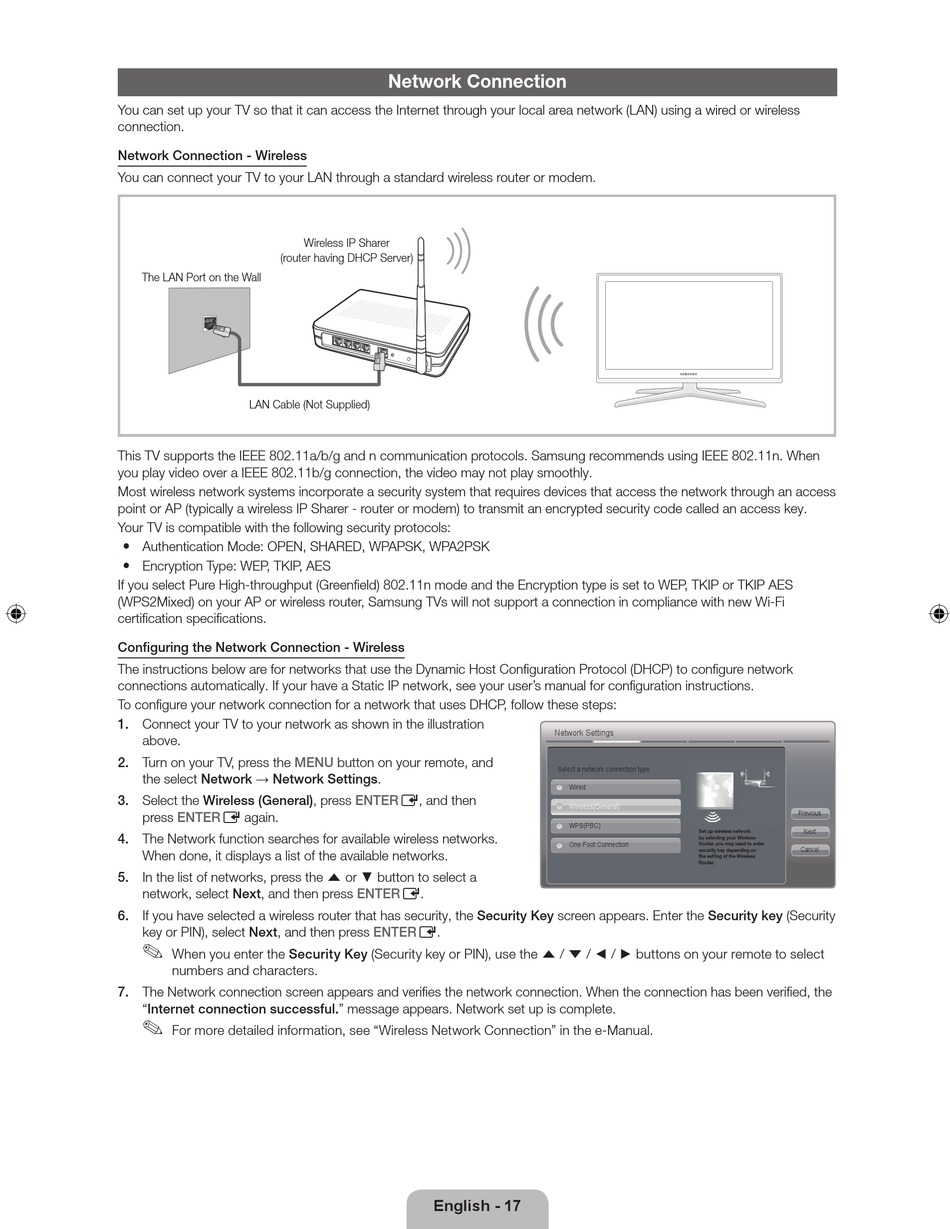

Network Connection - Samsung PN51D8000FFXZA Quick Manual

You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or wireless
connection.
Network Connection - Wireless
You can connect your TV to your LAN through a standard wireless router or modem.
(router having DHCP Server)
The LAN Port on the Wall
LAN Cable (Not Supplied)
This TV supports the IEEE 802.11a/b/g and n communication protocols. Samsung recommends using IEEE 802.11n. When
you play video over a IEEE 802.11b/g connection, the video may not play smoothly.
Most wireless network systems incorporate a security system that requires devices that access the network through an access
point or AP (typically a wireless IP Sharer - router or modem) to transmit an encrypted security code called an access key.
Your TV is compatible with the following security protocols:
y Authentication Mode: OPEN, SHARED, WPAPSK, WPA2PSK
y Encryption Type: WEP, TKIP, AES
If you select Pure High-throughput (Greenfield) 802.11n mode and the Encryption type is set to WEP, TKIP or TKIP AES
(WPS2Mixed) on your AP or wireless router, Samsung TVs will not support a connection in compliance with new Wi-Fi
certification specifications.
Configuring the Network Connection - Wireless
The instructions below are for networks that use the Dynamic Host Configuration Protocol (DHCP) to configure network
connections automatically. If your have a Static IP network, see your user's manual for configuration instructions.
To configure your network connection for a network that uses DHCP, follow these steps:
1. Connect your TV to your network as shown in the illustration
above.
2. Turn on your TV, press the
the select Network → Network Settings.
3. Select the Wireless (General), press ENTERE, and then
press ENTERE again.
4. The Network function searches for available wireless networks.
When done, it displays a list of the available networks.
5. In the list of networks, press the u or ▼ button to select a
network, select Next, and then press ENTERE.
6. If you have selected a wireless router that has security, the Security Key screen appears. Enter the Security key (Security
key or PIN), select Next, and then press ENTERE.
✎
When you enter the Security Key (Security key or PIN), use the u / d / ◄ / ► buttons on your remote to select
numbers and characters.
7. The Network connection screen appears and verifies the network connection. When the connection has been verified, the
"Internet connection successful." message appears. Network set up is complete.
✎
For more detailed information, see "Wireless Network Connection" in the e-Manual.

Network Connection

Wireless IP Sharer
MENU button on your remote, and
English - 17
Network Settings
Select a network connection type.
Wired
Wireless(General)
WPS(PBC)
Set up wireless network
by selecting your Wireless
One Foot Connection
Router. you may need to enter
security key depending on
the setting of the Wireless
Router.
Previous
Next
Cancel
