Basic operation

Chapter : Basic operation
EN

.1 First steps


1. Power connection
Take out power adapter from the package and connect it to the device.
2. Connection of TV audio output
The product is designed with multi-output, including composite (AV), component (YPbPr).
and HDMI. You can select different interfaces according to various needs. The product can
detect video output automatically, making the operation user-friendly and convenient.
Please refer to the following instructions how to connect to avoid any problem.

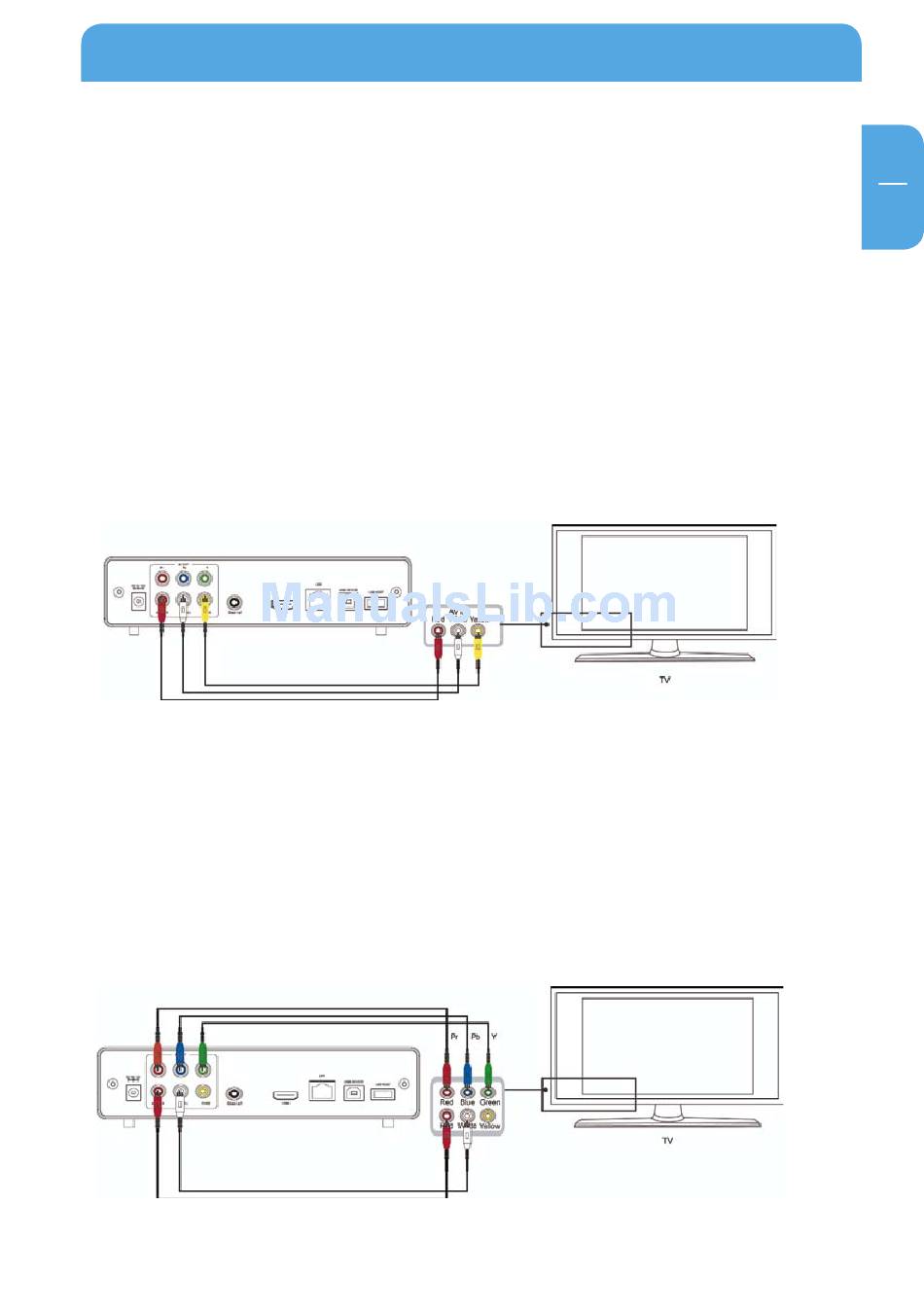

Composite output connection (AV)
Plug the yellow connector into the AV output of product and AV input of TV, and plug
the red and white connector into the audio input of TV or HIFI. Turn on the TV and select
AV mode. Turn on the product and TV displays the interface of initiation.
Component output connection (YPbPr)
Plug the YPbPr cable into the output of product and input of TV. Because the cable is
only for video signal, another AV cable is necessary. Plug the red and white connector of
AV cable into the audio output of product and audio input of TV or HIFI. Turn on TV and
select YPbPr mode. Turn on the product and TV displays the interface of initiation.
1
