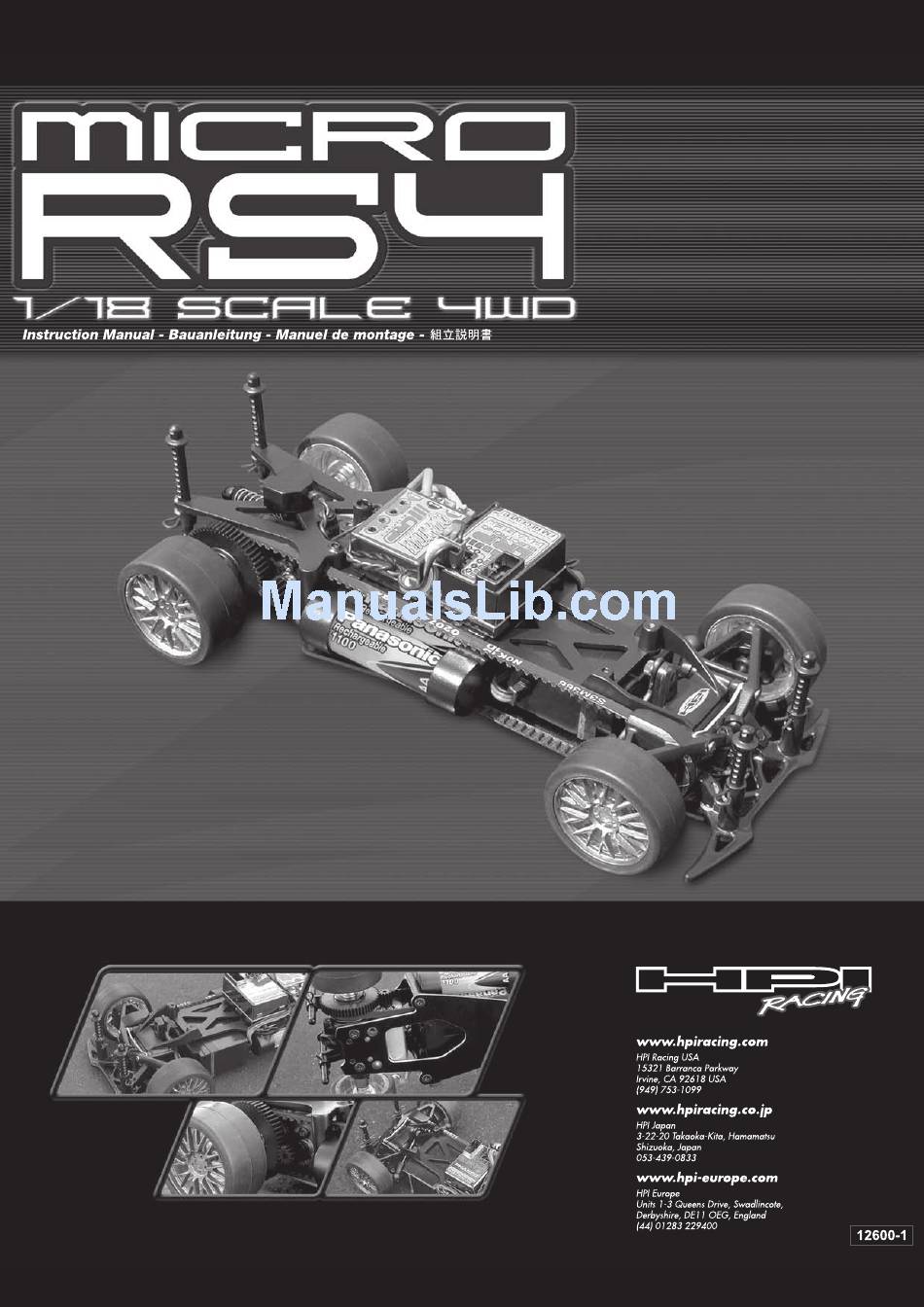

HPI Racing micro RS4 Instruction Manual
  1. Manuals
  2. Brands
  3. HPI Racing Manuals
  4. Motorized Toy Car
  5. micro RS4
  6. Instruction manual
HPI Racing micro RS4 Instruction Manual

HPI Racing micro RS4 Instruction Manual

1/18 scale 4wd
Hide thumbs Also See for micro RS4:

Advertisement

Quick Links

Download this manual

Advertisement

loading

Related Manuals for HPI Racing micro RS4

Summary of Contents for HPI Racing micro RS4

  • Page 5 Plastic Parts Plastikteile Pièces plastique 73403 73401 73402 73405 73404 73406 73407 73408 73409 73414...
  • Page 14 Z276a M2x6mm 73406 73406 Z276a Z276a 73401 Align tab and slot Z275d before tightening Z275d M2x5 screw. Richten Sie vor dem anziehen der Schraube den Schlitz und die Lasche aus. Aligner la patte et la fente avant de serrer les vis Use your finger to hold shaft in place.
  • Page 29 MICRO RS4 SPORT UPDATE MICRO RS4 SPORT UPDATE Mise à jour Micro RS4 Sport This chassis comes fully assembled. These instructions will show you how to install radio equipment. Das Chassis wir bereits montiert geliefert. Diese Anleitung erklärt, wie die Elektronik eingebaut wird. Le châssis est livré...
  • Page 30 Page Page Steering Servo Installation Einbau des Lenkservos Mise en place du servo de direction Seite Seite Page Page Use a rechargeable battery pack. #1072 Connector is not included. Verwenden Sie einen aufladbaren Akkupack. Der Stecker #1072 ist nicht enthalten. Utilisez un pack de batteries rechargeable Le connecteur Ref.1072 n'est pas inclus.

  • Page 31: Option Parts List

    ALUMINUM FRONT DIFF FRAME (MICRO RS4) 73435 MICRO SERVO SAVER SET (MICRO RS4) 4152 HPI MICRO PRO FOAM TIRE 14mm (A/MEDIUM) WITH DISH WHEEL WHITE 72450 BALL DIFFERENTIAL SET (MICRO RS4) 73436 STEERING LINK AND SERVO MOUNT SET (MICRO RS4)
  • Page 32 CHASSIS ALUMINIUM POUR DIFFÉRENTIEL AVANT (MICRO RS4) 73435 SAUVE SERVO MICRO RS4 4152 PNEU MOUSSE HPI MICRO PRO 14mm (A/MEDIUM) AVEC JANTE A VOILE PLEIN BLANCHE 72450 DIFFERENTIEL A BILLES (MICRO RS4) 73436 BIELLETTE DIRECTION ET SUPPORT SERVO MICRO RS4...
  • Page 33 MICRO RS4 SPORT UPDATE MICRO RS4 SPORT UPDATE Mise à jour Micro RS4 Sport This chassis comes fully assembled. These instructions will show you how to install radio equipment. Das Chassis wir bereits montiert geliefert. Diese Anleitung erklärt, wie die Elektronik eingebaut wird. Le châssis est livré...
  • Page 34 Page Page Steering Servo Installation Einbau des Lenkservos Mise en place du servo de direction Seite Seite Page Page Use a rechargeable battery pack. #1072 Connector is not included. Verwenden Sie einen aufladbaren Akkupack. Der Stecker #1072 ist nicht enthalten. Utilisez un pack de batteries rechargeable Le connecteur Ref.1072 n'est pas inclus.
  • Page 35 ALUMINUM FRONT DIFF FRAME (MICRO RS4) 73435 MICRO SERVO SAVER SET (MICRO RS4) 4152 HPI MICRO PRO FOAM TIRE 14mm (A/MEDIUM) WITH DISH WHEEL WHITE 72450 BALL DIFFERENTIAL SET (MICRO RS4) 73436 STEERING LINK AND SERVO MOUNT SET (MICRO RS4)
  • Page 36 CHASSIS ALUMINIUM POUR DIFFÉRENTIEL AVANT (MICRO RS4) 73435 SAUVE SERVO MICRO RS4 4152 PNEU MOUSSE HPI MICRO PRO 14mm (A/MEDIUM) AVEC JANTE A VOILE PLEIN BLANCHE 72450 DIFFERENTIEL A BILLES (MICRO RS4) 73436 BIELLETTE DIRECTION ET SUPPORT SERVO MICRO RS4...
