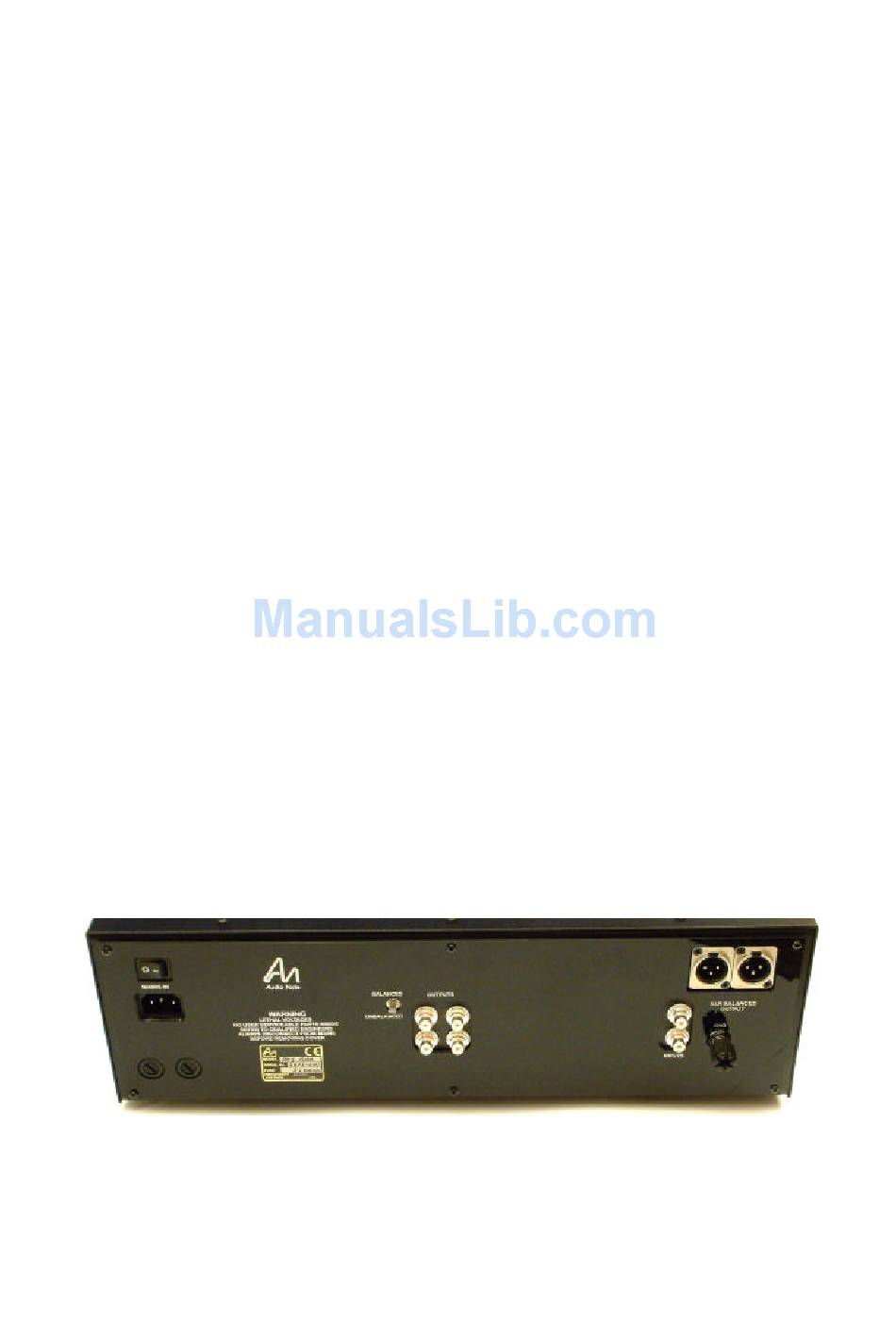

Connections

Please ensure that the M3 RIAA, the power amplifier and any source equipment is
switched off before making any connections.
NOTE: It is important that all connections are firm, secure and airtight; any
oxidisation of the interconnects will result in loss of performance. Always use high
quality interconnects; Audio Note interconnects are recommended, as they are
manufactured to the same exacting standards as all of our products.

Inputs

The M3 RIAA has one phono input, which consists of a pair of RCA connectors,
colour coded red for the right channel and white for the left channel.
The input is suitable for connection to a turntable with a moving magnet (MM) type
cartridge. Turntables with moving coil (MC) type cartridges will require a step-up
transformer between the turntable and the pre-amplifier; Audio Note produce some of
the best step-up transformers available.

Outputs

The M3 RIAA provides two unbalanced outputs; again, these outputs consist of a pair
of colour coded RCA connectors. The two outputs are for connections to a line level
pre-amplifier and are identical, making them suitable for biwiring.

Ground Post

A ground connection is provided to assist in the elimination of any ground loops that
may occur. A ground loop can be identified by excessive background hum. If you
experience a ground loop, try connecting the ground connection with that of other
system components. If the hum persists, contact your dealer.

Mains Power

An IEC power connector is located on the back of the M3 RIAA. Use the supplied
power cable to connect the pre-amplifier to the mains supply. Ensure the power is off
at the switch when you do this.
