Statistics
If the selected interface displays MIB-II I/F Statistics and you were expecting to see
RMON statistics, the RMON Default MIB component may be disabled; see the RMON
NOTE
User's Guide for information on how to check (and if necessary, change) the admin
status of the RMON Default MIB component.

RMON Statistics

The RMON Ethernet Statistics window
breakdown of traffic on the monitored Ethernet network. Statistics are provided
in both numerical and graphic format, and include peak values and the date and
time they occurred.
3-2

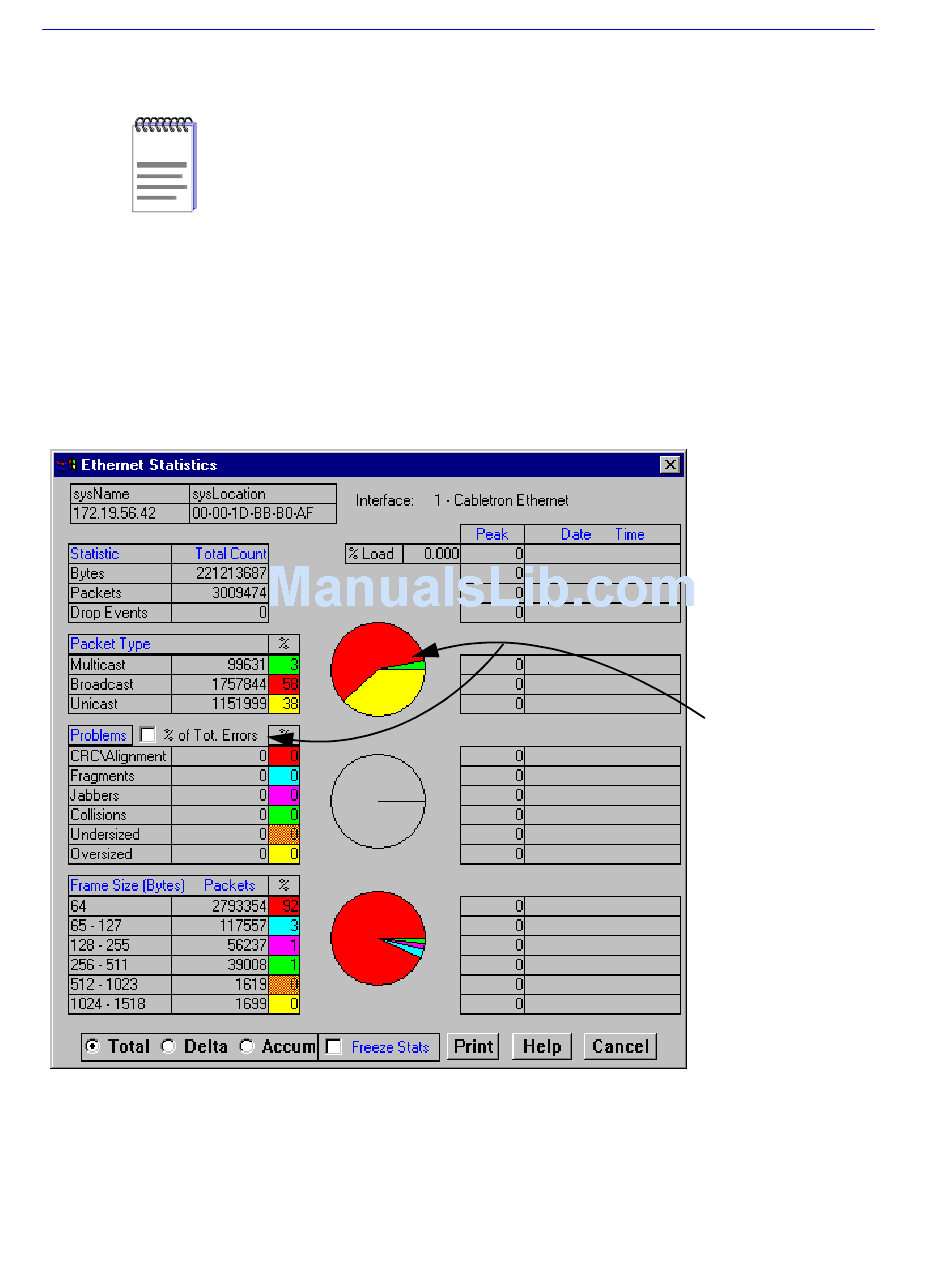

Figure 3-1. The Ethernet Statistics Window
(Figure 3-1) provides a detailed statistical
The Errors pie
chart will only be
display ed when
the % of Tot.
Errors option is
selected.
RMON Statistics
