2
Installing the Redundant Power Supply
To rack-mount devices:
1. Attach the brackets to the device using the screws provided in the Rack
Mounting Kit.
2. Mount the device in the rack, using four rack-mounting screws (not provided).
2-4

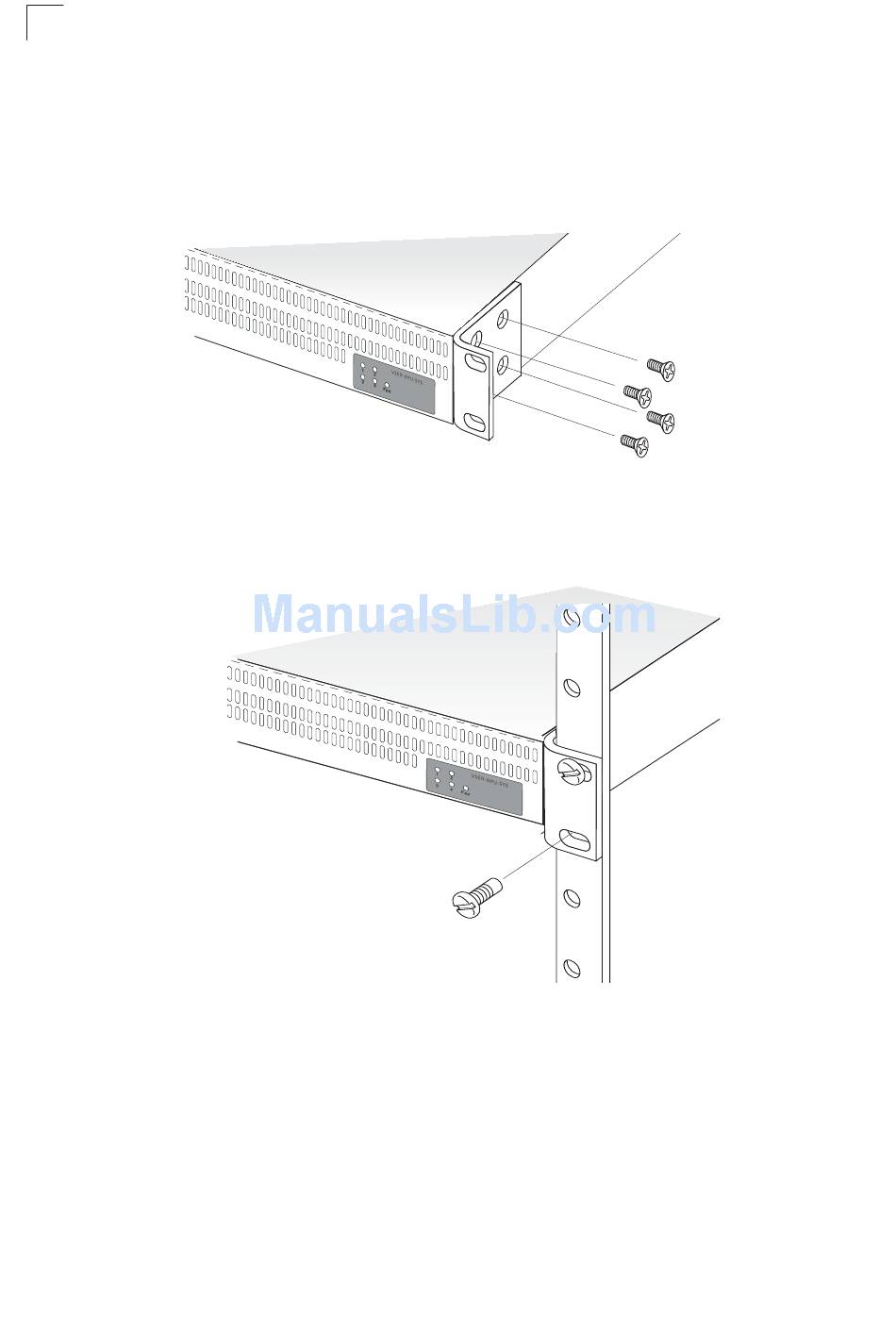

Figure 2-1. Attaching the Brackets

Figure 2-2. Installing the RPS in a Rack
