1
About the Redundant Power Supply

LEDs

The following diagram and table describe the functions of the LEDs on the Front
Panel.
LED
RPS 1, 2, 3, 4
Fan
1-2

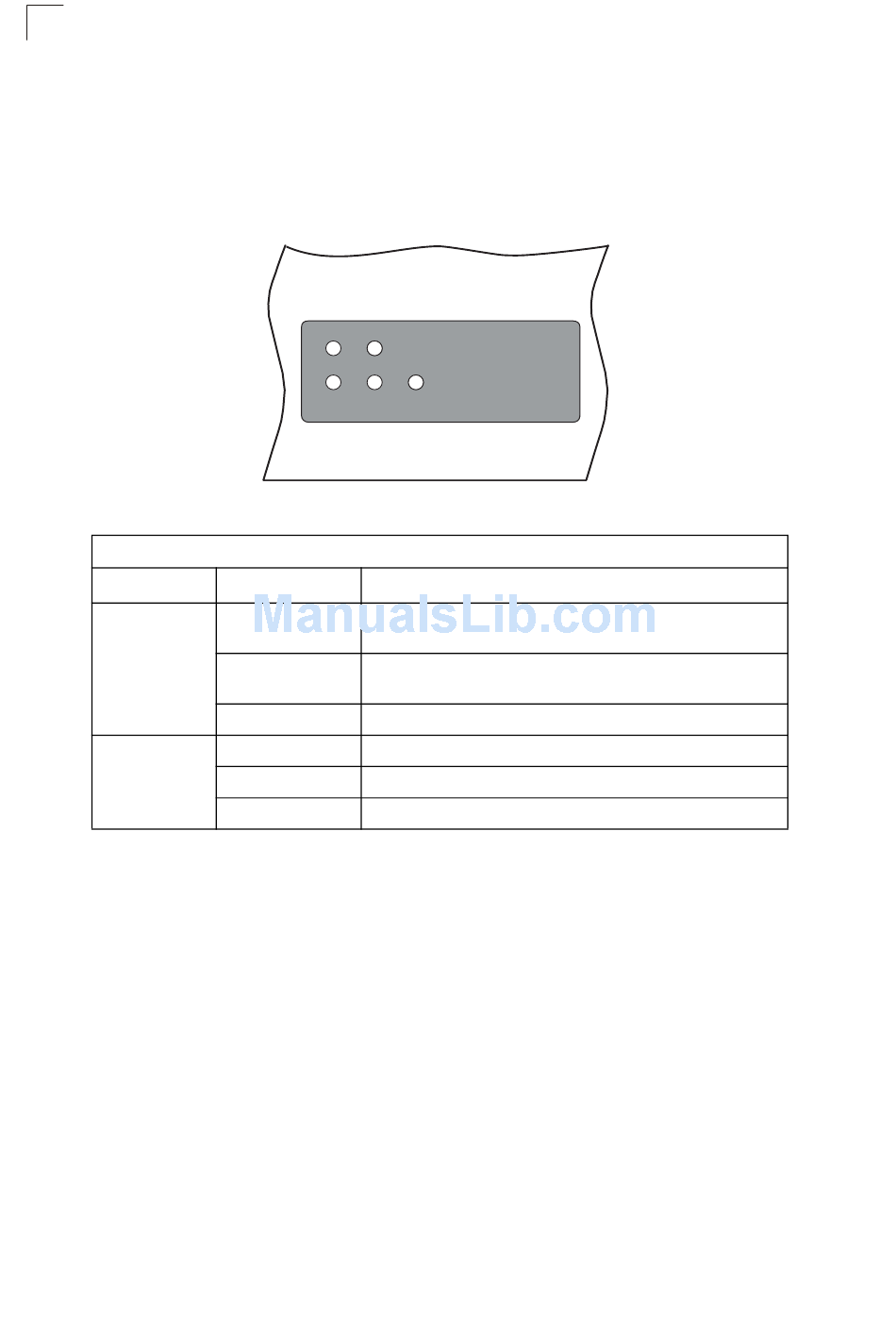

Figure 1-2. LEDs

1
2
3
4
Table 1-1. Port Status LEDs
Condition
Status
On Green
Power is being supplied to the RPS, the unit is functioning
normally, and the RPS port is connected to a switch.
Flashing Green
Power is being supplied to the RPS, the unit is functioning
normally, but no switch is connected to the RPS port.
Off
Power is off, or a failure has occurred.
On Green
The fans are functioning normally.
Flashing Red
One or more fans have failed.
Off
The unit is not connected to an AC power source.
VSER-RPU-SYS
Fan
