C2RPS-PSM Specifications

C2RPS-PSM Specifications

Refer to Table
Table A-2 C2RPS-PSM Specifications
Item
Electrical
AC Input Frequency Range
AC Input Voltage Range
Output Voltage
Output Current
Maximum Output Power
Physical
Dimensions
Net Weight (Unit Only)
Gross Weight (Packaged Unit)
MTBF

C2RPS-PSM Redundant Power Supply Output Connector

For pin location and function, refer to Figure A‐1 and Table

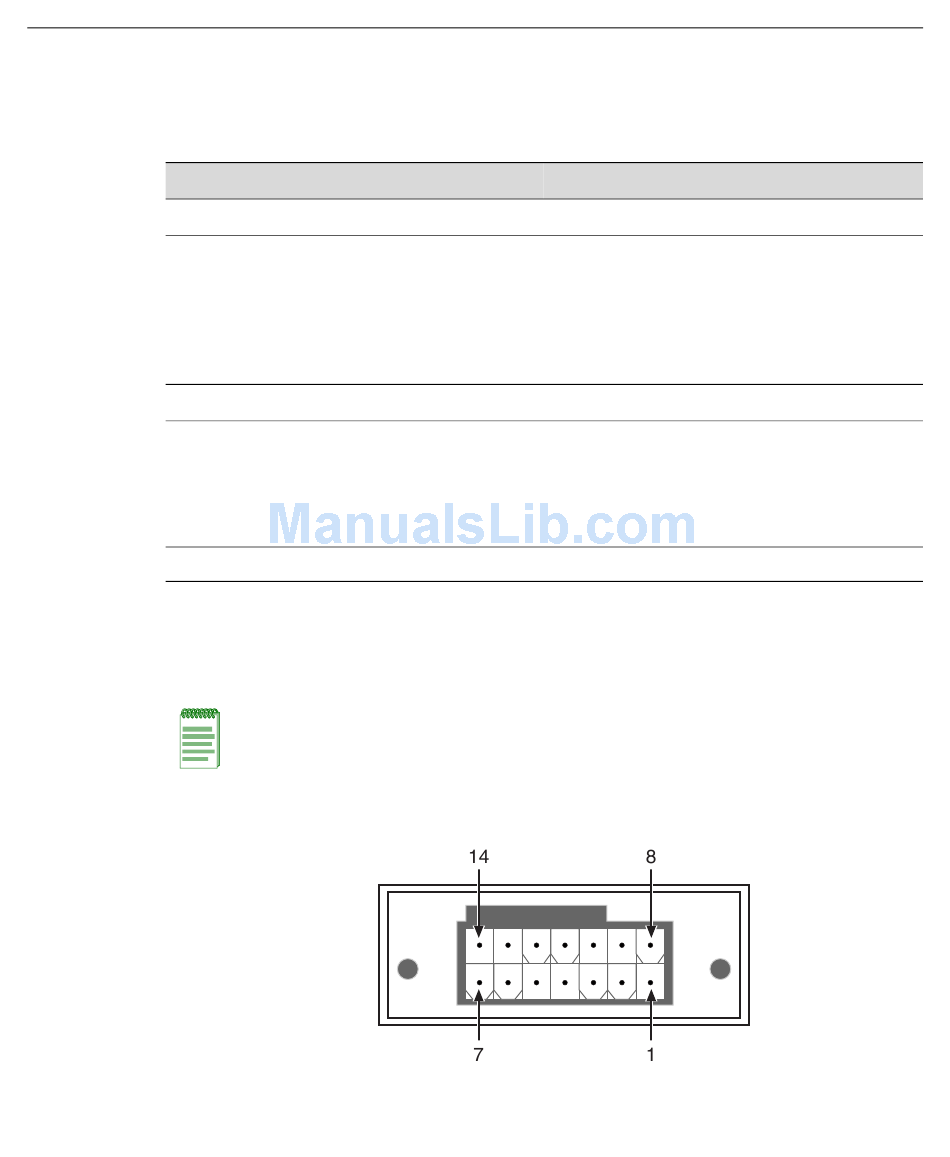

Figure A-1
A-2 Specifications
A‐2 for the input/output port specifications.
Note: The following information is for troubleshooting purposes only. For proper operation,
do not use any other cable except the C2RPS-PSM Cable. This cable is specially
designed for this application and meets all necessary Regulatory and Safety standards.
The use of non-approved cables will void your warranty.

C2RPS-PSM Redundant Power Supply Connector Pin Locations

Specification
47 - 63 Hz
85 - 264 Vac
12 Vdc
1.0 A min., 8.5 A or 13.0 A max.
102 W or 156 W continuous
19.6 H x 5.2 W x 25.7 D (cm)
7.7 H x 2.04 W x 10.1 D (in.)
1.75 kg (3.85 lb)
3.20 kg (7.04 lb)
300,000 Hours
A‐3, respectively.
