Connecting the PSM Cables and AC Power Cords

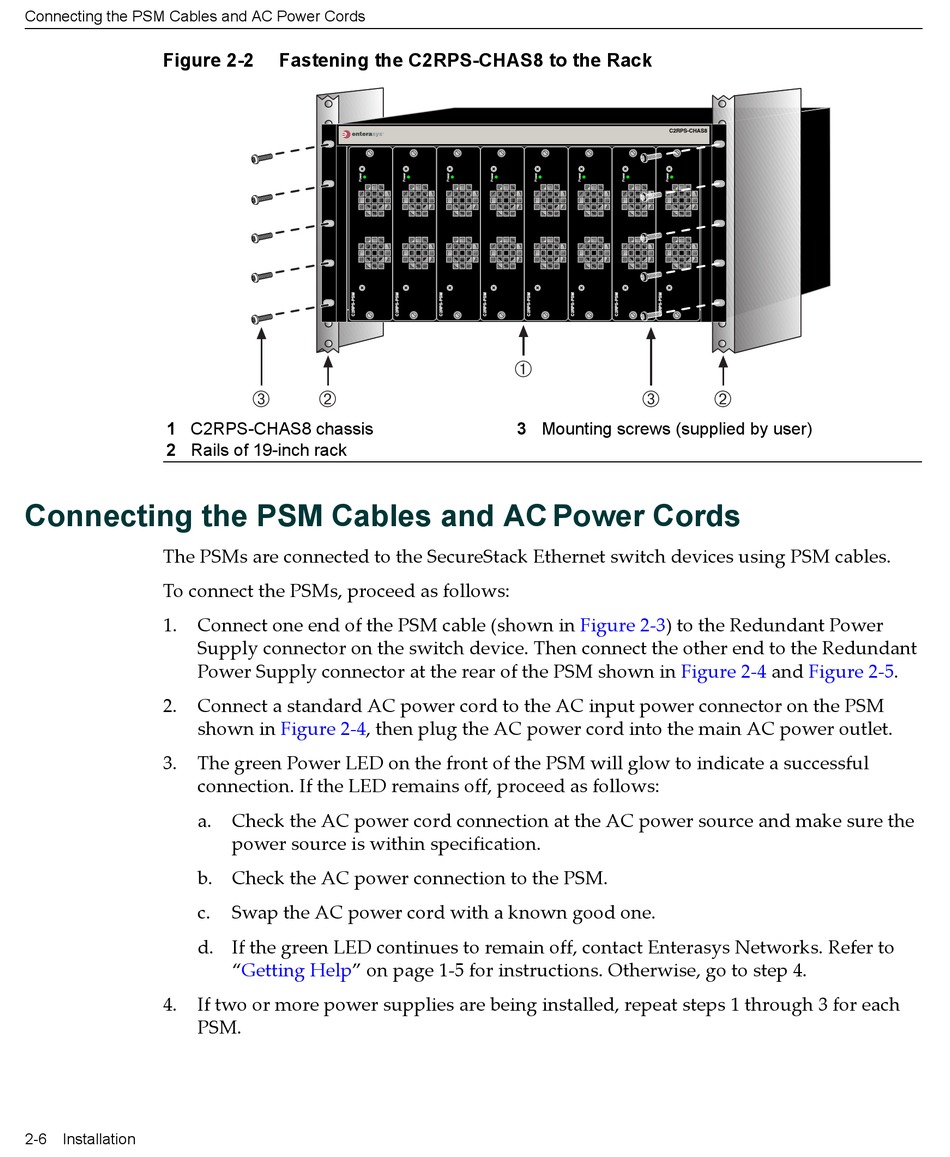

Figure 2-2
1 C2RPS-CHAS8 chassis
2 Rails of 19-inch rack
Connecting the PSM Cables and AC
The PSMs are connected to the SecureStack Ethernet switch devices using PSM cables.
To connect the PSMs, proceed as follows:
1. Connect one end of the PSM cable (shown in Figure
Supply connector on the switch device. Then connect the other end to the Redundant
Power Supply connector at the rear of the PSM shown in Figure 2‐4 and Figure
2. Connect a standard AC power cord to the AC input power connector on the PSM
shown in Figure
3. The green Power LED on the front of the PSM will glow to indicate a successful
connection. If the LED remains off, proceed as follows:
a.
b. Check the AC power connection to the PSM.
c.
d. If the green LED continues to remain off, contact Enterasys Networks. Refer to
4. If two or more power supplies are being installed, repeat steps 1 through 3 for each
PSM.
2-6 Installation

Fastening the C2RPS-CHAS8 to the Rack

 Á
2‐4, then plug the AC power cord into the main AC power outlet.
Check the AC power cord connection at the AC power source and make sure the
power source is within specification.
Swap the AC power cord with a known good one.
"Getting Help" on page 1‐5 for instructions. Otherwise, go to step 4.
À
Â
3 Mounting screws (supplied by user)
Power Cords
2‐3) to the Redundant Power
Á
2‐5.
