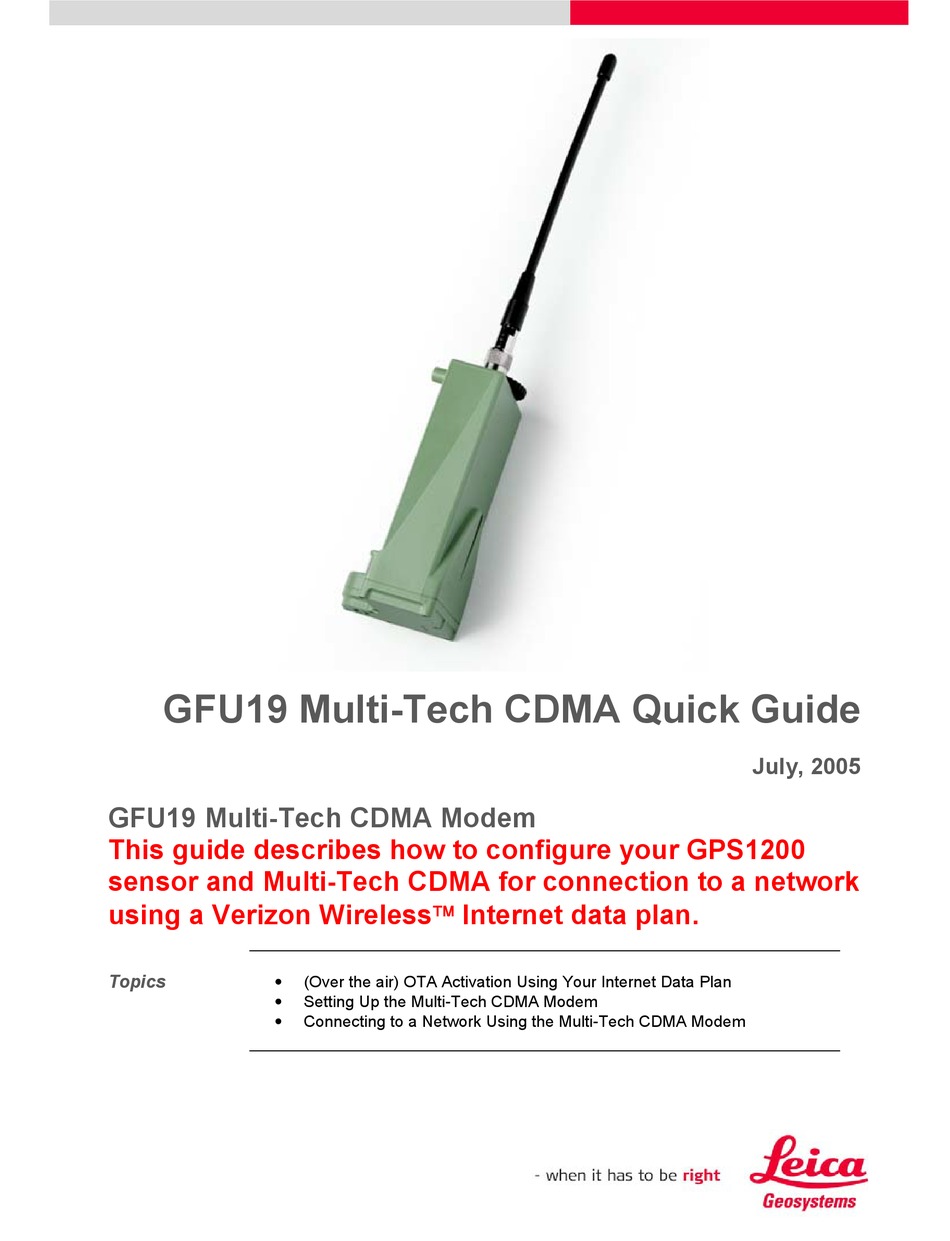

GFU19 Multi-Tech CDMA Quick Guide

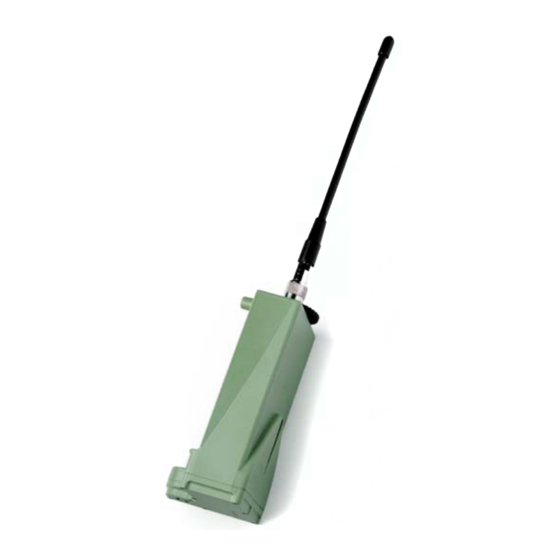

GFU19 Multi-Tech CDMA Modem
This guide describes how to configure your GPS1200
sensor and Multi-Tech CDMA for connection to a network
using a Verizon Wireless Internet data plan.
Topics
(Over the air) OTA Activation Using Your Internet Data Plan
Setting Up the Multi-Tech CDMA Modem
Connecting to a Network Using the Multi-Tech CDMA Modem
July, 2005
Advertisement
Related Manuals for Multitech GFU19
Summary of Contents for Multitech GFU19
- Page 1 GFU19 Multi-Tech CDMA Quick Guide July, 2005 GFU19 Multi-Tech CDMA Modem This guide describes how to configure your GPS1200 sensor and Multi-Tech CDMA for connection to a network using a Verizon Wireless Internet data plan. Topics (Over the air) OTA Activation Using Your Internet Data Plan Setting Up the Multi-Tech CDMA Modem Connecting to a Network Using the Multi-Tech CDMA Modem...
- Page 2 Table of Contents Introduction..........................3 OTA Activation Using Your Internet Data Plan ..............4 Setting Up the Multi-Tech CDMA Modem ................8 Connecting to a Network Using the Multi-Tech CDMA Modem ........16 GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005 Page 2/18...
-
Page 3: Introduction
Technical Reference Manual – this comprehensive manual provides detailed information on nearly all aspects of the GPS System 1200, including many of the procedures mentioned in this quick guide. GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005 Page 3/18... -
Page 4: Ota Activation Using Your Internet Data Plan
This takes you to the CONFIGURE Interfaces screen. From the CONFIGURE Interfaces screen: Highlight Real-Time and press the F3 (EDIT) button. This takes you to the CONFIGURE Real- Time Interface screen Continued on next page GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005 Page 4/18... - Page 5 Internet interface?” message might appear. If it does, press the F6 (YES) button. This returns you to the CONFIGURE Interfaces screen. Continued on next page GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005 Page 5/18...
- Page 6 Enter the Verizon number assigned to your modem in the My Phone No field. Press the F1 (CONT) button. This begins the modem activation process. Continued on next page GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005 Page 6/18...
- Page 7 If the modem activation process fails: Re-enter your phone number and Retry. Note: If modem activation still fails, refer to Appendix 1 for an alternative method of activation. GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005 Page 7/18...
-
Page 8: Setting Up The Multi-Tech Cdma Modem
This takes you to the CONFIGURE Interfaces screen. From the CONFIGURE Interfaces screen: Highlight Internet and press the F3 (EDIT) button. This takes you to the CONFIGURE Internet Interface screen. Continued on next page GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005 Page 8/18... - Page 9 From the CONFIGURE GPRS Internet Devices screen: Highlight MultiTech CDMA and press the F3 (EDIT) button. This takes you to the CONFIGURE Edit Device: Multitech CDMA screen. Continued on next page GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005 Page 9/18...
- Page 10 Note: These commands are correct for Verizon Wireless modems. Press the F1 (STORE) button to save the changes. This returns you to the CONFIGURE Edit Device: MultiTech CDMA screen. Continued on next page GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005 Page 10/18...
- Page 11 This returns you to the CONFIGURE Interfaces screen. In the CONFIGURE Interfaces screen: Press the F1 (CONT) button. This concludes the Multi-Tech CDMA setup and returns you to the Main Menu. GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005 Page 11/18...
-
Page 12: Connecting To A Network Using The Multi-Tech Cdma Modem
Press the F1 (CONT) button to save your settings. This returns you to the Interfaces screen. Continued on next page GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005 Page 12/18... - Page 13 Press the F1 (CONT) button to return to the Main Menu. In the Main Menu, select 1 Survey. This takes you to the Survey Begin screen. Continued on next page GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005 Page 13/18...
- Page 14 You should see the NET1: Successfully connected message at the bottom of the screen To disconnect, press the SHIFT - F3 (DISCO) button. Continued on next page GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005 Page 14/18...
- Page 15 This disables the connection with the reference station. You should see the NET1: Disconnected message at the bottom of the screen This concludes the Connecting to a Network Using the Multi-Tech CDMA section. GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005 Page 15/18...
- Page 16 Press the SHIFT button and the following screen appears. Press the F4 (CMND) button. This takes you to the CONFIGURE Send Command to Device screen Continued on next page GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005 Page 16/18...
- Page 17 10-digit Verizon MIN. This number may extend into the (CONT) field. AT+WCMT=1 Wait 10 seconds while the number is stored. ATD*22899; Starts OTA activation (INCLUDE SEMICOLON!) Continued on next page GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005 Page 17/18...
- Page 18 +WOTS: “SPL unlocked” +WOTP: “PRL download OK” +WOTM: “MDM download OK” +WOT2: “Programming Successful” Your Modem is now ready for use! GPS1200 GFU19 MultiTech CDMA Modem Quick Guide July, 2005 Page 18/18...
