Owner's Manual
Pneumatic
Cut-Off Tool
Model No.
875.199530
WARNING:
Before operating tool, read this
manual and follow all
Safety Recommendations
and
Operating Instructions.
Safety
,
Warranty
Features & Operation
Maintenance
EspaSol
Distributed by Sears,
www.Sears.com
Roebuck and Co., Hoffman Estates,
IL 60179

Advertisement

   Related Manuals for Craftsman 875.199530

   Summary of Contents for Craftsman 875.199530

  • Page 1

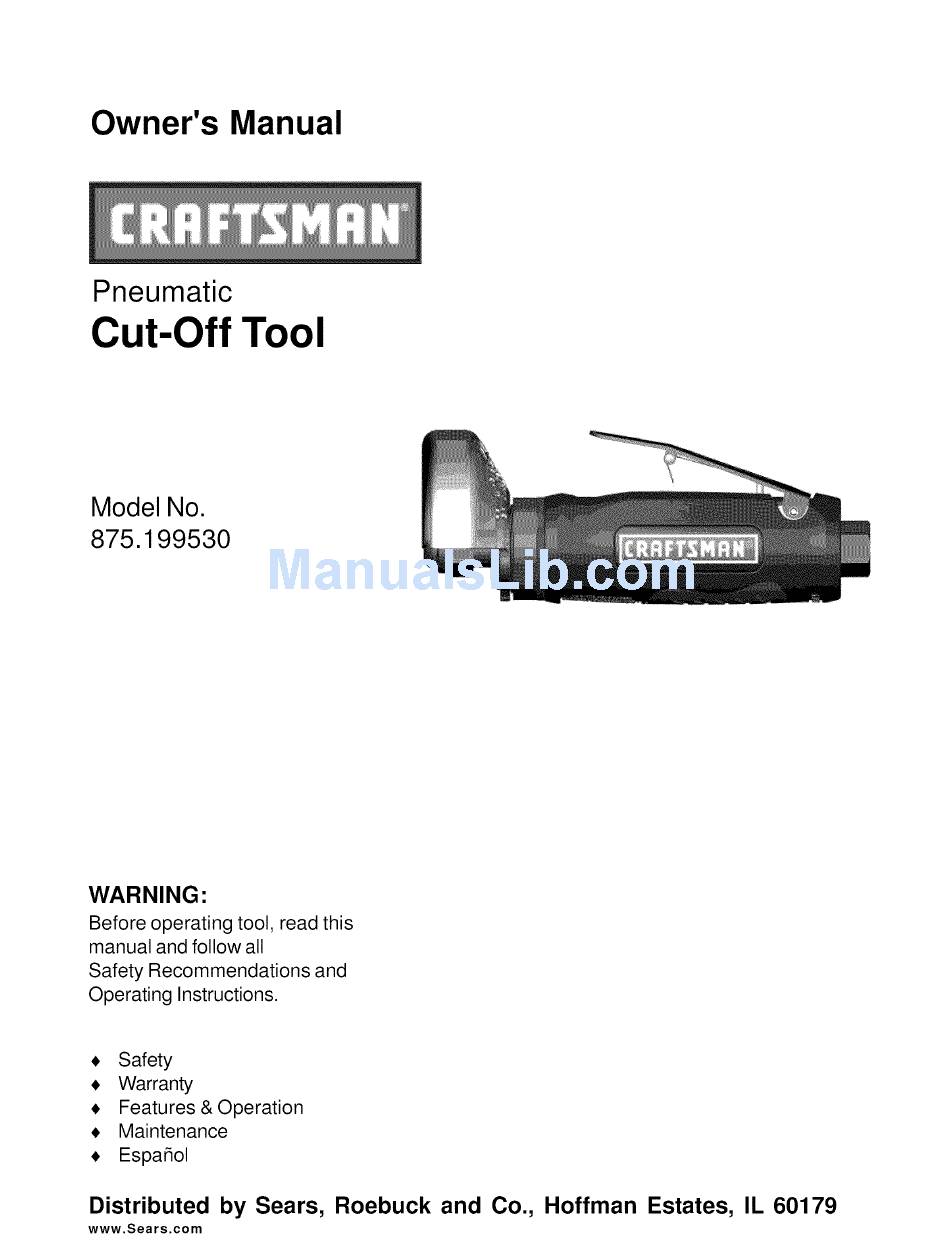

    Owner's Manual Pneumatic Cut-Off Tool Model No. 875.199530 WARNING: Before operating tool, read this manual and follow all Safety Recommendations Operating Instructions. Safety Warranty Features & Operation Maintenance EspaSol Roebuck and Co., Hoffman Estates, IL 60179 Distributed by Sears, www.Sears.com...

  • Page 2

    Read Operating Instructions CRAFTSMAN AIR-DRIVE TOOLS Please become familiar with all the instructions If this Craftsman tool fails to give complete satisfaction warnings before operating any pneumatic tool. within one year from the date of purchase, RETURN IT Always Wear Approved...

  • Page 3

    More than 1/100 slope Main line = 3 times Branch line =2times Filter Stop Tool inlet/hose size Tool inlet/hose size Regulator Valve Lubricator Auto Drain Va Ive Air Tool _Auto Drain Valve Figure1 Air Hose Hook Up Lubrication Do Not Operate Without Guard An in-line filter-regulator-lubricator...

  • Page 4

    Sears CRAFTSMAN Model 875.199530 Pneumatic 1/2" Cutt - Off Tool Exploded View and Parts List Ref. Part No. Description Q'ty Ref. Part No. Description O'ty Front end plate 113200 Hose adaptor 106120 Muffler disk 106280 Front bearing 8729113 Lock nut...

  • Page 5

    Troubleshooting 1. Flush the toot with air tool oil or gum Tool runs slowly or wilt not operate 1. Grit or gum in tool solvent. 2. No oil in tool 2. Lubricate the tool according to the lubrication instructions in this manual 3.

  • Page 6

    Manual del Propietario Herramienta Neumatica de Corte Modelo No. 875.199530 ADVERTENCIA: Antes de usar esta herramienta, lea este manual y siga todas las recomendaciones de seguridad instrucciones de operaci6n Seguridad Garantia Caracteristicas y operacl6n Mantenimiento Espafiol Distribuido por Sears, Roebuck and Co., Hoffman Estates, IL 60179...

  • Page 7

    Si no es posible determinar la exposici6n al nivel de ruido, se La Herramienta de Corte Neumatica Craftsman Modelo recomienda usar protecci6n auditiva. 875.199530 esta diseSada para cortar facilmente a traves de Evite una exposici6n...

  • Page 8

    Pendiente mayor de 1/100 Filtro-regulador- Linea principal = 3 veces Linea derivada = 2 veces Valvula lubricador el tama_o de la admisi6n/ el tama_o de la admisi6n/ de cierre manguera de herramienta manguera de herramienta Valvulal_ de cierre Vt Valvula de purga automatica Herramienta de...

  • Page 9

    Sears CRAFTSMAN Modelo 875.199530 Herramienta neumatica de corte de 1/2PULG Vista ampliada y lista de piezas Cant. Ref. Cant. Ref. No. de pieza Descripci6n No. de pieza Descripci6n Placa del extremo Adaptador de manguera 106120 Disco de silenciador 106280 delantero...

  • Page 10

    Localizacion y solucion de fallas La herramienta funciona lentamente o 1. En la herramienta hay polvo, Irrigue la herramienta con aceite o diluyente de resinas arena o resina. no funciona. para herramientas neumaticas. en diluyente. 2. En la herramienta no hay Lubrique la herramienta de acuerdo alas instrucciones aceite.

  • Page 11

    For the repair or replacement parts you need delivered directly to your home Call 7 am - 7 pm, 7 days a week 1-800-366-PART (1-800-366-7278) Para ordenar piezas con entrega a domicilio - 1-800-659-7084 For the location of a Sears Parts and Repair Center in your area Call 24 hours a day, 7 days a week 1-800-488-1222...
