PRODUCT DATASHEET

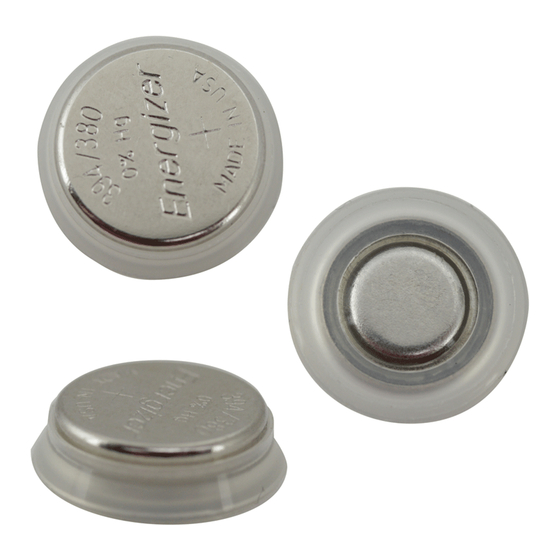

ENERGIZER 387S
Industry Standard Dimensions
mm (inches)
11.60 (0.457)
11.25 (0.443)
9.50 (0.374) Ref.
9.30 (0.366) Ref.
6.73 (0.265) Ref.
6.48 (0.255) Ref.
DESIGNED FOR USE ON CONTINUOUS LOW DRAIN
Typical Discharge Characteristics
Typical Performance at 21°C (70°F)
Schedule: Continuous
Typical Drain @1.55V:
0.103 milliamperes
Load: 15K ohm
1.7
1.6
1.5
1.4
1.3
1.2
1.1
1.0
0
125
250
Service, Hours
Schedule
Typical Drains
(milliamperes)
Continuous
This datasheet contains typical information specific to products manufactured at the time of its publication.
rm No. EBC - 8882EU
3.60 (0.142)
3.30 (0.130)
0.33 (0.013) Ref.
0.18 (0.007) Ref.
Plastic
Grommet
375
500
625
Load
Cutoff
at 1.55V
1.3V
(ohm)
(hours)
0.103
15K
600
Important Notice
©Energizer Holdings, Inc. - Contents herein do not constitute a warranty.
Specifications
Chemical System:
Silver Oxide (Zn/Ag
Designation:
IEC-SR42
Nominal Voltage:
1.55 Volts
Typical Capacity:
60 mAh* (to 1.3 volts)
Capacity Test:
15K ohm continuous drain at 21°C
Typical Weight:
1.0 grams
Typical Volume:
0.30 cubic centimeters
Impedance (40 Hz):
45 to 55 ohms
* Varies according to the applied load, temperature, and cutoff voltage.
Cross Section
Temperature Characteristics
Typical Performance at Low Discharge Rates
Service Effects
125
100
75
50
25
0
-20
0
Temperature (C)
Storage Effects
100
90
80
70
40 C
60
0
2
4
Storage Time (yrs)
+ 44 (0) 208 920 2306
1-800-383-7323 / USA
www.energizer-eu.com
1-800-383-7323 / CANADA
SILVER OXIDE
O)
2
Anode Cap
Gel Anode
Gasket
Can
Separator
Cathode
20
40
0 C
20 C
6
8
10
12
Page 1 of 1
