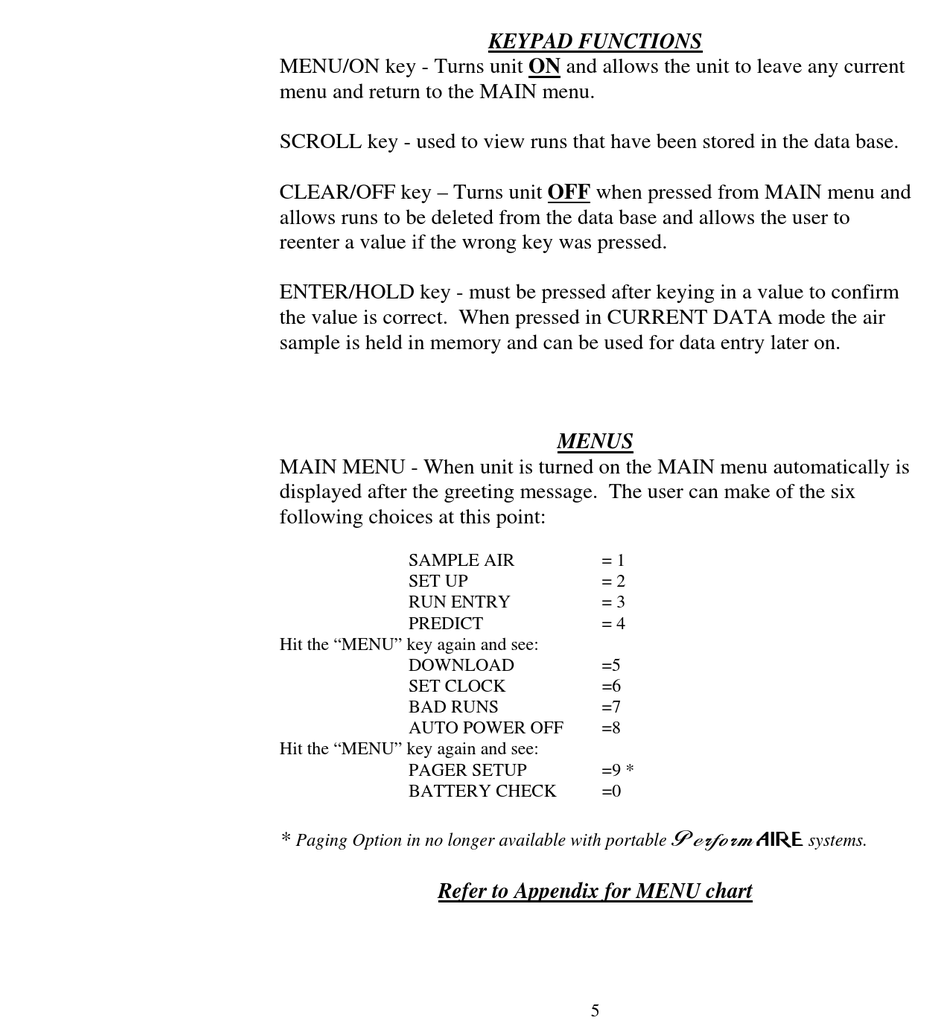

KEYPAD FUNCTIONS

MENU/ON key - Turns unit ON and allows the unit to leave any current
menu and return to the MAIN menu.
SCROLL key - used to view runs that have been stored in the data base.
CLEAR/OFF key – Turns unit OFF when pressed from MAIN menu and
allows runs to be deleted from the data base and allows the user to
reenter a value if the wrong key was pressed.
ENTER/HOLD key - must be pressed after keying in a value to confirm
the value is correct. When pressed in CURRENT DATA mode the air
sample is held in memory and can be used for data entry later on.
MAIN MENU - When unit is turned on the MAIN menu automatically is
displayed after the greeting message. The user can make of the six
following choices at this point:
SAMPLE AIR
SET UP
RUN ENTRY
PREDICT
Hit the "MENU" key again and see:
DOWNLOAD
SET CLOCK
BAD RUNS
AUTO POWER OFF
Hit the "MENU" key again and see:
PAGER SETUP
BATTERY CHECK
*
Paging Option in no longer available with portable
Refer to Appendix for MENU chart
MENUS
= 1
= 2
= 3
= 4
=5
=6
=7
=8
=9 *
=0
PerformBJSF
systems.
5
