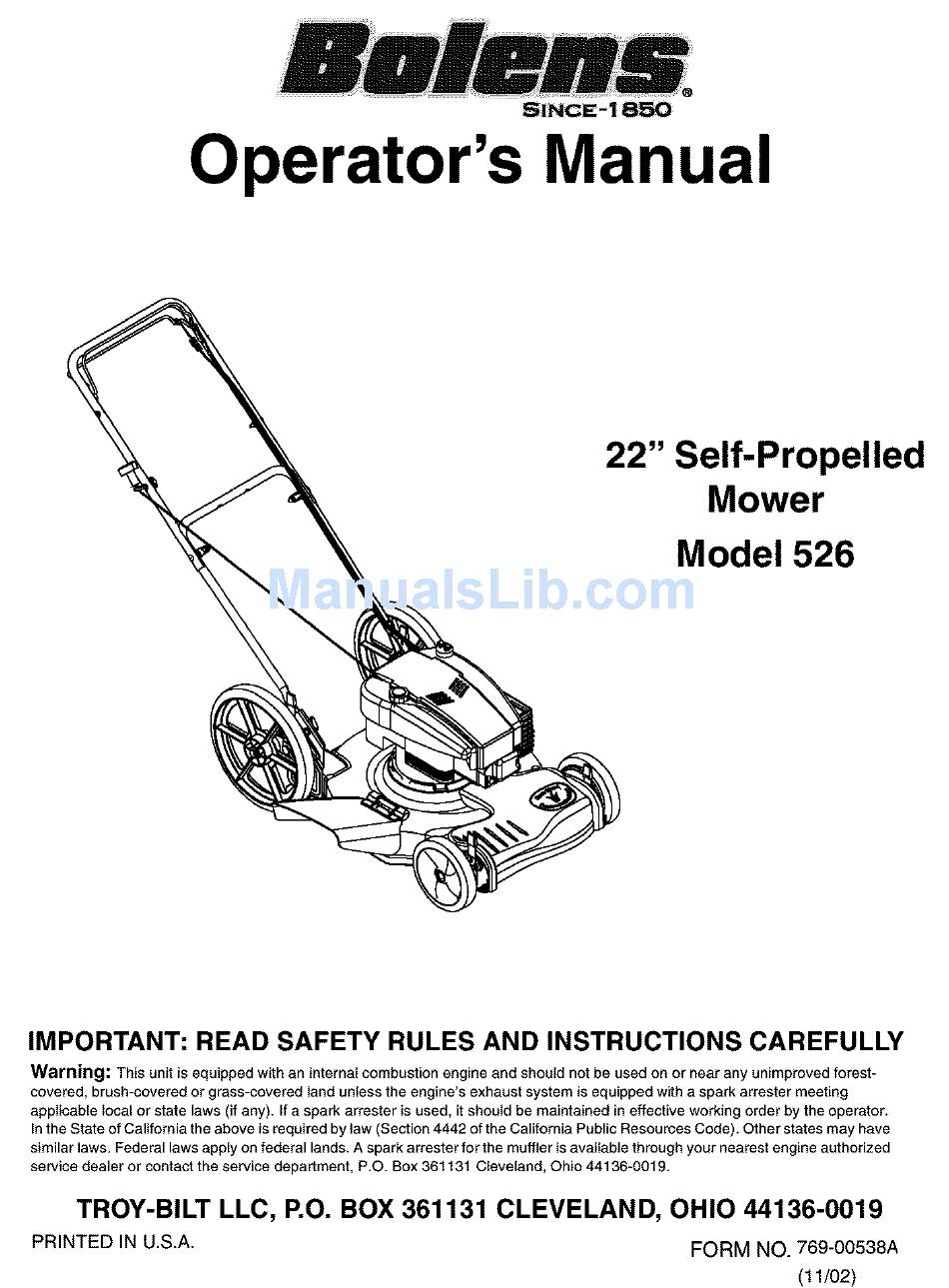

Operator's Manual
22" Self-Propelled
Mower
Model 526
IMPORTANT:
READ SAFETY RULES AND INSTRUCTIONS
CAREFULLY
Warning:
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved
forest-
covered, brush-covered
or grass-covered
land unless the engine's exhaust system is equipped with a spark attester meeting
applicable
local or state laws (if any). If a spark arrester is used, it should be maintained
in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department,
P.O. Box 361131 Cleveland, Ohio 44136-0019.
TROY-BILT
LLC, P.O. BOX 361131 CLEVELAND,
OHIO 44136-0019
PRINTED IN U.S.A.
FORM NO. 769-00538A
(11/02)
Advertisement
Related Manuals for Bolens 526
Summary of Contents for Bolens 526
- Page 1 Operator's Manual 22" Self-Propelled Mower Model 526 IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest- covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark attester meeting applicable local or state laws (if any).
-
Page 2: Table Of Contents
Copy the model number here: Copy the serial number here: P. O. BOX 361131 TROY-BILT CLEVELAND, OH 44136 www.bolens.com 330-558-7220 • 866-840-6483, ENGINE INFORMATION The engine manufacturer is responsible for all engine-related issues with regards to performance, power- rating, specifications, warranty and service. Please refer to the engine manufacturer's Owner's/Operator's Manual packed separately with your unit for more information. - Page 3 SECTION 1: IMPORTANT SAFEOPERATION P RACTICES WARNING: This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury.
-
Page 4: Slope Gauge
complete stop before r emoving thegrass c atcher or doorways, shrubs, trees, or other objects that may unclogging thechute. The cutting b lade continues to obscure your vision of a child who may run into the rotate f orafew seconds after t he engine i sshut o ff.Never mower. - Page 5 3. Check t he blade and engine m ounting bolts atfrequent Grass catcher components, discharge cover, and trail intervals for proper tightness. Also, visually inspect blade shield are subject to wear and damage which could for damage (e.g., bent, cracked, wom) Replace blade expose moving parts or allow objects to be thrown.
- Page 6 SIGHT AND HOLD THIS LEVEL WITH A VERTICAL TREE A POWER POLE A CORNER OF A BUILDING OR A FENCE POST 15 ° •5 WARNING ¢o _ Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet). A riding mower could o.
-
Page 7: Assembling Your Lawn Mower
SECTION 3: ASSEMBLING YOUR LAWNMOWER IMPORTANT: This unit is shipped without gasoline or oil • Tighten the wing nuts at the end of the lower handle to secure the handle to handle bracket assemblies. in the engine. Be certain to service engine with gasoline and oil as instructed in the separate engine manual See Figure 2. - Page 8 RemovingChuteRetainer NOTE: Install bottom inside chute opening (indicated by I in the figure below) before placing hooks The chute deflector on your mower is held in an upright over the hinge pin (indicated by 2 in the figure below). position by a retainer for shipping purposes only. Remove the retainer, following steps below, before running the mower for the first time.
-
Page 9: Know Your Lawn Mower
SECTION 4: KNOW YOUR LAWNMOWER RecoilStarter Read this operator's manual and safety rules before operating your lawn mower. Compare the illustration in The recoil starter is attached to the right lower handle. Figure 7 with your lawn mower to familiarize yourself Stand behind the unit and pull the recoil starter to start with the location of various controls and adjustments. - Page 10 SECTION 5: OPERATING Y OUR LAWNMOWER Towards BetterMowerPerformance Pour fresh, clean gasoline into the mower's gas Hold control handle down and pull rope firmly to tank until the tank is full. Do not use gasoline start the engine. that is more than 30 days old. Set cutting height adjustment lever to middle Make sure to connect the mower's spark plug...
-
Page 11: Making Adjustments
WARNING: If you strike a foreign object, Using YourLawnMower stop the engine. Remove wire from the Be sure that the lawn is clear of stones, sticks, wire, or spark plug, thoroughly inspect the mower other objects which could damage the lawn mower or for any damage, and repair the damage the engine. -
Page 12: Maintaining Your Lawn Mower
SECTION 7: MAINTAINING YOUR LAWNMOWER Customer R esponsibilities MAINTENANCE _e e SERVICE SCHEDULE ..._o_ ,.__o DATES Lubricate Wheels Lubricate Blade Control Clean Deck r¢ Blade Care Check Oil Change Oil ----. Replace Air Filter Clean Engine £_ Check Spark Plug Check Spark Arrester (if any) General R ecommendations Lubrication... - Page 13 IMPORTANT:We do not recommend the use of a pressure washer or garden hose to clean your unit. CuttingBlade Removal,Replacement,and Sharpening • When removing the cutting blade for sharpening or replacement, protect your hands with a pair of heavy gloves or use a heavy rag to hold the blade. •...
- Page 14 Theblade canbetested bybalancing i t ona round • Do not remove the screw completely, as you loosen shaftscrewdriver. Remove m etal f romtheheavyside the screw the tension on the belt will be released. untilitbalances e venly. I t is recommended thatthe •...
-
Page 15: Troubleshooting
• Coat mower's cutting blade with chassis grease to Off-Season Storage prevent rusting. The following steps should be taken to prepare your • Store mower in a dry, clean area. Do not store next lawn mower for storage. to corrosive materials, such as fertilizer. •... - Page 16 SECTION 9: NOTES...
- Page 17 Model526 45 44 35 -_D.-&...
- Page 18 Model526 Ref. Ref. Part No. Part No. Part Description Part Description 747-1214 Drive Control Handle 736-0524A Bell Washer 747-1161A Blade Control Handle 710-1257 Hex Cap Screw 3/8-24 x 1.5 746-1132 Blade Control Cable - B&S (40.75") 782-0584 Forward Height Adjustment Plate - RH Drive Control Cable 746-04048 741-0710...
- Page 20 MANUFACTURER'S LIMITED WARRANTY FOR: 0 TP J]nI':J ILT --- The limited warranty set forth below is given by Troy-Bilt LLC with respect to new merchandise purchased and used in the United States, its possessions and territories. Troy-Bilt LLC warrants this product against defects for a period of two (2) years commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in materials or workmanship.
