WARNING:
warning, and danger labels.
Para instrucciones en Español, refiérase al Manual
del Operador.
Tools Required
•
7⁄16-inch wrench (or adjustable wrench)
•
1⁄2-inch wrench (or adjustable wrench)
•
9⁄16-inch wrench (or adjustable wrench)
•
3⁄4-inch wrench (or adjustable wrench)
•
Flat-head screwdriver

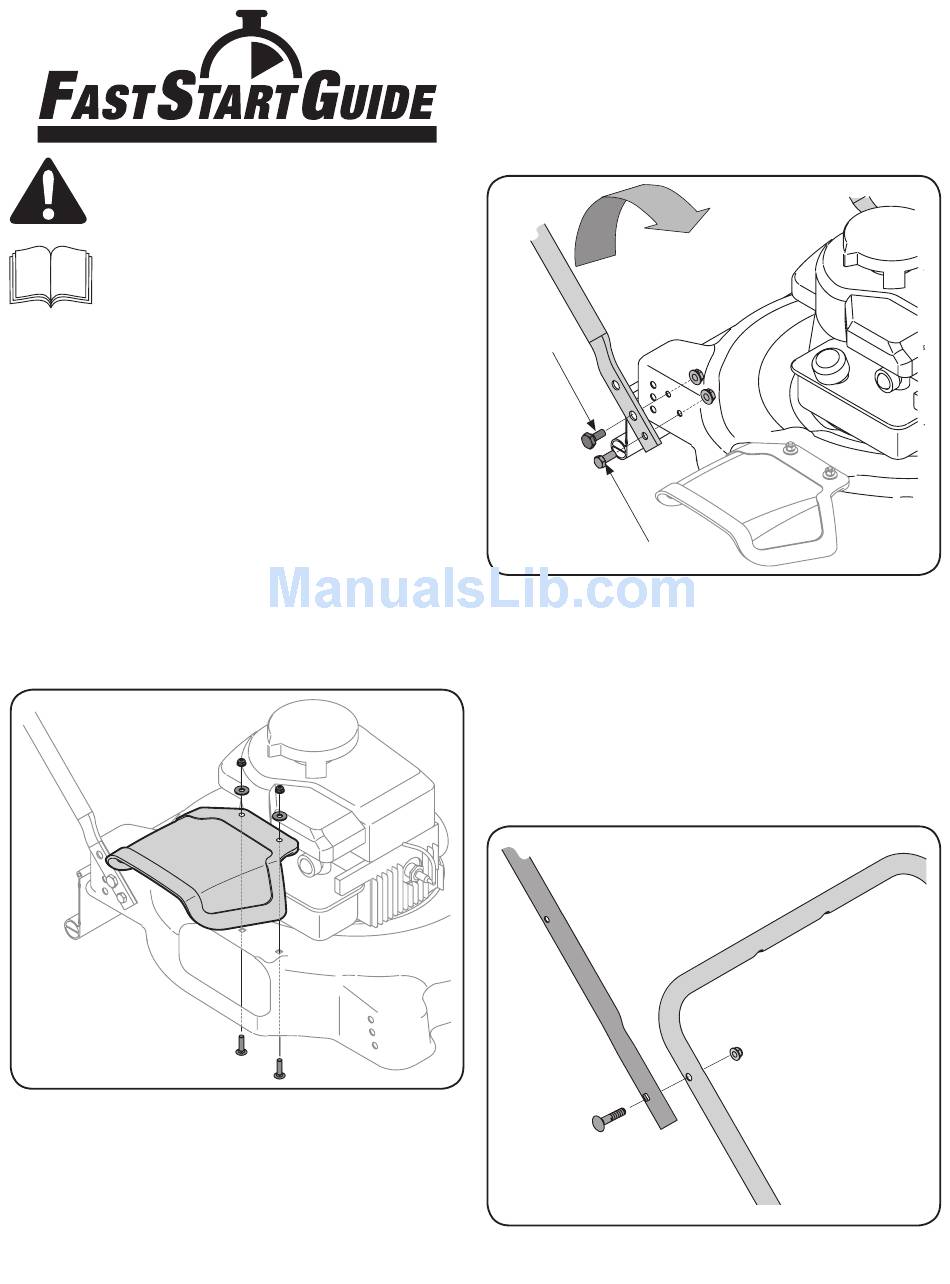

Chute Deflector Assembly
NOTE: Use the hardware in Group 1 to complete the following
steps. Refer to your Operator's Manual.
1.
Align the holes on the chute deflector with the
corresponding holes on the deck surface.
2.
Insert carriage screws up through the underside of the
deck and through the chute deflector. See Figure 3-1.
3.
Secure each screw with a washer and lock nut.
Lower Handle Assembly
NOTE: Use the hardware in Groups 2 and 4 to complete the
following steps.
Read and understand all instruction,
Figure 3-1
1.
Lift the rear of the deck and place it on a block of wood to
secure it.
2.
Place the lower handle over the deck and align the holes on
the deck with the corresponding holes on the handle.
3.
Pivot the lower handle forward and secure it to the deck
using the hex screws, shoulder screws, and flange lock
nuts. See Figure 3-2.
Shoulder
Screw
Hex Screw
Upper Handle Assembly
NOTE: Use the hardware in Groups 2 and 4 to complete the
following steps. Refer to your Operator's Manual.
1.
Place the upper handle in position over the lower handle
keeping the blade control handle facing up.
2.
Secure the upper handle to the lower handle using the
carriage bolts and lock nuts from Group 4 of the hardware
pack. See Figure 3-3.
Figure 3-2
Figure 3-3
Advertisement
Table of Contents
Related Manuals for Bolens 11A-020W765
Summary of Contents for Bolens 11A-020W765
-
Page 1: Lower Handle Assembly
Lift the rear of the deck and place it on a block of wood to secure it. Place the lower handle over the deck and align the holes on the deck with the corresponding holes on the handle. Pivot the lower handle forward and secure it to the deck using the hex screws, shoulder screws, and flange lock nuts. - Page 2 Wheels Gently squeeze the blade control inward and insert the straight end into the lower hole located on the left side of NOTE: Use the hardware in Group 3 to complete the following the upper handle. See Figure 3-5. steps. Refer to your Operator’s Manual. Check to confirm that the blade control pivots freely The holes in the deck provide three cutting heights.
- Page 3 Control Cable (Stud) Securing Control Cable NOTE: Use the hardware in Group 6 to complete the following Unwrap the control cable from the engine and route it under the steps. lower handle. WARNING: The cable must be routed properly to Securing Control Cable avoid contact with all sharp edges and hot surfaces.
-
Page 4: Starter Rope
Gas and Oil Fill-Up Pull up on the Z end of the brake cable and hook it into the control from the inside to outside. See Figure 3-9. Refer to the separate engine owner’s manual for additional Reattach the left side of the blade control. engine information.
