Mr. Heater MH200CV Operating Instructions And Owner's Manual

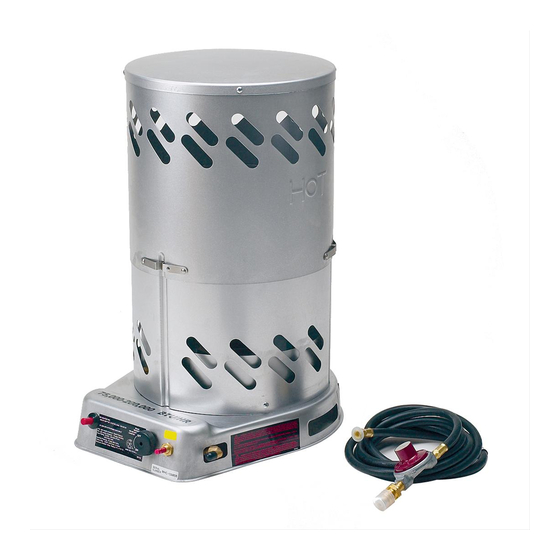

Mr. heater convection construction heater operating instruction models mh80cv mh200cv
Hide thumbs Also See for MH200CV:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Operation Manual
READ INSTRUCTIONS CAREFULLY: Read and follow all instructions. Place instructions in a safe
place for future reference. Do not allow anyone who has not read these instructions to assemble,
light, adjust or operate the heater.
CONVECTION
CONSTRUCTION HEATER
If the information in this manual is not followed exactly, a fire or explo-
WARNING:
sion may result causing property damage, personal injury or loss of life.
— Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
— An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appli-
ance.
— WHAT TO DO IF YOU SMELL GAS
•
Do not try to light appliance.
•
Extinguish any open flame.
•
Shut off gas to appliance.
— Service must be performed by a qualified service agency.
This is an unvented gas-fired portable heater. It uses air (oxygen) from the area in which it is used.
Adequate combustion and ventilation air must be provided. Refer to page 3.
OPERATING INSTRUCTIONS
AND OWNER'S MANUAL
MR. HEATER INC., 4560 W. 160TH ST., CLEVELAND, OHIO 44135 • 216-881-5500
Model #
MH80CV
MH200CV
05/03 Revision L1 #70486

Advertisement

Table of Contents
loading

Related Manuals for Mr. Heater MH200CV

Summary of Contents for Mr. Heater MH200CV

  • Page 1 This is an unvented gas-fired portable heater. It uses air (oxygen) from the area in which it is used. Adequate combustion and ventilation air must be provided. Refer to page 3. MR. HEATER INC., 4560 W. 160TH ST., CLEVELAND, OHIO 44135 • 216-881-5500 OPERATING INSTRUCTIONS AND OWNER’S MANUAL Model # MH80CV MH200CV 05/03 Revision L1 #70486...

  • Page 2: Table Of Contents

    SPECIFICATIONS Type of Gas: ... For use with Propane Only Gas Supply Pressure to regulator ... Max.: Bottle Pressure ... Min.: MH80CV regulator out ... MH80CV ... MH200CV = 11" W.C. (2.74 kPa) Ignition: ... Piezo Ignitor Minimum Ambient Temp. Rating ... 0°F (-17.8°C) Model: ...

  • Page 3: Operating Precautions

    Secure them from falling or being knocked over and protect them from damage. Locate propane containers at least (USA) 7 ft. (2.13m) for MH80CV and 9 ft. (2.7m) for MH200CV (Canada)10 ft. (3m) from the heater and do not direct exhaust toward containers.

  • Page 4: Odor Fade Warning

    ODOR FADE WARNING WARNING Asphyxiation Hazard • Do not use this heater for heating human living quarters. • Do not use in unventilated areas. • The flow of combustion and ventilation air must not be obstructed. • Proper ventilation air must be provided to support the combustion air requirements of the heater being used.

  • Page 5: Caution: Shell Extension Instructions

    CAUTION: NEVER IGNITE AND / OR RUN THIS HEATER UNLESS THE SHELLS ARE FULLY EXTENDED AND LOCKED INTO POSITION. STEP 1: HEATER AS RECEIVED OUT OF BOX.BEFORE LIFTING OUTER SHELL PROTECT HANDS. NEVER GRASP BARE METAL WITHOUT HAND PROTECTION. Make sure clip goes into slot in lower shell.

  • Page 6: Operating Instructions

    OPERATING INSTRUCTIONS PREPARING FOR OPERATION Extend the shell fully and lock into place as shown in the enclosed instructions sheet before lighting or operating the heater. Check the heater for possible shipping damage. If any is found, immediately notify the factory. Follow all of the Safety and Operating Precautions.

  • Page 7: Size And Capacity Of Propane Cylinders Required

    Move straight up to time of operation desired (left side of chart). Read the cylinder size required. All heaters should have: full cylinders good air circulation no frost on cylinders MH80CV Mr. Heater | Convection Construction Heater MH200CV Fuel Cylinder Capacity: 100# Operating Instructions and Owner’s Manual...

  • Page 8: Mh80Cv - Parts

    Mr. Heater • Convection Construction Heater • Model #MH80CV REF. # ITEM # Description 8634 Pilot LP Ass'y 6152 Hose Ass'y 8635 Burner Ring 8636 Ring Shield 8637 Fuel Tube Ass'y 8638 Pilot Tube Ass'y 2239 Upper Shell 8639 Orifice Adapter 8640 Bracket, Pilot Mounting 8641...

  • Page 9: Mh200Cv - Parts

    Mr. Heater • Convection Construction Heater • Model #MH200CV REF. # ITEM # Description 8645 Pilot LP Assemby 1591 Hose Ass'y, LP 8635 Burner Ring Assembly 8636 Ring Shield 8637 Fuel Tube Assembly 8638 Pilot Tube Assembly 2240 Upper Shell...
  • Page 10 Mr. Heater |Convection Construction Heater Operating Instructions and Owner’s Manual...
  • Page 11 Mr. Heater | Convection Construction Heater Operating Instructions and Owner’s Manual...

  • Page 12: Warranty

    ® ® MR. HEATER INC., 4560 W. 160TH ST., CLEVELAND, OHIO 44135 • 216-881-5500 Mr. Heater is a registered trademark of Enerco Group, Inc. ANSI Z83.7/CGA 2.14-2000 © 2003, Enerco/Mr. Heater. All rights reserved Mr. Heater |Convection Construction Heater Operating Instructions and Owner’s Manual...

This manual is also suitable for:

Mh80cv
