Disassemble Front Cover Module - Acer P5270 - XGA DLP Projector Service Manual

Projection system
Hide thumbs Also See for P5270 - XGA DLP Projector:
Table of Contents

Advertisement

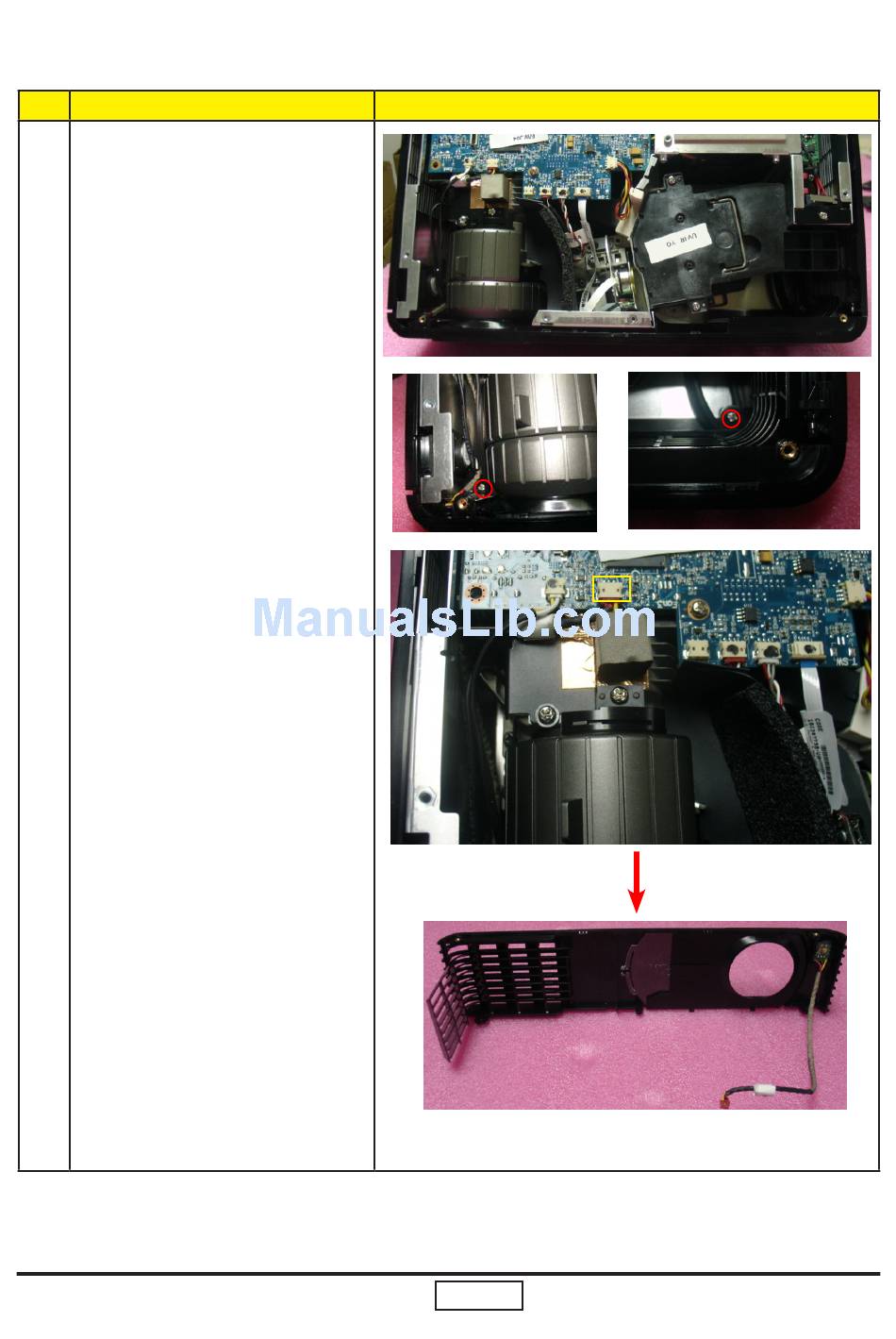

2-6 Disassemble Front Cover Module

No
Procedure
1
(1) Unscrew 2 screws
(as red circle)
(2) Unplug 1 connector
(as yellow square)
(3) Disassemble Front Cover
Module
Confidential
Front Cover Module
2-8
P5270/P5270 Refresh
