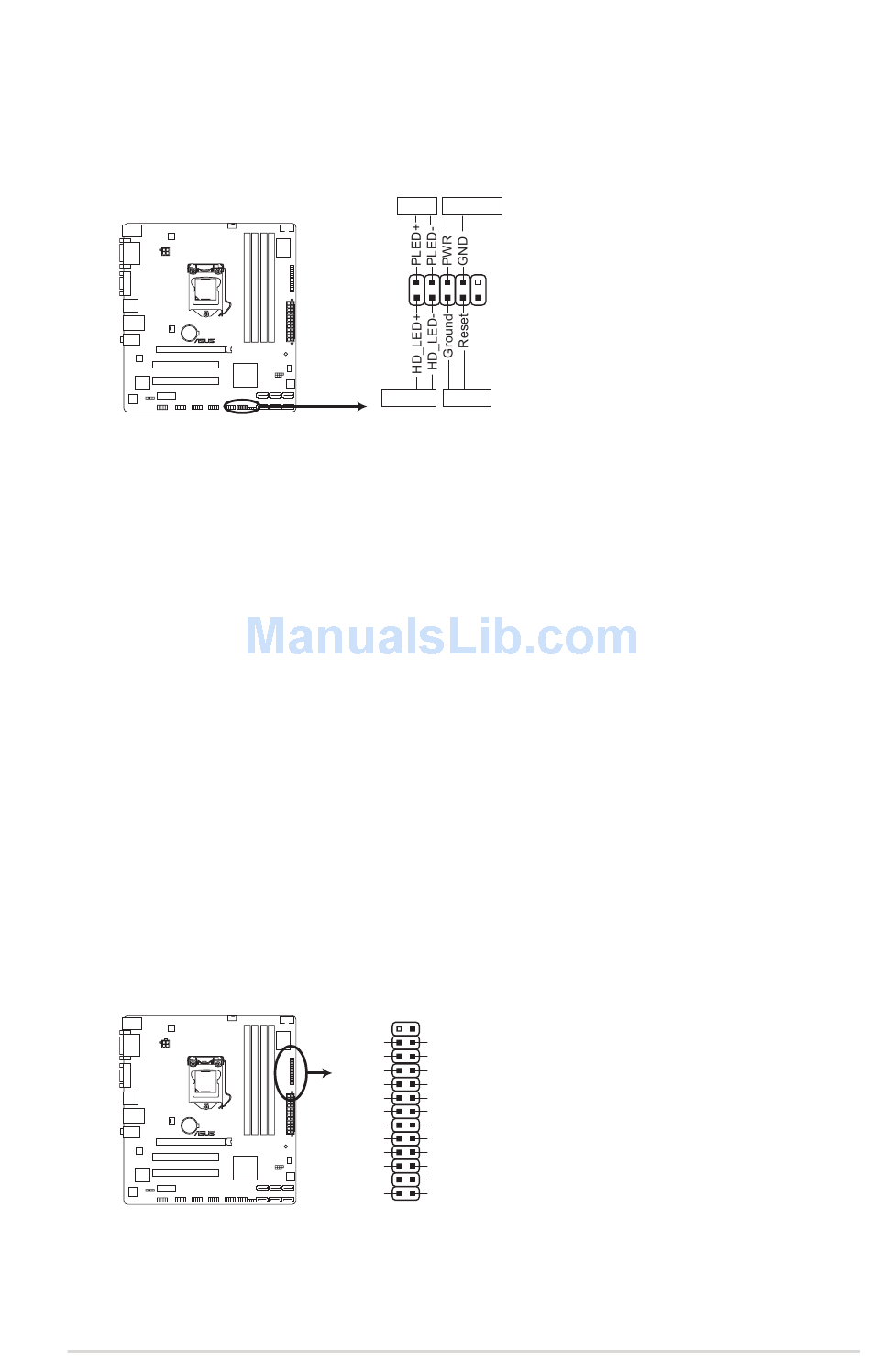

9. System panel connector (10-1 pin F_PANEL)
This connector supports several chassis-mounted functions.
P8H67-M2/TPM/SI
P8H67-M2/TPM/SI System panel connector
• System power LED (2-pin PLED)
This 2-pin connector is for the system power LED. Connect the chassis power LED
cable to this connector. The system power LED lights up when you turn on the system
power, and blinks when the system is in sleep mode.
• Hard disk drive activity LED (2-pin +HDLED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable
to this connector. The IDE LED lights up or flashes when data is read from or written to
the HDD.
• Power/Soft-off button (2-pin PWRBTN)
This 2-pin connector is for the system power button.
• Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without
turning off the system power.
10. LPT connector (26-1 pin LPT)
The LPT (Line Printing Terminal) connector supports devices such as a printer. LPT is
standardized as IEEE 1284, which is the parallel port interface on IBM PC-compatible
computers.
P8H67-M2/TPM/SI
P8H67-M2/TPM/SI LPT connector
Chapter 1: Product introduction
F_PANEL
PLED PWRBTN
PIN 1
+HDLED RESET
LPT
SLCT
GND PE
GND BUSY
GND ACK#
GND PD7
GND PD6
GND PD5
GND PD4
GND PD3
SLIN# PD2
INIT# PD1
ERR# PD0
AFD STB#
PIN 1
1-15
