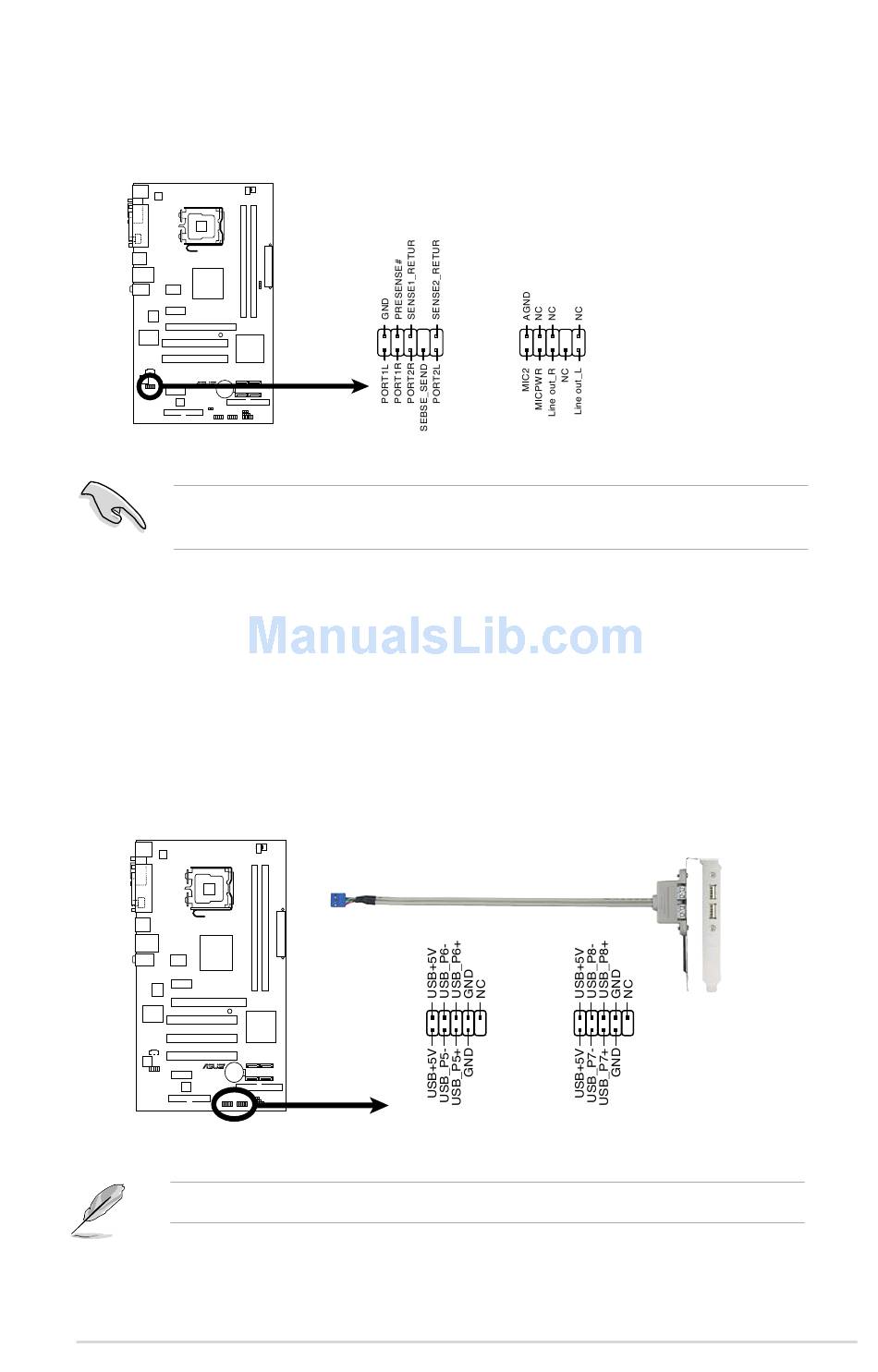

5.. Front.panel.audio.connector.(10-1.pin.AAFP)
This connector is for a chassis-mounted front panel audio I/O module that
supports either HD Audio or legacy AC'97 audio standard.
P5LD2-X/1333
P5LD2-X/1333.Front.Panel.Audio.Connector
We recommend that you connect a high-definition front panel audio module
to this connector to avail the motherboard high-definition audio capability.
6.. USB.port.connectors.(10-1.pin.USB56,.USB78)
These connectors are for USB 2.0 ports. Connect the optional USB module
cable to any of these connectors, then install the module to a slot opening at
the back of the system chassis. These USB connectors comply with USB 2.0
specification that supports up to 480 Mbps connection speed.
P5LD2-X/1333
P5LD2-X/1333.USB.2.0.Connectors
The USB cable is not included in this product.
ASUS P5LD2-X/1333
AAFP
HD-audio-compliant
compliant definition
pin definition
USB56 USB78
