IMPORTANT
This is a guide of product dimensions only.
For complete installation instructions, refer
to the manual provided with product.

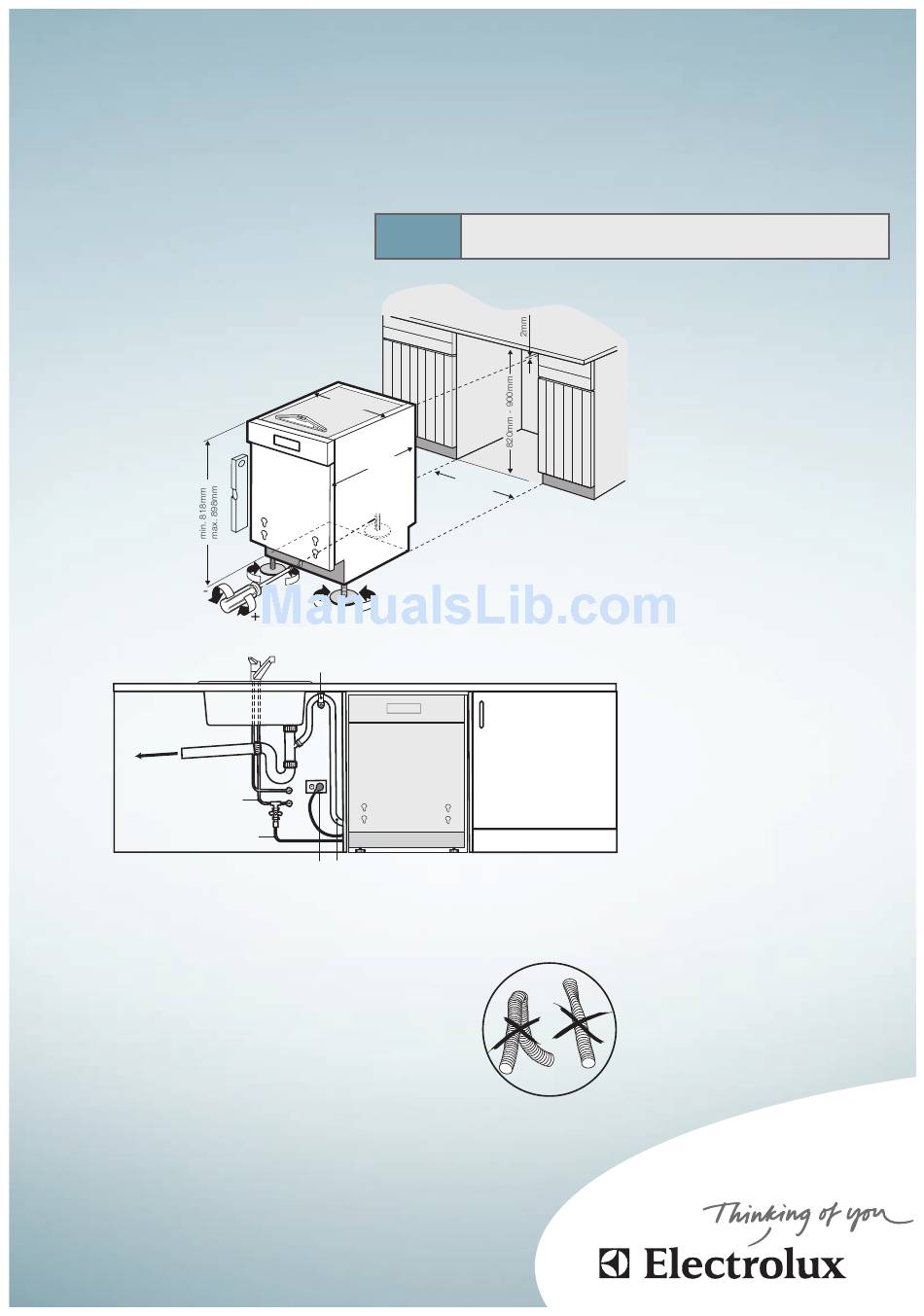

dishwasher dimensions and
pre-installation instructions
Note: Rear leg adjustment
via screw at front
Waste
Cold water supply
Inlet hose supplied
240V switched power outlet
Notes:
• If the floor is not level, the levelling legs should be adjusted to fit
• The dishwasher must be fixed to the cabinets with the screws provided
• The entire plastic membrane from the sink trap to be removed before
fitting and securing the drain hose
• Cold water connection is recommended
• Water flow rate10L/minute min.
• Water temperature 65° max.
• Water pressure cold, 50-800kPa
• Water pressure hot, 50-800kPa
All measurements in millimetres.
Page 1 of 2
Current as at Jul 2007.
© 2006 Electrolux Home Products Pty Ltd. EDIMDWEX401ISB

installation guide

electrolux E:Line built-in dishwasher
Model: EX401ISB
596mm
550mm
600mm
Loop drain hose and locate
10mm beneath benchtop
Drain hose supplied
Note: Hole at bottom of spigot on sink drain
must be drilled out completely. Position of
spignot from base of dishwasher floor must
be 300mm minimum. Maximum height of
drain hose from floor must be 1000mm.
Notes:
• Ensure that hoses are not crushed or
kinked under or behind the dishwasher.
• After connecting hose to the tap, turn
the tap on and check to ensure that
there are no leaks.
