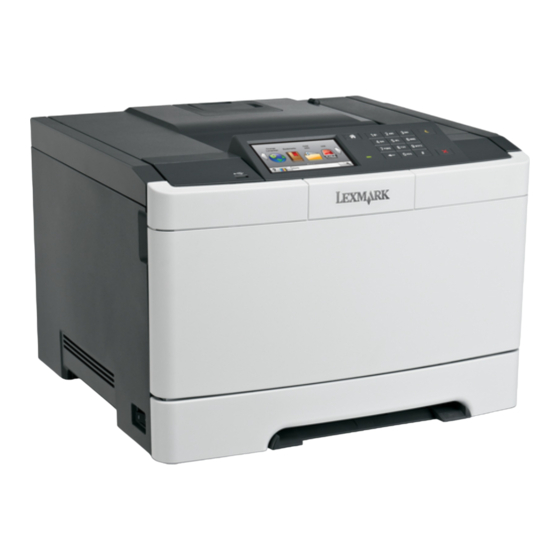

Lexmark CS410 Printing Manual

Lexmark CS410 Printing Manual

Printing guide
Hide thumbs Also See for CS410:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual See also: Driver Manual, Administrator's Manual
Printing guide
Get the most from the printer by properly loading the trays and properly setting the types and sizes of media.
Loading the 250 and 550‑sheet tray
The printer has one 250-sheet tray (Tray 1) with an integrated manual feeder. The 250-sheet tray, the 650-sheet duo tray, and
the 550-sheet tray support the same paper sizes and types and are loaded in the same way.
CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all trays
closed until needed.
1
Pull out the tray completely.
Note: Do not remove trays while a job is printing or while Busy appears on the display. Doing so may cause a jam.
2
If the paper is longer than letter‑size paper, then push the length guide tab at the back of the tray to extend it.
1
2
Printing guide
Page 1 of 8

Advertisement

loading

Related Manuals for Lexmark CS410

Summary of Contents for Lexmark CS410

  • Page 1 Printing guide Page 1 of 8 Printing guide Get the most from the printer by properly loading the trays and properly setting the types and sizes of media. Loading the 250 and 550‑sheet tray The printer has one 250-sheet tray (Tray 1) with an integrated manual feeder. The 250-sheet tray, the 650-sheet duo tray, and the 550-sheet tray support the same paper sizes and types and are loaded in the same way.
  • Page 2 Printing guide Page 2 of 8 Squeeze the length guide tab, and then slide the guide to the correct position for the size of the paper being loaded. Note: Use the size indicators on the bottom of the tray to help position the guide. Squeeze and slide the width guide to the correct position for the size of the paper being loaded.

  • Page 3: Loading The 650-Sheet Duo Tray

    Printing guide Page 3 of 8 Load the paper stack with the recommended printable side faceup. Place the paper guides securely against the edges of the paper. Insert the tray. From the printer control panel, set the paper size and type in the Paper menu to match the paper loaded in the tray. Note: Mixing paper sizes or types in a tray may cause jams.

  • Page 4: Loading The Multipurpose Feeder

    Printing guide Page 4 of 8 Length guide tab Paper size indicator Width guide tab Loading the multipurpose feeder Push the multipurpose feeder latch to the left.
  • Page 5 Printing guide Page 5 of 8 Open the multipurpose feeder. Pull the multipurpose feeder extender. Note: Guide the extender gently so that the multipurpose feeder is fully extended and open. Prepare the paper for loading. • Flex sheets of paper back and forth to loosen them. Do not fold or crease the paper. Straighten the edges on a level surface.
  • Page 6 Printing guide Page 6 of 8 Locate the maximum paper fill indicator and tab. Note: Make sure the paper or specialty media is below the maximum paper fill indicator located on the paper guides. Width guide tab Maximum paper fill indicator Width guide Feeder extender Paper size indicator...

  • Page 7: Loading The Manual Feeder

    Printing guide Page 7 of 8 • Load envelopes with the flap side up and against the right side of the paper guide. Notes: • Do not load or close the multipurpose feeder while a job is printing. • Load only one size and type of paper at a time. •...

  • Page 8: Setting The Paper Size And Type

    Printing guide Page 8 of 8 • Load envelope with the flap side up and against the right side of the paper guide. Feed paper into the manual feeder only to the point where its leading edge can contact the paper guides. Note: To achieve the best possible print quality, use only high‑quality media designed for laser printers.
