PLES389EC.eps LA20BG0049.eps BPLES389ECB.eps LA20CT0083.eps
DPLES389ECB.eps
318271934-1.eps 318271934-2.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Product No.
PLES389ECG
37957366H53S7
Series
30" slide-in
Color
stainless
Market
North America
Wiring Diagram
318271934
Owner's Guide
318203859
Installation Instructions 318201611
Timer Guide
318200194
Publication No.
5995479564
06/11/22
(EN/SERVICE/ECL)
377

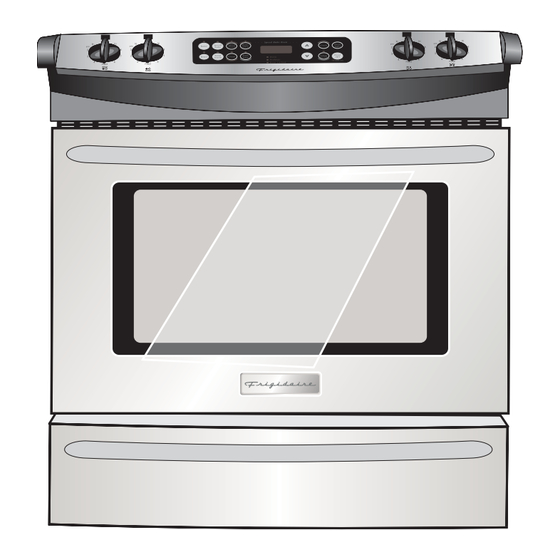

30-INCH SLIDE-IN
ELECTRIC RANGE
Model No.
PLES389E
©
Copyright
2006 Electrolux Home Products, Inc.
All rights reserved.
Advertisement
Related Manuals for Frigidaire PLES389ECG
Summary of Contents for Frigidaire PLES389ECG
- Page 1 PLES389EC.eps LA20BG0049.eps BPLES389ECB.eps LA20CT0083.eps ELECTRIC RANGE DPLES389ECB.eps 318271934-1.eps 318271934-2.eps Electrolux Major Appliances Model No. North & Latin America PLES389E P.O. BOX 212378 AUGUSTA, GA 30917 Publication No. 5995479564 06/11/22 (EN/SERVICE/ECL) © Copyright 2006 Electrolux Home Products, Inc. All rights reserved.
- Page 2 Publication No: 5995479564 PLES389ECG BACKGUARD 11/06...
- Page 3 PLES389ECG Publication No: 5995479564 BACKGUARD POS. NO PART NO. DESCRIPTION 318299102 Console, assy., black 5304447071 Clip, console, (2) 318306900 Bracket, bushing, (2) 318313830 Control Panel Assembly, steel/glass, stainless/black, w/touch pad 318224405 Panel, control mtg. 20 # 316418735 Clock/Timer, electronic, ES510 5304453707 Screw, control mtg.
- Page 4 Publication No: 5995479564 PLES389ECG BODY 11/06...
- Page 5 PLES389ECG Publication No: 5995479564 BODY POS. NO PART NO. DESCRIPTION 318259204 Back, main 318225110 Panel, main back, upper 318258902 Shield, insulation, upper 318225210 Panel, bodyside, upper RH 318225211 Panel, bodyside, upper LH 318175503 Screw, leveling 318345208 Rack, oven 318365800 Rack, broiler pan 318262001 Cover, element 318318600...
- Page 6 Publication No: 5995479564 PLES389ECG BODY 11/06...
- Page 7 PLES389ECG Publication No: 5995479564 BODY POS. NO PART NO. DESCRIPTION 112# 318112703 Relay 119# 318005212 Switch, thermal cutout 125# 316415800 Motor, fan 318317100 Adapter Assembly, vent tube, w/converter 318272900 Box, vent 318003000 Plate, shield 318123910 Deflector 161# 318255503 Element, convection, 350 W 318014110 Spacer, (6) 318298410...
- Page 8 Publication No: 5995479564 PLES389ECG TOP/DRAWER LA20CT0083 11/06...
- Page 9 PLES389ECG Publication No: 5995479564 TOP/DRAWER POS. NO PART NO. DESCRIPTION 318304401 Drawer, body assembly 318300000 Panel, warmer drawer, side, (2) 318300300 Panel, warmer drawer, rear 318303901 Panel, drawer, black, inner 318298811 Panel, drawer, stainless, front 318259507 Glide, warmer, inner RH 318259506 Glide, warmer, inner LH 15B#...
- Page 10 Publication No: 5995479564 PLES389ECG DOOR 11/06...
- Page 11 PLES389ECG Publication No: 5995479564 DOOR POS. NO PART NO. DESCRIPTION 318260401 Trim, oven door, side, (2) 318262101 Cover, rear door, black, (2) 318260520 Baffle, door 318372000 Insulation, door, (2) 318372002 Insulation, door, (2) 316117500 Glass, oven door, heat barrier 318259605 Liner, door 5303311174 Screw, 10-24 x 3/8...
-
Page 12: Wiring Diagram
Publication No: 5995479564 PLES389ECG WIRING DIAGRAM OVEN CIRCUIT // CIRCUIT DU FOUR BK-9 T.B. BK-21 ELECTRONIC OVEN CONTROL ES 510 COMMANDE FOUR ELECTRONIQUE ES 510 2 3 4 5 6 7 8 THERMAL CIRCUIT BREAKER DISJONCTEUR THERMIQUE V-14 V-19 BK-6 BK-6 BK-1 THERMAL CIRCUIT BREAKER... - Page 13 PLES389ECG Publication No: 5995479564 WIRING DIAGRAM COOKTOP CIRCUIT // CIRCUIT TABLE CUISSON TRANSFORMATOR TRANSFORMATEUR BK-9 BL-22 BL-5 R-22 Y-22 BK-22 BL-5 BK-5 BL-10 BL-1 CON. R.F. BK-1 R.F. ELM1 BK-21 BR-11 BR-2 Y-21 R-21 R.F. ELM2 LIM. BK-6 BK-2 BK-11 BK-11 BK-2 BL-21...
