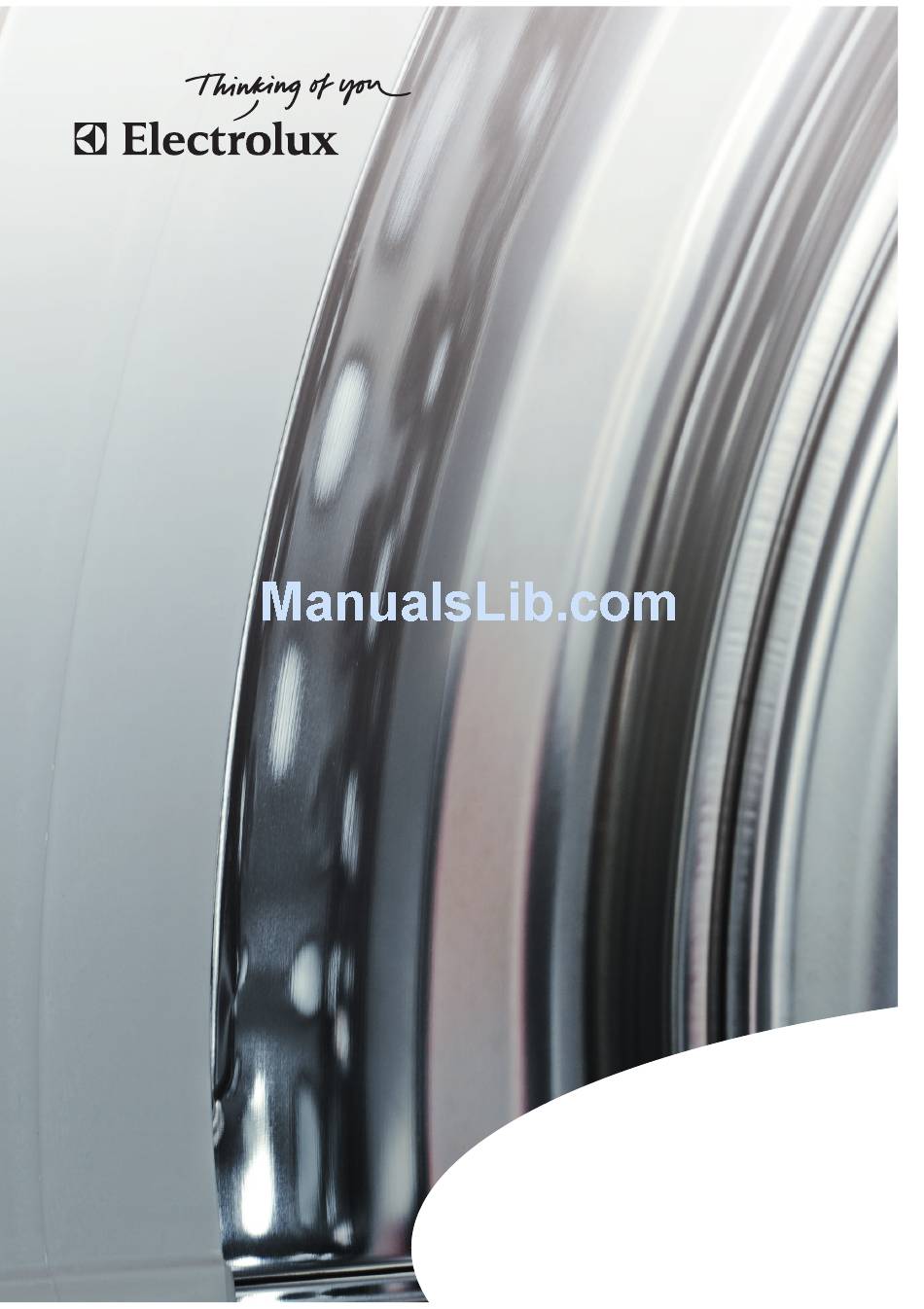

  • Page 1 User Manual Washing Machine EWF 14170 W...
  • Page 3 Thank you for choosing a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. The Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable. You find some examples on the cover in this manual.

  • Page 4: Table Of Contents

    4 electrolux contents Contents Safety information......5 Product description ......7 Control panel ........8 Use............9 Washing hints ........15 International wash code symbol ..18 Washing programme ....19-20 Programme information ....21 Care and cleaning ......22 Something not working....25 Techical data ........29 Consumption values ......30 Installation ........31...

  • Page 5: Safety Information

    5 ● Safety Information Wash small items such as socks, laces, washable belts etc in a washing bag or pillow case as it is possible for such items to slip down between the tub and the inner drum.
  • Page 6 6 electrolux safety information ● ● If the appliance is installed in a Never use the washing machine if location subject to frost, please read the power supply cable, the control the “dangers of freezing”chapter. panel, the working surface or the base are damaged so that the inside ●...

  • Page 7: Product Description

    7 Product description Your new appliance meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. The ECO valve system allows total use of detergent and reduces water consumption so saving energy.

  • Page 8: Control Panel

    8 electrolux control panel Control panel Programme selector dial Spin selector dial Temperature button Options button Extra Rinse button Start/Pause button Delay Start button Programme progress display...

  • Page 9: Use

    9 Measure out the detergent and the fabric softener Pull out the dispenser drawer until it First Use stops. Measure out the amount of detergent required, pour it into the main wash compartment and, if you wish to carry out the “prewash” or soak Ensure that the electrical and water ●...
  • Page 10 10 electrolux use Select the required programme Select the required temperature Turn the programme selector dial to the Turn the temperature selector dial to required programme. select the washing temperature. The green Start/Pause light starts to Maximum temperatures are 90°C for flash.
  • Page 11 11 Turn the Spin selector to change the Select the Prewash, Economy or spin speed, if you want your laundry to Super Quick option be spun at a speed different from the You can select 3 different options.
  • Page 12 12 electrolux use Select the Extra Rinse option If an incorrect option is selected, an integrated red pilot light of the “Start/ Pause” button flashes for 3 times. Select the Delay start This option is recommended for people who are allergic to detergents, and in areas where the water is very soft.
  • Page 13 13 The door will be locked throughout Altering an option or a running ● the delay time. If you need to open programme the door, you must first set the It is possible to change any option washing machine to PAUSE by before the programme carries it out.
  • Page 14 14 electrolux use Opening the door after the At the end of the programme programme has started The machine stops automatically. The First set the machine to pause by phase light “end” illuminates, pressing the “Start/Pause” button. “wash” , “door”...

  • Page 15: Washing Hints

    15 Washing hints Rub particularly soiled areas with a special detergent or detergent paste. Treat curtains with special care. Remove hooks or tie them up in a bag or net. Sorting the laundry Maximum loads Follow the wash code symbols on each Recommended loads are indicated in garment label and the manufacturer’s...
  • Page 16 16 electrolux washing hints Oil based paint: moisten with benzine Detergents and additives stain remover, lay the garment on a soft Good washing results also depend on cloth and dab the stain; treat several the choice of detergent and use of the times.
  • Page 17 17 Follow the product manufacturer’s recommendations on quantities to use and do not exceed the «MAX» mark in the detergent dispenser drawer. Quantity of detergent to be used The type and quantity of detergent will depend on the type of fabric, load size, degree of soiling and hardness of the water used.

  • Page 18: International Wash Code Symbol

    18 electrolux International wash code symbol International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature...

  • Page 19: Washing Programme

    19 Washing programmes Programme/ Description of Type of laundry Options Temperature programme White and coloureds cotton: Main wash Spin red./ /No spin Cottons e.g. sheets, 3 rinses Prewash, Economy, -90° tablecloths, household Long spin Super Quick, linen.
  • Page 20 20 electrolux washing programmes Washing programmes Programme/ Description of Type of laundry Options Temperature programme Main wash Special programme Silk 3 rinses /No spin for silk items 30° Short spin Separate soak Soak at 30°C, Soak programme for for 20 min.

  • Page 21: Programme Information

    21 Programme information Washing programme for machine washable wool Wool and well as for hand washable woollens and delicate fabrics with the “hand washing” care symbol Handwash Selecting this programme the laundry is gently washed and spun to avoid any creasing. In this way ironing is easier.

  • Page 22: Care And Cleaning

    22 electrolux care and cleaning electrolux 22 Care and cleaning Cleaning the dispenser drawer The washing powder and additive dispenser drawer should be cleaned regularly. Remove the drawer by pressing the You must DISCONNECT the appliance catch downwards and by pulling it out.
  • Page 23 23 electrolux care and cleaning • Remove any objects from the pump Cleaning the pump impeller by rotating it. The pump should be inspected if • the machine does not empty and/or spin • the machine makes an unusual noise during draining due to objects such as safety pins, coins etc.
  • Page 24 24 electrolux care and cleaning Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is Important! empty. When replacing the cover, ensure Every time you drain the water through it is securely retightened so as to stop...

  • Page 25: Something Not Working

    25 Something not working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below.
  • Page 26 26 electrolux something not working Malfunction Possible cause Solution Check the drain hose The machine does not The drain hose is squashed ● ● empty and/or does not spin: or kinked. (Red Start/ connection. Pause pilot light flashes) Clean the drain pump.
  • Page 27 27 Malfunction Possible cause Solution The machine vibrates or is The transit bolts and Check the correct ● ● noisy: packing have not been installation of the appliance. removed. The support feet have not Check the correct levelling ●...
  • Page 28 28 electrolux something not working If you are unable to identify or solve the problem, contact our service centre. Before telephoning, make a note of the model, serial number and purchase date of your machine: the Service Centre will require this information.

  • Page 29: Techical Data

    29 Technical data Dimensions Width 60 cm Height 85 cm Depth 59 cm Electrical connection Voltage Information on the electrical connection is given on - Overall power - Fuse the rating plate on the inner edge of the appliance...

  • Page 30: Consumption Values

    30 electrolux Consumption value Consumption values Programme Programme Energy Water duration consumption consumption (in minutes) (in kWh) (in litres) Cottons 90° Cottons Economy 60°(*) 1.02 Synthetics 60° 0.35 Easy Iron 0° Delicates 40° 0.55 Wool 40° Handwash 40° Silk 30°...

  • Page 31: Installation

    31 Installation Unpacking All transit bolts and packing must be removed before using the appliance. You are advised to keep all transit devices so that they can be refitted if the 4. Unscrew and remove the two large...
  • Page 32 32 electrolux installation 6. Open the porthole, take out the inlet Accurate levelling prevents vibration, hose from the drum and remove the noise and displacement of the machine polystyrene block fitted with the during operation.Never place cardboard, adhesive tape on the door seal.
  • Page 33 33 After positioning the inlet hose, be sure to tighten the ring nut again to prevent leaks. 4. Connect the hose to a tap with a 3/4” thread. Always use the hose supplied with the appliance. The inlet hose must not be lengthened.
  • Page 34 34 electrolux installation Electrical connection This machine is designed to operate on a 220-230 V, single-phase, 50 Hz supply. Check that your domestic electrical installation can take the maximum load required (2.2 kW), also taking into account any other appliances in use.

  • Page 35: Environment Concerns

    35 Environment concerns Ecological hints Packaging materials To save water, energy and to help protect the environment, we recommend that you follow these tips: The materials marked with the symbol • Normally soiled laundry may be are recyclable.

  • Page 36: Guarantee Conditions

    36 electrolux guarantee conditions columns and margins electrolux 36 Guarantee conditions 5. The guarantee will not apply if damage caused to delicate parts, such as glass (vitreous ceramic), Belgium synthetic materials and rubber, is the DECLARATION OF GUARANTEE TERMS. result of inappropriate use.

  • Page 37: Customer Service Centres

    This appliance is guaranteed by These guarantee terms are only valid for Electrolux, in each of the countries listed appliances purchased and used in in the following page, for the period Belgium. For exported appliances, the...
  • Page 38 Suomi +35 8 26 22 33 00 Konepajanranta 4, 28100 Pori Sverige +46 (0)771 76 76 76 Electrolux Service, S:t Göransgatan 143, S-105 45 Stockholm Türkiye +90 21 22 93 10 25 Tarlaba” i caddesi no : 35 Taksim Istanbul Россия...
  • Page 40 ANC Number: 132 967 750-00-432007...
