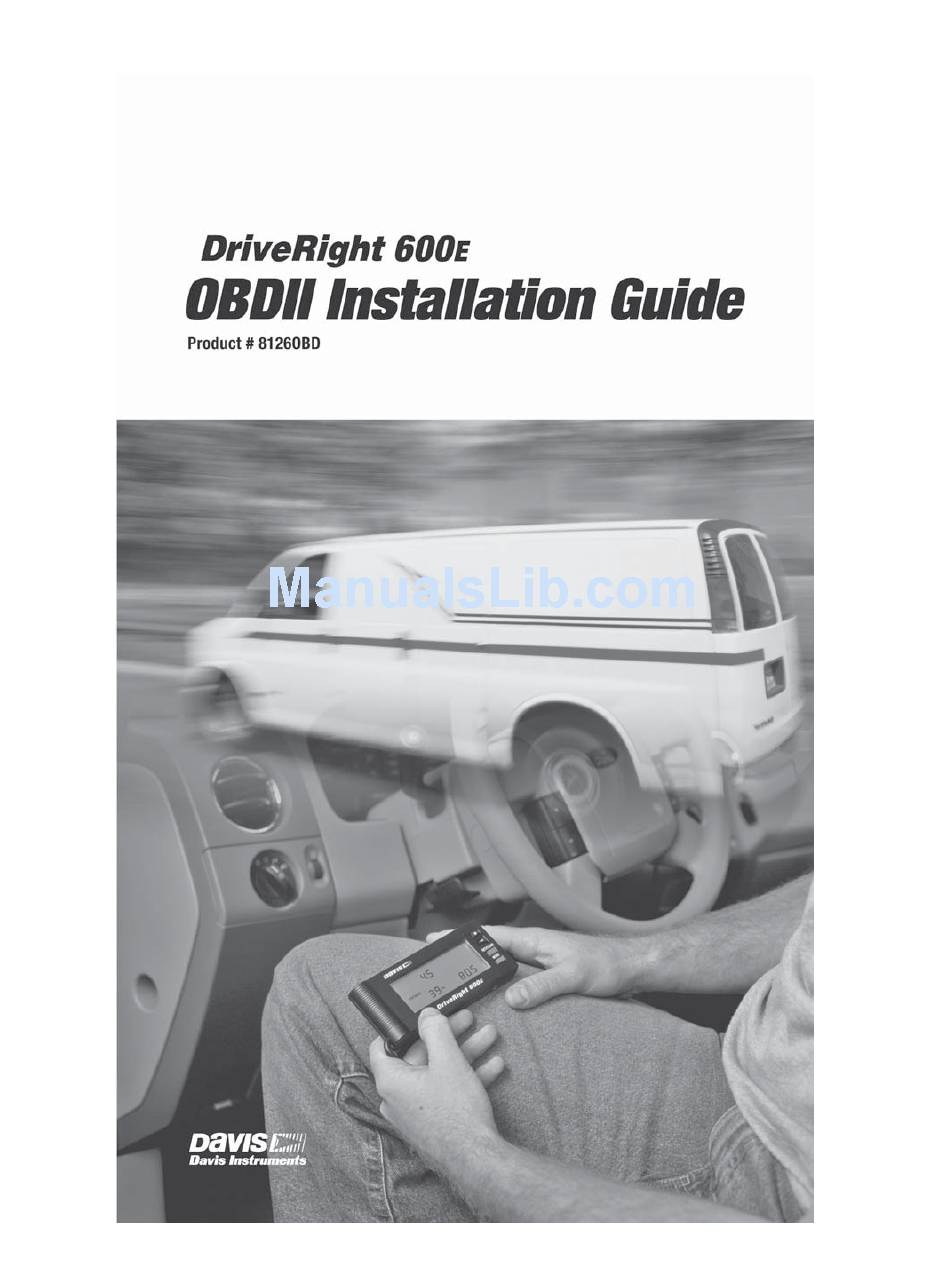

- Page 1 DriveRight OBDII Installation Guide...
- Page 2 • Consult the dealer or an experienced radio/TV technician for help. Changes or modification not expressly approved in writing by Davis Instruments may void the warranty and void the user's authority to operate this equipment. © Davis Instruments Corp. 2007. All rights reserved.
- Page 3 Introduction This manual provides instructions and information necessary to install the OBD version of the DriveRight 600 device. The DriveRight OBD plugs into your vehicle’s OBDII (On-Board Diagnostics II) port for a quick and easy installation. Note: DriveRight OBD only functions in vehicles equipped with a compatible OBDII port.
-
Page 4: Wiring Components
Cables DriveRight OBD Cable Adapter Cable Wiring Components Black Ground Wire Red +12V Wire (22AWG) Blue Wire (2) with Fuseholder (22 AWG) with Fuseholder (22 AWG) Spade Terminal Sets: Fuses (4) (3AG 1-1/4 x 1/4", Insulated Male Disconnects .25A, Slo-Blo) (18-22AWG) #8-10 Studs 1/4"... -
Page 5: Planning The Installation
Installations using Adapter Cable Digital Inputs If you are using the adapter cable digital inputs in your installation, the following additional tools and other items may also be required: • Crimping Tool • Multimeter • Fuse Tap - Required to obtain +12 V from the fuse panel. Planning the Installation Installation of theDriveRight OBD is simple. -
Page 6: Wiring Diagram
Wiring Diagram The diagram below is an example of DriveRight OBD wiring. DriveRight Device Adapter Cable Blue Wires (DriveRight 600 or 600 Butt with Splices In-Line Digital Green Fuses Inputs Yellow Ground Black Spade Terminal OBD Cable Red Wire with Fuseholder In-Line Connect... - Page 7 Look in the follow areas if you have trouble finding the OBDII port: • Under the dash • In front of the passenger seat • Behind the ash tray • Behind a small access panel in the dash • In or around the center console 2.
- Page 8 1. If you are installing a DriveRight 600 OBD but not using the digital inputs, go to Step 10 of this procedure. 2. Butt splice the red fuse holder to the red wire from the adapter cable. 3. Tap the red fuse holder to an unswitched +12 V source using the in- line splice provided with your DriveRight or using a fuse tap con- nector (not included) appropriate for your vehicle.
- Page 9 7. Use the in-line butt splices to connect the blue wires with fuses to the Green (Digital Input 1) and Yellow (Digital Input 2) wires from the adapter cable. 8. Connect Digital Input 1 to the desired circuit. 9. Connect Digital Input 2 to the desired circuit. 10.Connect the digital input cable to the OBD cable.
- Page 10 Top of Dashboard Mounting Using Brackets or Velcro™ Pan Head Self-Tapping Screw Split-Lock Washer Flat Washer Hex Nut Split-Lock Washer Loops Flat Washer Hooks Right Angle Adapter Bracket Mounting Bracket Flat Head Machine Screw Velcro Mounting Bracket Mounting Sun Visor Mounting Visor Clip 3 Bumps (to hold clip)
- Page 11 3. Connect the DriveRight console cable to the adapter cable. Sliding Connector Housing OBD or Adapter Cable Console Cable Hold cables as shown to connect. The connector housing on the console cable slides back when you make the connection, allowing the cables to lock together. Note: To disconnect the cables, hold the both cables by the connector housing and pull apart.
-
Page 12: Appendix 1: Obdii Compatibility
Appendix 1: OBDII Compatibility Use this list to verify the compatibility of your vehicle’s OBDII port with DriveRight OBD. Supported OBDII Protocols • J1850-41.6 (PWM) • J1850-10.4 (VPW) • ISO9141 • KWP2000 (ISO 14230) • CAN (Controller Area Network - ISO11898) Supported US Vehicles •... -
Page 13: Technical Support
Pacific Time. (510) 670-0589 – Fax to Technical Support. support@davisnet.com – E-mail to Technical Support. info@davisnet.com – E-mail to Davis Instruments. www.davisnet.com – Product documentation is available on the Driv- eRight Support section of our website. Watch for FAQs and other... -
Page 14: Installation Notes
Installation Notes:... - Page 15 Installation Notes:...
- Page 16 Installation Notes:...
