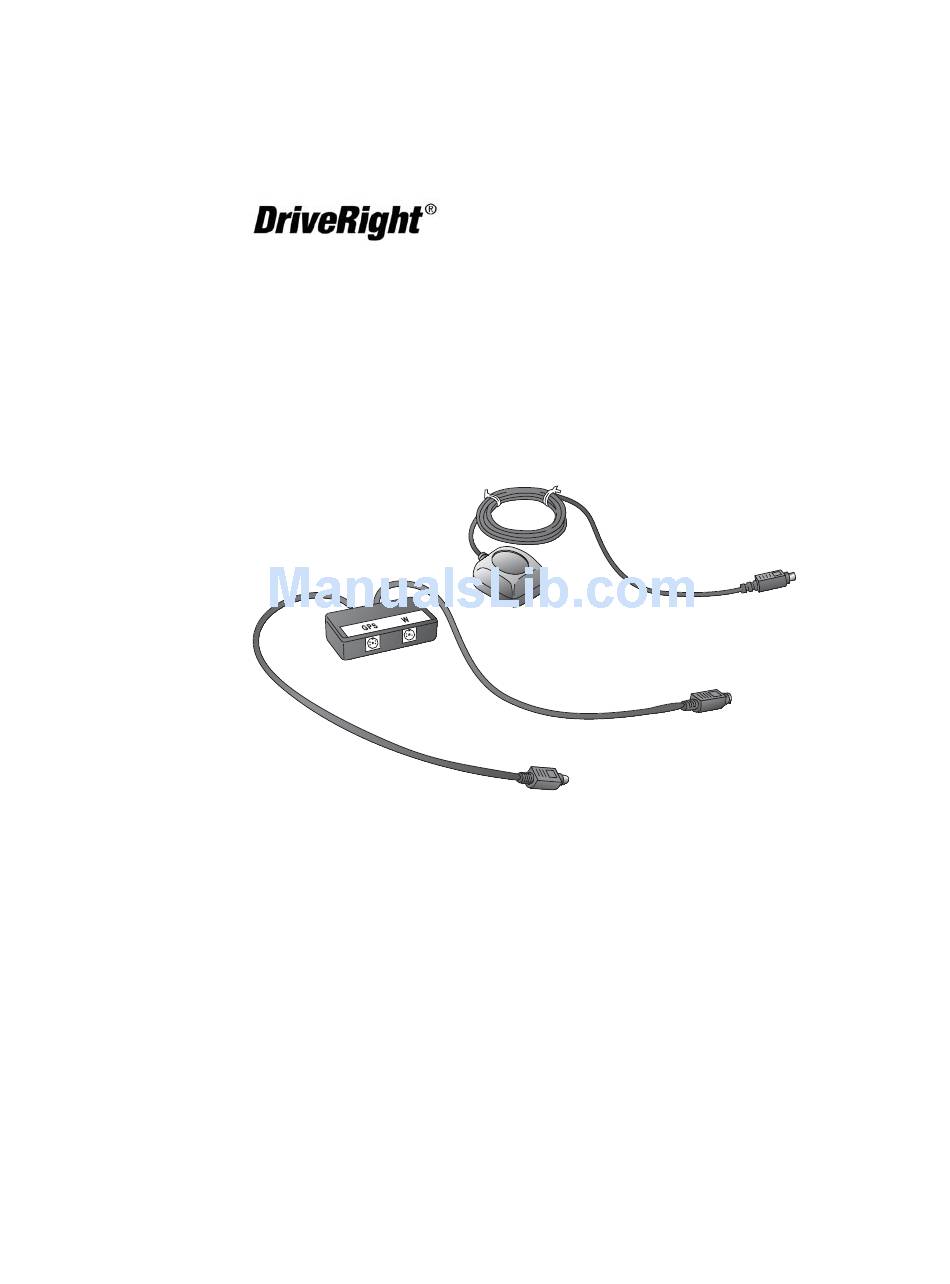

- Page 1 GPS/Wireless Interface Module Installation Manual Includes: GPS/Wireless Interface Module (#8127) GPS Module (#8128)
- Page 2 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modification not expressly approved in writing by Davis Instruments may void the warranty and void the user's authority to operate this equipment.
- Page 3 Wireless Download Module (#8129). Note: At time of publication, the Wireless Download Module (#8129) is still under development. Please contact your DriveRight reseller or Davis Instruments for more information on its availability. Refer to the DriveRight 600 User’s Guide, DriveRight 600...
-
Page 4: Making Connections
(#8128) Installing the GPS\Wireless Interface Module 1. Place the GPS\Wireless Interface Module under the dashboard of the vehicle, near the DriveRight 600 device or SmartCard On-Board Reader. 2. Secure the GPS\Wireless Interface Module in place using the provided cable ties, velcro tape, or double-sided tape. - Page 5 Components and Mounting Hardware 4. Connect the female connector from the GPS/Wireless Interface Module to the Male connector from the DriveRight 600 or SmartCard On-Board Reader if present. See the diagrams below for help on disconnecting and connecting the cables...
- Page 6 GPS\Wireless Interface Module #8127 GPS\Wireless Interface Module to SmartCard On-Board Reader Wiring Diagram Note: The GPS module must be enabled via the DriveRight Fleet Management Software for the module to function. See the FMS Online Help System for more information...
-
Page 7: Gps Module Specifications
Memory Backup ....Lithium cell, estimated 5 year service life Cable Connection/Length Module to adapter cable ..Male 8-pin Mini-DIN / 14'' (355 mm) Module to DriveRight 600 ..Female 8-pin Mini-DIN / 24'' (609 mm) GPS Module Specifications Size . -
Page 8: Contacting Davis Technical Support
(510) 670-0589 – Fax to Technical Support. E-mail Support support@davisnet.com – E-mail to Technical Support. info@davisnet.com – E-mail to Davis Instruments. Web Support www.davisnet.com – Copies of User Manuals and Installation Manuals are available on the “Support” page. Watch for FAQs and other updates.
