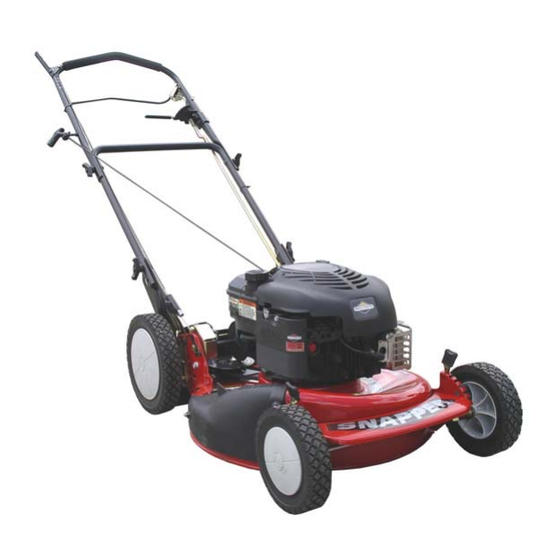

- Page 1 Parts Manual for 21" STEEL DECK WALK BEHIND MOWER "MR" SERIES 18 PUSH MODELS PROPELLED MODELS MR216518B EMRP216518B MRP216518B McDonough, GA, 30253 U.S.A. COPYRIGHT © 2005 Manual No. 7006138 SNAPPER PRODUCTS, INC. Revision 1, 8/2/2005 TP 400-5043-1-WB-N ALL RIGHTS RESERVED.
-
Page 3: Table Of Contents
Table Of Contents PAGE GROUP HANDLES AND CONTROLS CUTTING DECK, BLADE FRONT WHEEL BRACKET REAR WHEEL BRACKETS, LATCHES DRIVE SYSTEM SELF-PROPELLED TRANSMISSION (DIFFERENTIAL) FRONT WHEELS REAR WHEELS SIDE CHUTE, ADAPTER GRASS BAG ACCESSORY DECALS THATCHERIZER ASSEMBLY SNAPPERIZER ACCESSORY RECYCLING KITS ACCESSORY 21"... -
Page 4: Handles And Controls
HANDLES AND CONTROLS Manual No. 7006138 21" STEEL DECK WALK BEHIND MOWER TP 400-5043-1-WB-N "MR" SERIES 18... - Page 5 HANDLES AND CONTROLS Item Part No Description Note 7074411 HANDLE, Upper used on All 7074156 HANDLE, Middle used on All 7033985 HANDLE, Lower LH (Adjustable) used on All 7033986 HANDLE, Lower RH (Adjustable) used on All 7074418 BAIL, OPC Control used on All 7034872 CLIP, Zone Control...
- Page 6 HANDLES AND CONTROLS Manual No. 7006138 21" STEEL DECK WALK BEHIND MOWER TP 400-5043-1-WB-N "MR" SERIES 18...
- Page 7 HANDLES AND CONTROLS Item Part No Description Note 7091576 NUT, 1/4-20 Hex Was 91100 (used on All) 7012080 CABLE-TIE, 7” used on All 7014343 BUSHING, .27 x .35 x .4 Flange used on Self Propelled 7023792 PIN, Clutch Handle used on Self Propelled 7091020 PUSH-NUT, 1/4”...
-
Page 8: Cutting Deck, Blade
CUTTING DECK, BLADE Manual No. 7006138 21" STEEL DECK WALK BEHIND MOWER TP 400-5043-1-WB-N "MR" SERIES 18... - Page 9 CUTTING DECK, BLADE Item Part No Description Note 7057884 * ASSEMBLY, M Series Push 21” Deck Was 57784 (Used on MR216518B) 7057884 * ASSEMBLY, Non-Adjustable Air, 21” Deck Was 57667 (Used on MRP216518B and EMRP216518B) 7091601 NUT, 5/16-18 Hex Flange Lock, GR5 Was 90585 7090731 BOLT, 5/16-18 x 1/2”...
-
Page 10: Front Wheel Bracket
FRONT WHEEL BRACKET Manual No. 7006138 21" STEEL DECK WALK BEHIND MOWER TP 400-5043-1-WB-N "MR" SERIES 18... - Page 11 FRONT WHEEL BRACKET Item Part No Description Note 7051886 ASSEMBLY, Right Wheel Arm (Consists of items 2, 3, 4, 5A & 7051885 ASSEMBLY, Left Wheel Arm (Consists of items 2, 3, 4, 5B & 7015761 BOLT, 5/16-18 Hex Washer Face Shoulder 7012325 LATCH, Height 7027702...
-
Page 12: Rear Wheel Brackets, Latches
REAR WHEEL BRACKETS, LATCHES Manual No. 7006138 21" STEEL DECK WALK BEHIND MOWER TP 400-5043-1-WB-N "MR" SERIES 18... - Page 13 REAR WHEEL BRACKETS, LATCHES Item Part No Description Note 7012312 BALL BEARING, 9/16” I.D. 7046983 BALL BEARING, 9/16” I.D. (Commercial) Was 18767 7091012 SCREW, #10-32 x 3/8” Hex Washer Self-Tap (Torx head) 7035717 LATCH, Height Adjusting (Long) 7091576 NUT, 1/4-20 Hex Was 90063 7091601 NUT, 5/16-18 Hex Flange Lock GR5...
-
Page 14: Drive System Self-Propelled
DRIVE SYSTEM SELF-PROPELLED Manual No. 7006138 21" STEEL DECK WALK BEHIND MOWER TP 400-5043-1-WB-N "MR" SERIES 18... - Page 15 DRIVE SYSTEM SELF-PROPELLED Item Part No Description Note 7012354 BELT, Poly-Vee 7034179 LINK, Differential (Commercial) 7051921 ASSEMBLY, Clutch Idler (includes items 3 thru 7) 7032832 ARM, Clutch Idler 7012124 PULLEY, Idler 7091025 SCREW, 1/4-28 x 1-3/8” Hex Head Cap GR5 7090303 NUT, 1/4-28 Hex Top Lock 7012117...
- Page 16 DRIVE SYSTEM SELF-PROPELLED Manual No. 7006138 21" STEEL DECK WALK BEHIND MOWER TP 400-5043-1-WB-N "MR" SERIES 18...
- Page 17 DRIVE SYSTEM SELF-PROPELLED Item Part No Description Note 7090316 BOLT, 5/16-18 x 3/4” Short Neck Carriage GR5 Was 91097 7032831 CONNECTOR, Transfer Rod 7091294 WASHER, .28 x .63 x .06 Flat used on Euro Self-Propelled models 7017696 BUSHING 7029025 SPRING, Wheel Drive 7012125 GUIDE, Thrust Plate (3/8-24 thread) 7013847...
-
Page 18: Transmission (Differential)
TRANSMISSION (DIFFERENTIAL) Manual No. 7006138 21" STEEL DECK WALK BEHIND MOWER TP 400-5043-1-WB-N "MR" SERIES 18... - Page 19 TRANSMISSION (DIFFERENTIAL) Item Part No Description Note 7053943 ASSY, Transmission- 1996 (Includes items 1 thru 30) 7092062 NUT, 5/16-24 Hex Lock 7092063 WASHER, Bellville 7019213 PULLEY, Poly-Vee Belt 7011724 WASHER, Spring 7053941 ASSY, Right Housing (Phantom) (Includes items 6, 7, 8, 9, 10 & 7029034 HOUSING, Right Side 7014155...
-
Page 20: Front Wheels
FRONT WHEELS Manual No. 7006138 21" STEEL DECK WALK BEHIND MOWER TP 400-5043-1-WB-N "MR" SERIES 18... - Page 21 FRONT WHEELS Item Part No Description Note 7029010 WHEEL, 8 x 1.75 Plastic 7017829 PLUG, Wheel 7090377 NUT, 7/16-20 Hex Center Lock Jam 7012309 BUSHING, Axle 7031961 WASHER, 7/16” Flat Qty. of (2) for Push; Qty. of (1) for Self-Propelled Models Footnotes: 21"...
-
Page 22: Rear Wheels
REAR WHEELS Manual No. 7006138 21" STEEL DECK WALK BEHIND MOWER TP 400-5043-1-WB-N "MR" SERIES 18... -
Page 23: Rear Wheels
REAR WHEELS Item Part No Description Note 7074924 WHEEL, 10 x 1.75” Plastic (Push Models) 7029011 WHEEL, 10 x 1.75” Plastic (Self-Propelled Models) 7090377 NUT, 7/16-20 Hex Center Lock Jam 7012309 BUSHING, Axle 7031961 WASHER, 7/16” Flat 7017829 PLUG, Wheel Footnotes: 21"... -
Page 24: Side Chute, Adapter
SIDE CHUTE, ADAPTER Manual No. 7006138 21" STEEL DECK WALK BEHIND MOWER TP 400-5043-1-WB-N "MR" SERIES 18... - Page 25 SIDE CHUTE, ADAPTER Item Part No Description Note 7051951 ASSEMBLY, Bag Adapter & Cover (Includes items 2 thru 9; used on European Models Only) 7016107 ADAPTER, Grass Bag 7019287 COVER, Bag Adapter 7023000 HINGE, Chute Cover 7091064 BOLT, 1/4-20 x 1/2” Short Neck Carriage GR5 7090053 WASHER, 1/4”...
-
Page 26: Grass Bag Accessory
GRASS BAG ACCESSORY Manual No. 7006138 21" STEEL DECK WALK BEHIND MOWER TP 400-5043-1-WB-N "MR" SERIES 18... - Page 27 GRASS BAG ACCESSORY Item Part No Description Note 7060791 KIT, Grass Bag Catcher (Includes items 1 thru 5) 7074734 GRASS BAG, Slider Type (Black) 7050711 ASSEMBLY, Slider 7042489 CONNECTOR, Grass Bag (weldment) 7019247 WIRE, Bag Adapter 7016050 ADAPTER, Bag 7058037 ASSEMBLY, Grass Bag Adapter (Includes items 7 thru 14) 7047081...
-
Page 28: Decals
DECALS Manual No. 7006138 21" STEEL DECK WALK BEHIND MOWER TP 400-5043-1-WB-N "MR" SERIES 18... - Page 29 Note 7024087 DECAL, Speed Sector 7029783 DECAL, Speed Sector Int'l Symbol 7046720 DECAL, Chute/Deflector 7075619 DECAL, Ninja 7075618 DECAL, SNAPPER 7072921 DECAL, Warning (Deck) 7013010 DECAL, Danger, Cut Finger 7022841 DECAL, Warning (Euro) 7029490 DECAL, 2004 Year of Mfg. 7029776...
-
Page 30: Thatcherizer Assembly
THATCHERIZER ASSEMBLY Manual No. 7006138 21" STEEL DECK WALK BEHIND MOWER TP 400-5043-1-WB-N "MR" SERIES 18... -
Page 31: Thatcherizer Assembly
THATCHERIZER ASSEMBLY Item Part No Description Note 7061256 KIT, Thatcherizer (Incl. items 1 thru 27) 7032891 LATCH, Frame Attachment 7026572 BAR, Mount (Right Hand) 7026573 BAR, Mount (Left Hand) 7018499 ROD, Tine 7018700 SUPPORT, Wheel 7019948 TRAY, Tine 7018496 KIT, Tine Thatching Spring Was 60574 7014100 BUSHING, Wheel Adjuster... -
Page 32: Snapperizer Accessory
SNAPPERIZER ACCESSORY Manual No. 7006138 21" STEEL DECK WALK BEHIND MOWER TP 400-5043-1-WB-N "MR" SERIES 18... - Page 33 SNAPPERIZER ACCESSORY Item Part No Description Note 7063041 KIT, Snapperizer (Incl. items 1 thru 5) 7051243 SCREEN, Fastener Assembly 7072002 RING, Bottom 7091297 NUT, 5/16-24 Hex, GR5 Was 90223, only 1 shown 7090187 WASHER, 5/16” Split Lock only 1 shown 7012587 SPRING only 1 shown...
-
Page 34: Recycling Kits Accessory
RECYCLING KITS ACCESSORY Manual No. 7006138 21" STEEL DECK WALK BEHIND MOWER TP 400-5043-1-WB-N "MR" SERIES 18... - Page 35 RECYCLING KITS ACCESSORY Item Part No Description Note 7061200 KIT, Recycling Cover (Incl. items 1 & 2 below) for 4HP & above engines 7061201 KIT, Recycling Plug (Incl. items 1 & 2 below) for 4HP & above engines 7029149 COVER, 21” Deck 7016814 PLUG, Chute Adapter 7026407...
- Page 38 Parts Manual for 21" STEEL DECK WALK BEHIND MOWER "MR" SERIES 18 IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.
