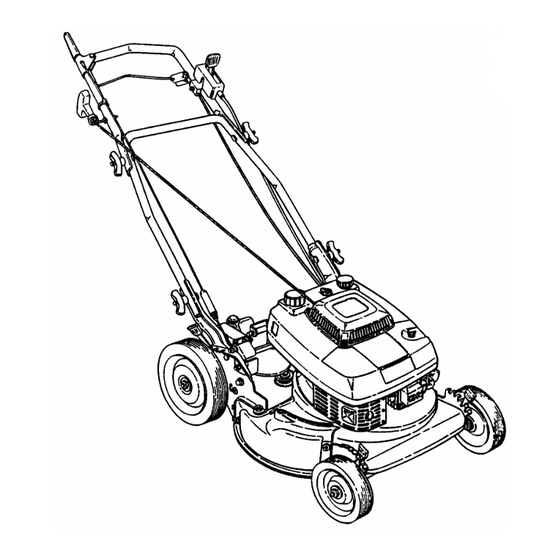

Snapper MR216015T Safety Instructions & Operator's Manual

21” steel deck walk mowers “m” model series 15
Hide thumbs Also See for MR216015T:
Table of Contents

Advertisement

Quick Links

MODEL DESIGNATION
SELF-PROPELLED
CUTTING WIDTH
M – Middle Market
R – Recycling Model
21 – 21" Cutting Width
60 – 6.0 HP (Engine Horse Power)
Thank you for buying a SNAPPER Product! Before operating your Walk Behind, read this manual carefully and pay
particular attention to the "IMPORTANT SAFETY INSTRUCTIONS" on Pages 2 & 3. Remember that all power
equipment can be dangerous if used improperly. Also keep in mind that SAFETY requires careful use in accordance
with the operating instructions and common sense.
COPYRIGHT © 1999
SNAPPER INC.
ALL RIGHTS RESERVED
Safety Instructions & Operator's Manual for
MODEL NUMBER EXPLANATION
M
R
P – Self Propelled Model
21" STEEL DECK
WALK MOWERS
P
21
60
15 - Series Designation
B – Briggs Engine
T – Tecumseh Engine
"M" MODEL
SERIES 15
MODELS
PUSH
PROPELLED
MODELS
MR216015T
MRP216015B
15
B
SERIES DESIGNATION
ENGINE HORSE POWER
MANUAL No. 7-3031 (I.R. 9/2/99)
MODELS
ENGINE TYPE
