Lightolier Lytecaster 2025WH Specification

Page 1 of 1
5 3/8"
(137mm)
2025WH/2000LV Series
Standard MR16
7 1/4"
(184mm)
2025WH/2004ICV/N
0
AirSeal
™
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Reflector Trim
2025WH Matte White
Features
1. Housing: .036" (#20 ga.) galvanized steel.
2. Swivel Housing: Die-formed, 27 ga. steel. Provides 0° to 30° vertical
adjustment; matte white finish.
3. Trim Flange: Die-formed, 22 ga. cold rolled steel. Matte white finish.
4. Frame-In Kit: (2000LV standard frame shown) Other frames shown on the
right. See Frame-In Kit specification sheets for more details.
Options & Accessories
Retaining Clips:
Labels
UL (Suitable for damp locations), I.B.E.W.
Lightolier is a Philips group brand
1 11/16"
(43mm)
4 1/2"
(114mm)
Insulated Ceiling
®
Frame-In Kit — See Individual Frame-In Kit Specification Sheets
Low Voltage
Frame-In Kit Installation Type
2000LV
Standard Non-IC
2000LVR
Remodeler Non-IC
2000LVRE1
Remodeler Non-IC
2000LVE1 Electronic Low Voltage Non-IC 120V
2000LVE2 Electronic Low Voltage Non-IC 277V
2004ICV/N Lytening AirSeal IC
®
2000LVNT Non-IC (no transformer)
1955 - For Installing in Existing Ceiling.
Lytecaster Recessed Downlighting
®

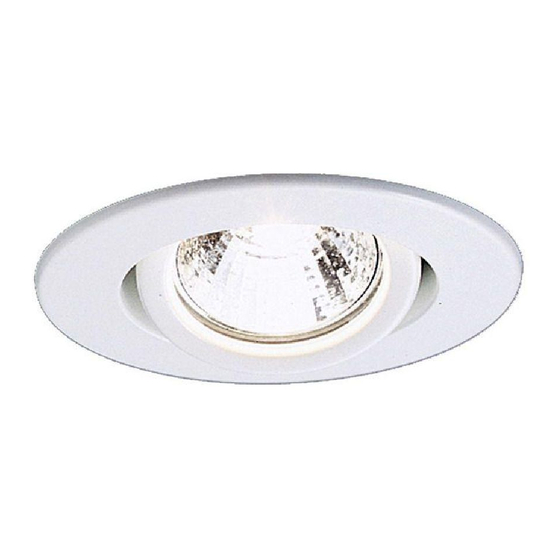

3 3/4" MR16 Mini Swivel Round Reflector Trim
5 3/8"
(137mm)
5 3/8"
(137mm)
Lamping Height
20W-50W MR16 5 3/8"
37W MR16 5 3/8"
37W MR16 5 3/8"
20W-50W MR16 5 3/8"
5 3/8"
20W-50W MR16 7 1/4"
20W-42W MR16 5 3/8"
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • F0911
2025WH
2025WH/2000LVR
Remodeler/Non-IC
2025WH/2000LVNT
Low Voltage Remote Transformer
Type:
30°
