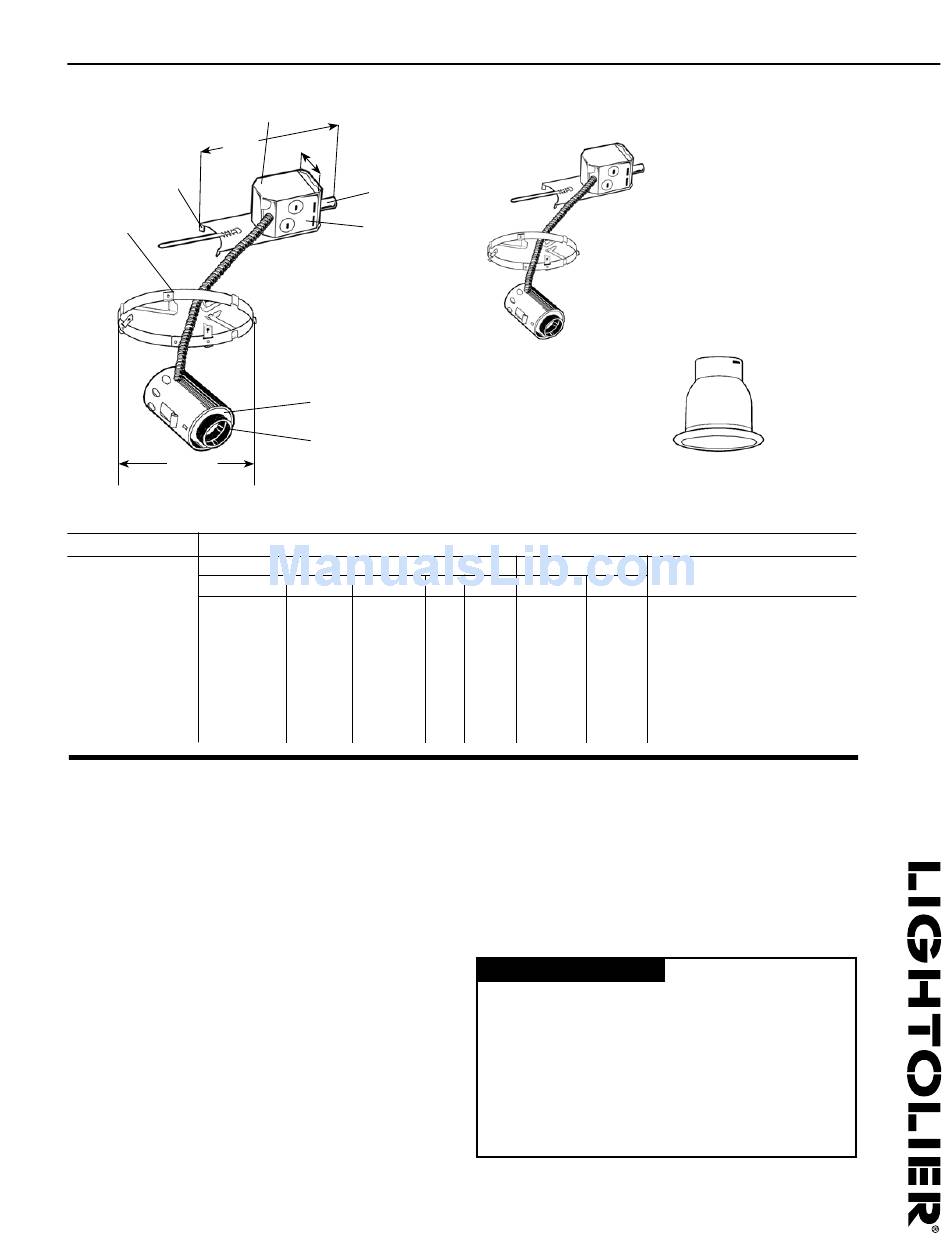

Lightolier Lytecaster 2000LVRE1 Specification

Page 1 of 1
8 1/4"
7
6
4 1/8"
Ceiling Opening
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets
Specular Cone Satin Cone
2000LVRE1 2012
120V-0.625A MAX 2012NM
2013BKNM
2013CD
2013CDNM
2013NM
2013BK
2013WH
2013
Features
1. Junction Box: 2 1/2" X 2 1/2" X 3 1/2" (21 cu. in.) .032 (#22 ga.) galvanized
steel. U.L.listed for 90° C supply wire. Integral cable clamps permit attach-
ment of non-metallic (#12 or #14 ga.) Romex® cable without tools or addi-
tional connectors. Attaches to mounting ring without tools.
2. Socket Housing: Aluminum, with lamp adjustment assembly allows verti-
cal and horizontal adjustment, (see reflector trim specification sheet for
specific adjustment).
3. Socket: Field replaceable. Two pin socket, pre-wired with #18SF1 leads to
junction box.
4. Transformer: Outboard mounted, electronic, 120V. primary, nominal 12V.
secondary. Removable from below.
5. Thermal Protector: Meets NEC and UL requirements. Insulation must be
kept 3" away from fixture sides and wiring compartments and must not be
placed above fixture in a manner which will entrap heat.
6. Mounting Ring: .048 (#18 ga.) galvanized steel. Accommodates existing
ceilings up to 2" thick. Attaches securely to any type of ceiling material
without tools using (3) mounting straps provided. Push-in/twist out clips hold
reflector flush to ceiling. Includes adhesive backed aperture template.
Dimming
Dimming Controls: Use only dimmers specifically designed for use with
electronic transformers. Consult Lightolier Controls for more information.
Low voltage luminaires may produce audible sound when used with dimmers,
which may be objectionable in acoustically critical areas.
Lytecaster Recessed Downlighting
®
3 3/4" Aperture Electronic Low Voltage MR16 Remodeler Frame-in Kit
4
2 5/8"
5
1
2
3
Open Downlight
Baffles Slot
2008 2005 2006
2008NM 2005WH
2010 2005BNM
2010NM 2005NM
Frame-In Kit
Adjustable
Pinhole Mini Swivel Eyeball
2011 2025WH 2022LV
Options & Accessories
MR16 Socket Replacement:
Socket for General Electric Turn and lock (TAL) MR16 Lamp: 1975TAL
Color Filters: AF2 Series
Labels
UL (Suitable for Damp Locations), I.B.E.W.
Romex ® is a registered trademark of General Cable Industries Inc.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • A1107
