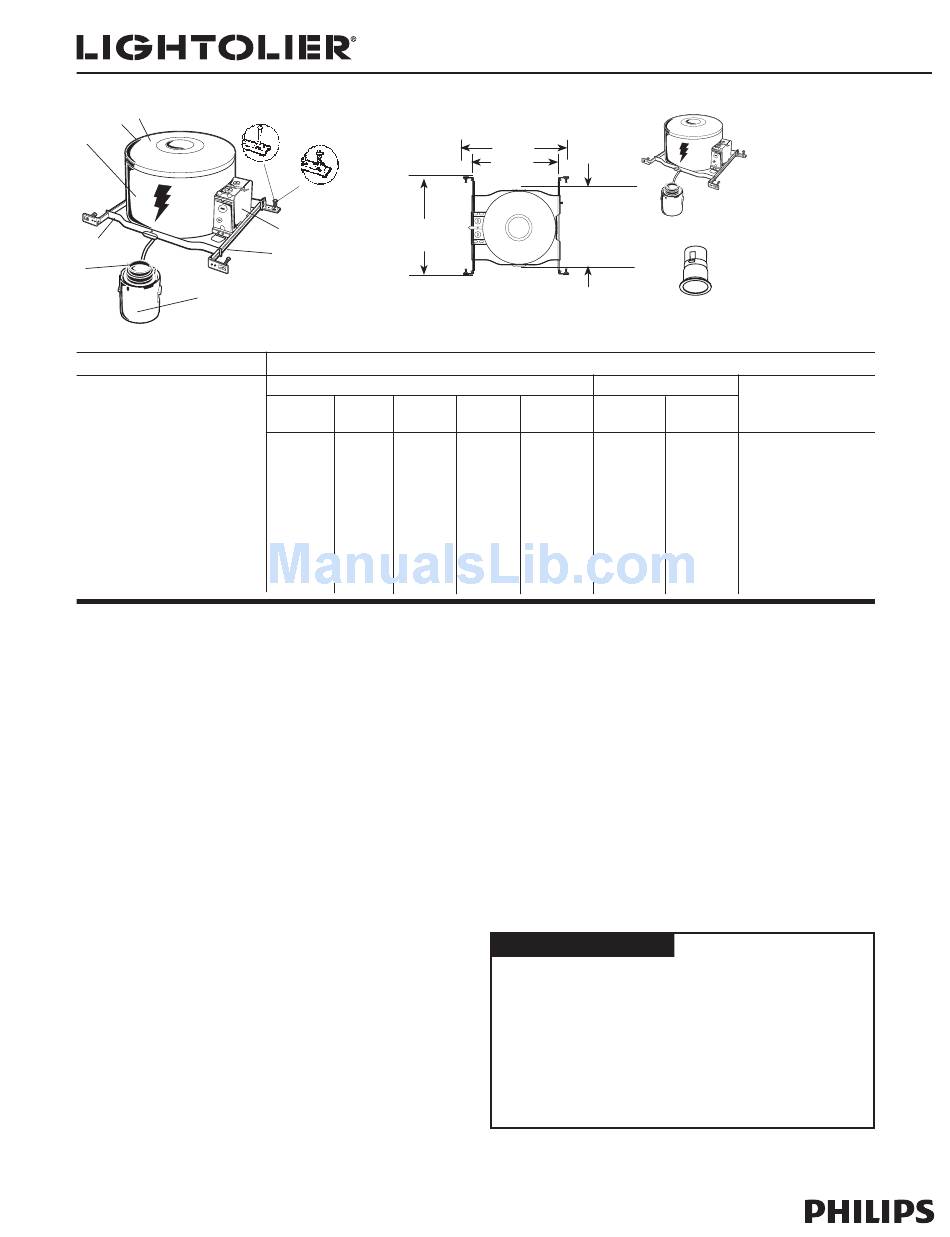

Lightolier Lytecaster 2004ICV Specification

Page 1 of 1
8
7
1
2
6
3 3/4" Aperture: Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit
2004ICV
2004ICVN

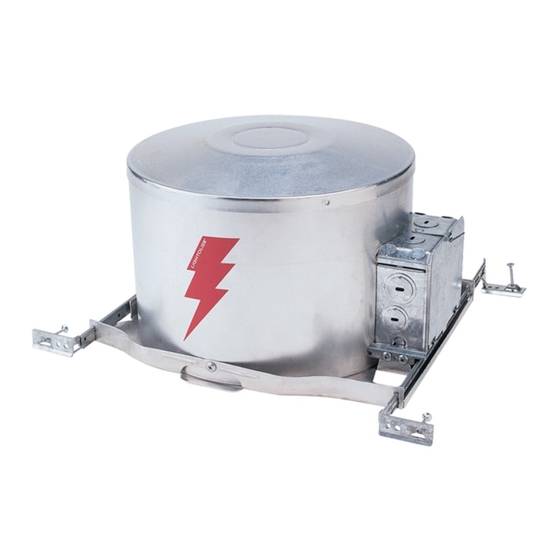

Features
1. Housing: .032" (#20 ga.) aluminum. UL listed for direct contact with thermal
insulation. AirSeal ® housing minimizes air leak-age to less than 2 CFM at
1.57 PSF (or 75pa), which complies with Model Energy Code (Section 602.3.3)
and Washington State Energy Code (Section 502.4) and reduces heat loss and
condensation in ceiling. Access door for inspection of junction box.
2. Mounting Frame: .032 (#20 ga.) aluminum. Accommodates ceilings up to 1"
thick. 3/8" deep integral lip. Locks into position along length of mounting bars
with locking screw and bendable slot. Four slots are positioned 90° apart to
simplify alignment. Push-in/twist-out roto-clips hold reflector flush to ceiling.
3. Junction Box: 2" X 4" X 3 1/2" (22 cu. in.) .032" (#22 ga.) galvanized steel.
UL listed for maximum of 8 (#12 ga.) 1104IC and 6 (#12 ga.) 90°C through
branch circuit conductors. Integral cable clamps permit attachment of
non-metallic (#12 or #14 ga.) Romex
connectors.
4. Mounting Bars: .059" (#16 ga.) galvanized steel. Bars pivot for easy
attachment and wire-in below ceiling line. Bars extend to accommodate
16" to 24" O.C. joist spacing. Bars can accommodate 12" O.C joist spacing
after a slight field modification (see Instruction Sheet). 2004ICV features
integral self tapping phillips screws for secure attachment to wood or metal
construction. 2004ICVN features integral nails for secure attachment to
wood. Both attach to T-bar ceilings without the need of accessories.
5. Socket Housing: Aluminum, with lamp adjustment assembly allows 35°
max. vertical, 358° horizontal adjustment.
6. Socket: Field replaceable. Two pin socket, pre-wired with #18 SF1 leads to
junction box.
7. Thermal Protector: Meets NEC and UL requirements. Integral to
transformer. Located inside housing.
8. Transformer: Mounted inside housing, magnetic. 120V primary, nominal 12V
secondary. Removable from below.
Dimming
Dimming Controls: use only dimmers specifically designed for use with mag-
netic transformers, like Lightolier Onset
or any Lightolier Controls dimming sys-tems. Low voltage fixtures may produce
audible sound which may be objectionable in acoustically critical areas.
Lightolier is a Philips group brand
3 3/4" Aperture
2004ICVN
(Integral Nail)
2004ICV
(Integral Screw)
3
4
5
Reflector Trims — See Individual Reflector Trim Specification Sheets
Aperture Satin
Cone Cone
2012 2008
2012NM 2010
2013 2008NM
2013BKNM 2010NM
2013BK
2013CD
2013CDNM
2013NM
2013WH
2013WD
2013WDP
cable without tools or additional
®
Sunrise series LV or VA, dimmers,
® ®
Lytecaster ® Recessed Downlighting
0
®
Overall Length
2004ICV: 15 5/16"
15 5/16"
12 1/4"
13 3/4" Min.
24" Max.
Height: 7 1/4"
Ceiling Opening: 3 15/16"
Top View
Open Downlight
Baffles Slot Pinhole
2005 2006 2011
2005NM
2005WH
2005BNM
Options & Accessories
Extra-Thick Ceiling
Mounting Ring:
MR 16 Socket Replacement:
Socket for General Electric Turn
and Lock (TAL) MR16 Lamp:
Labels
UL (Type I.C., Suitable for Damp Location), I.B.E.W.
Complies with Air Leakage Requirements stated in the Model Energy Code and
the Washington State Energy Code.
AirSeal is a registered trademark of Lightolier.
®
Romex is a registered trademark of General Cable Industries Inc.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • F0711
Low Voltage AirSeal
®
Overall Width
10 3/8"
in Kit
2004ICV:
Frame-
Reflector Trim
Adjustable
Mini Eyeball Enclosed
Swivel Diffuser
2025WH 2022LV 2090LV
2026WH
1967C - up to 1 1/4" thick ceilings.
1975B
1975TAL
Type:
2004ICV
Insulated Frame-In Kit
