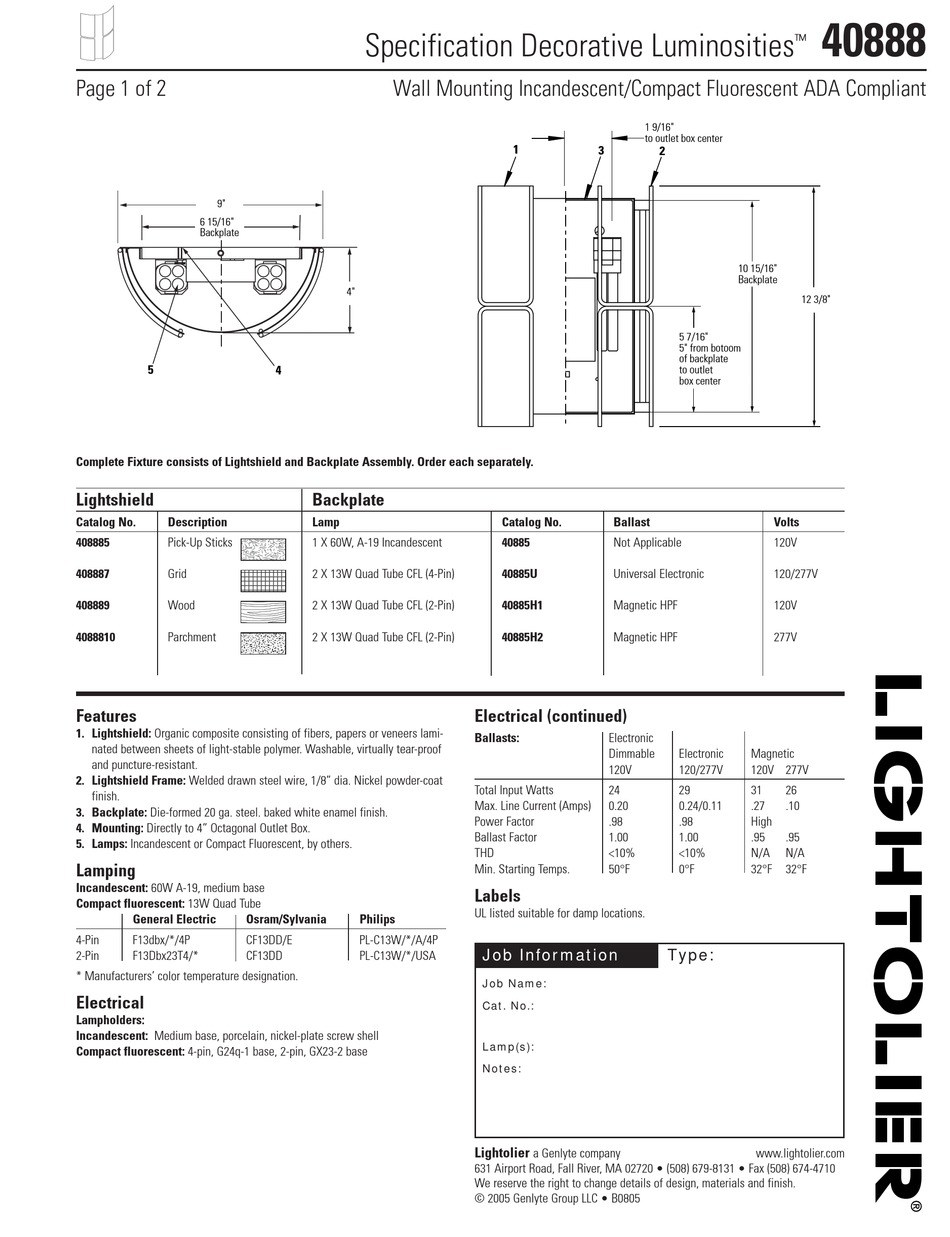

Lightolier Luminosities 40888 Specification

Page 1 of 2
9"
6 15/16"
Backplate
5
Complete Fixture consists of Lightshield and Backplate Assembly. Order each separately.
y y yy y y y y y y y y yy yy y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y yy y y y y y
yy
yy
Lightshield
Catalog No. Description
yy
408885 Pick-Up Sticks
yy yy
408887 Grid
408889 Wood
4088810 Parchment
Features
1. Lightshield: Organic composite consisting of fibers, papers or veneers lami-
nated between sheets of light-stable polymer. Washable, virtually tear-proof
and puncture-resistant.
2. Lightshield Frame: Welded drawn steel wire, 1/8" dia. Nickel powder-coat
finish.
3. Backplate: Die-formed 20 ga. steel. baked white enamel finish.
4. Mounting: Directly to 4" Octagonal Outlet Box.
5. Lamps: Incandescent or Compact Fluorescent, by others.
Lamping
Incandescent: 60W A-19, medium base
Compact fluorescent: 13W Quad Tube
General Electric Osram/Sylvania
4-Pin F13dbx/*/4P CF13DD/E
2-Pin F13Dbx23T4/* CF13DD
* Manufacturers' color temperature designation.
Electrical
Lampholders:
Incandescent: Medium base, porcelain, nickel-plate screw shell
Compact fluorescent: 4-pin, G24q-1 base, 2-pin, GX23-2 base
Specification Decorative Luminosities
Wall Mounting Incandescent/Compact Fluorescent ADA Compliant
4"
4
y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y y
Backplate
Lamp
1 X 60W, A-19 Incandescent
2 X 13W Quad Tube CFL (4-Pin)
2 X 13W Quad Tube CFL (2-Pin)
2 X 13W Quad Tube CFL (2-Pin)
Philips
PL-C13W/*/A/4P
PL-C13W/*/USA
1 9/16"
to outlet box center
1
3
Catalog No. Ballast
40885 Not Applicable
40885U Universal Electronic
40885H1 Magnetic HPF
40885H2 Magnetic HPF
Electrical (continued)
Ballasts: Electronic
Dimmable
120V
Total Input Watts 24
Max. Line Current (Amps) 0.20
Power Factor .98
Ballast Factor 1.00
THD <10%
Min. Starting Temps. 50°F
Labels
UL listed suitable for damp locations.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • B0805
40888
™
2
10 15/16"
Backplate
12 3/8"
5 7/16"
5" from botoom
of backplate
to outlet
box center
Volts
120V
120/277V
120V
277V
Electronic Magnetic
120/277V 120V 277V
29 31 26
0.24/0.11 .27 .10
.98 High
1.00 .95 .95
<10% N/A N/A
0°F 32°F 32°F
Type:
www.lightolier.com
