P L E A S E T H I N K B E F O R E Y O U P RI NT

Knowledge base

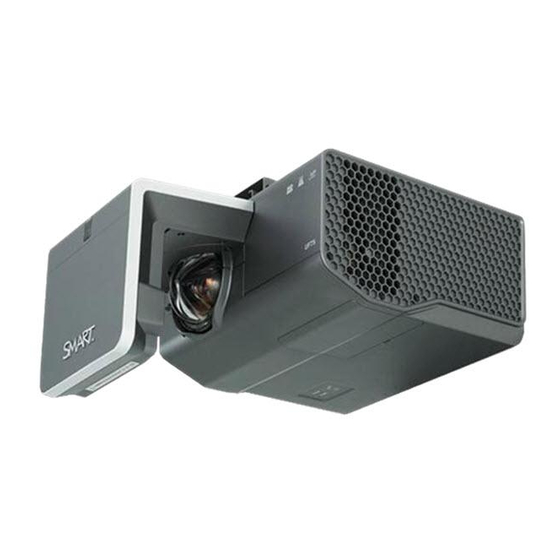

Maintaining your SMART
UF75 or UF75w projector

Cleaning the projector

WARNING
Cleaning a wall-mounted projector can result in a fall or injury. Use caution when
climbing a ladder, and consider removing the projector from its wall-mounting
bracket to clean it or to replace the projector lamp.
CAUTION
•
Never touch the mirror with your hands or a brush, and do not scrub the
surface of the mirror with the supplied cleaning cloth. Instead, use the
supplied cleaning cloth to clean the mirror gently, and do not put any cleaning
solvents on the cloth or the mirror.
•
Before you clean the projector, press the Power button twice on the Extended
Control Panel (ECP) or remote control to put the system into Standby mode,
and then allow the lamp to cool for at least 30 minutes.
•
Do not spray cleaners, solvents or compressed air directly on the projector.
Do not use spray cleaners or solvents near any part of the projector because
they can damage or stain the unit. Spraying the system could spread a
chemical mist on some of the projector's components and lamp, resulting in
poor image quality and damage to the product which may not be covered by
your warranty.
•
Do not allow liquids or commercial solvents of any kind to flow into the
projector base or head.
IMPORTANT
•
When cleaning the interactive whiteboard system:
–
Wipe the exterior of the projector with a lint-free cloth.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMART UF75 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Smart Technologies SMART UF75

Summary of Contents for Smart Technologies SMART UF75

  • Page 1: Knowledge Base

    P L E A S E T H I N K B E F O R E Y O U P RI NT Knowledge base Maintaining your SMART UF75 or UF75w projector Cleaning the projector WARNING Cleaning a wall-mounted projector can result in a fall or injury. Use caution when climbing a ladder, and consider removing the projector from its wall-mounting bracket to clean it or to replace the projector lamp.
  • Page 2 KN O W L E D G E B AS E – MA IN TAI NI NG YOU R S MAR T UF 7 5 OR U F 75 W P R O J E C T O R – If necessary, use a soft cloth moistened with a mild detergent to clean the projector housing.
  • Page 3 Wear protective eyewear while changing the lamp. Failure to do so can cause injuries including loss of eyesight if the lamp shatters or bursts. – Use only replacement lamps approved by SMART Technologies. Contact your authorized SMART reseller for replacement parts.
  • Page 4 KN O W L E D G E B AS E – MA IN TAI NI NG YOU R S MAR T UF 7 5 OR U F 75 W P R O J E C T O R If the cover is difficult to remove, insert a flat screwdriver or small coin into the slot on the bottom of the lamp cover to gently pry the cover open.
  • Page 5 KN O W L E D G E B AS E – MA IN TAI NI NG YOU R S MAR T UF 7 5 OR U F 75 W P R O J E C T O R 9. Use the same attachment to vacuum the vents on either side of the projector. To install the new lamp 1.
  • Page 6 KN O W L E D G E B AS E – MA IN TAI NI NG YOU R S MAR T UF 7 5 OR U F 75 W P R O J E C T O R 3. Access the service menu to reset the lamp hour counter. See Resetting the lamp timer in your SMART Board interactive whiteboard system user’s guide.
  • Page 7 KN O W L E D G E B AS E – MA IN TAI NI NG YOU R S MAR T UF 7 5 OR U F 75 W P R O J E C T O R Move the focus lever until it is almost in the locked position. The friction will help you to maintain control when you’re moving the projector to the desired position.
  • Page 8 KN O W L E D G E B AS E – MA IN TAI NI NG YOU R S MAR T UF 7 5 OR U F 75 W P R O J E C T O R To adjust the vertical Loosen or tighten the lower screws on the projector mounting plate, turning both keystone of the projected screws equally a quarter or half turn at a time.

  • Page 9: Resetting The Lamp Timer

    KN O W L E D G E B AS E – MA IN TAI NI NG YOU R S MAR T UF 7 5 OR U F 75 W P R O J E C T O R To center the projected If the image is off center, use a wrench to turn the adjustment screw on the image mounting base.
  • Page 10 © 2011 SMART Technologies ULC. All rights reserved. SMART Board, smarttech, the SMART logo and all SMART taglines are trademarks or registered trademarks of SMART Technologies ULC in the U.S. and/or other countries. All third-party product and company names may be...
