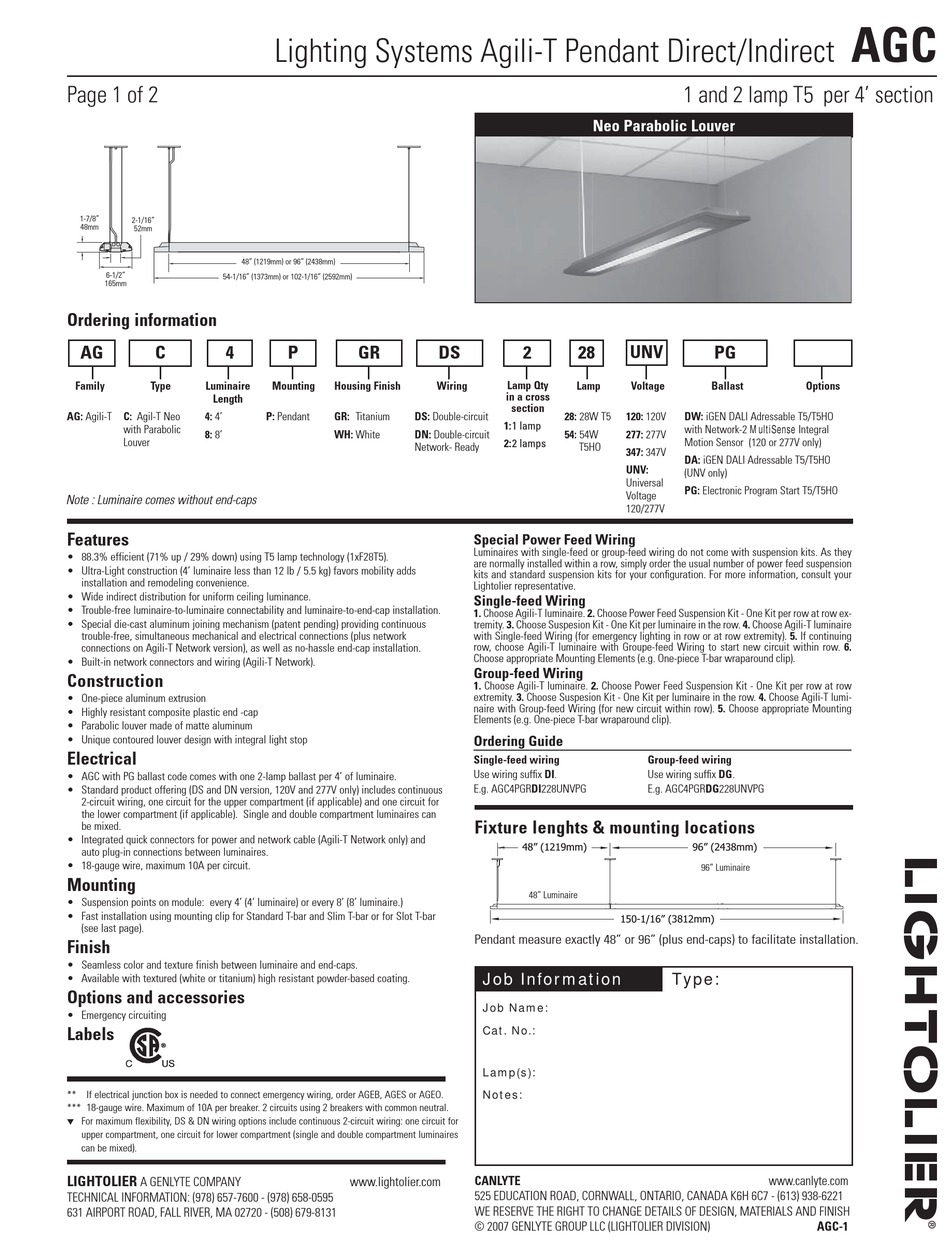

Lightolier AGC Specification

Page 1 of 2
1-7/8"
2-1/16"
1-7/8"
48mm 2-1/16"
52mm
48" (1219mm) or 96" (2438mm)
6-1/2"
6-1/2"
54-1/16" (1373mm) or 102-1/16" (2592mm)
165mm
Ordering information
AG C 4
Family Type Luminaire
Length
AG: Agili-T C: Agil-T Neo 4: 4'
with Parabolic
8: 8'
Louver
Note : Luminaire comes without end-caps
Features
• 88.3% efficient (71% up / 29% down) using T5 lamp technology (1xF28T5).
• Ultra-Light construction (4' luminaire less than 12 lb / 5.5 kg) favors mobility adds
installation and remodeling convenience.
• Wide indirect distribution for uniform ceiling luminance.
• Trouble-free luminaire-to-luminaire connectability and luminaire-to-end-cap installation.
• Special die-cast aluminum joining mechanism (patent pending) providing continuous
trouble-free, simultaneous mechanical and electrical connections (plus network
connections on Agili-T Network version), as well as no-hassle end-cap installation.
• Built-in network connectors and wiring (Agili-T Network).
Construction
• One-piece aluminum extrusion
• Highly resistant composite plastic end -cap
• Parabolic louver made of matte aluminum
• Unique contoured louver design with integral light stop
Electrical
• AGC with PG ballast code comes with one 2-lamp ballast per 4' of luminaire.
• Standard product offering (DS and DN version, 120V and 277V only) includes continuous
2-circuit wiring, one circuit for the upper compartment (if applicable) and one circuit for
the lower compartment (if applicable). Single and double compartment luminaires can
be mixed.
• Integrated quick connectors for power and network cable (Agili-T Network only) and
auto plug-in connections between luminaires.
• 18-gauge wire, maximum 10A per circuit.
Mounting
• Suspension points on module: every 4' (4' luminaire) or every 8' (8' luminaire.)
• Fast installation using mounting clip for Standard T-bar and Slim T-bar or for Slot T-bar
(see last page).
Finish
• Seamless color and texture finish between luminaire and end-caps.
• Available with textured (white or titanium) high resistant powder-based coating.

Options and accessories

• Emergency circuiting
Labels
** If electrical junction box is needed to connect emergency wiring, order AGEB, AGES or AGEO.
*** 18-gauge wire. Maximum of 10A per breaker. 2 circuits using 2 breakers with common neutral.
For maximum flexibility, DS & DN wiring options include continuous 2-circuit wiring: one circuit for
▼
upper compartment, one circuit for lower compartment (single and double compartment luminaires
can be mixed).
LIGHTOLIER
A GENLYTE COMPANY
TECHNICAL INFORMATION: (978) 657-7600 - (978) 658-0595
631 AIRPORT ROAD, FALL RIVER, MA 02720 - (508) 679-8131
Lighting Systems Agili-T Pendant Direct/Indirect
48"
54-1/16"
P GR DS
Mounting Housing Finish Wiring
P: Pendant GR: Titanium DS: Double-circuit
WH: White DN: Double-circuit
Network- Ready
www.lightolier.com
Neo Parabolic Louver
2 28 UNV
Lamp Qty
Lamp Voltage
in a cross
section
28: 28W T5 120: 120V
1: 1 lamp
54: 54W 277: 277V
2: 2 lamps
T5HO
347: 347V
UNV:
Universal
Voltage
120/277V
Special Power Feed Wiring
Luminaires with single-feed or group-feed wiring do not come with suspension kits. As they
are normally installed within a row, simply order the usual number of power feed suspension
kits and standard suspension kits for your confi guration. For more information, consult your
Lightolier representative.
Single-feed Wiring
1. Choose Agili-T luminaire. 2. Choose Power Feed Suspension Kit - One Kit per row at row ex-
tremity. 3. Choose Suspesion Kit - One Kit per luminaire in the row. 4. Choose Agili-T luminaire
with Single-feed Wiring (for emergency lighting in row or at row extremity). 5. If continuing
row, choose Agili-T luminaire with Groupe-feed Wiring to start new circuit within row. 6.
Choose appropriate Mounting Elements (e.g. One-piece T-bar wraparound clip).
Group-feed Wiring
1. Choose Agili-T luminaire. 2. Choose Power Feed Suspension Kit - One Kit per row at row
extremity. 3. Choose Suspesion Kit - One Kit per luminaire in the row. 4. Choose Agili-T lumi-
naire with Group-feed Wiring (for new circuit within row). 5. Choose appropriate Mounting
Elements (e.g. One-piece T-bar wraparound clip).
Ordering Guide
Single-feed wiring Group-feed wiring
Use wiring suffi x DI. Use wiring suffi x DG.
E.g. AGC4PGRDI228UNVPG E.g. AGC4PGRDG228UNVPG
Fixture lenghts & mounting locations
48" (1219mm)
48" Luminaire
150-1/16" (3812mm)
Pendant measure exactly 48" or 96" (plus end-caps) to facilitate installation.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
CANLYTE
525 EDUCATION ROAD, CORNWALL, ONTARIO, CANADA K6H 6C7 - (613) 938-6221
WE RESERVE THE RIGHT TO CHANGE DETAILS OF DESIGN, MATERIALS AND FINISH
© 2007 GENLYTE GROUP LLC (LIGHTOLIER DIVISION)
1 and 2 lamp T5 per 4' section
PG
Ballast Options
DW: iGEN DALI Adressable T5/T5HO
with Network-2 MultiSense Integral
Motion Sensor (120 or 277V only)
DA: iGEN DALI Adressable T5/T5HO
(UNV only)
PG: Electronic Program Start T5/T5HO
96" (2438mm)
96" Luminaire
Type:
www.canlyte.com
AGC-1
AGC
